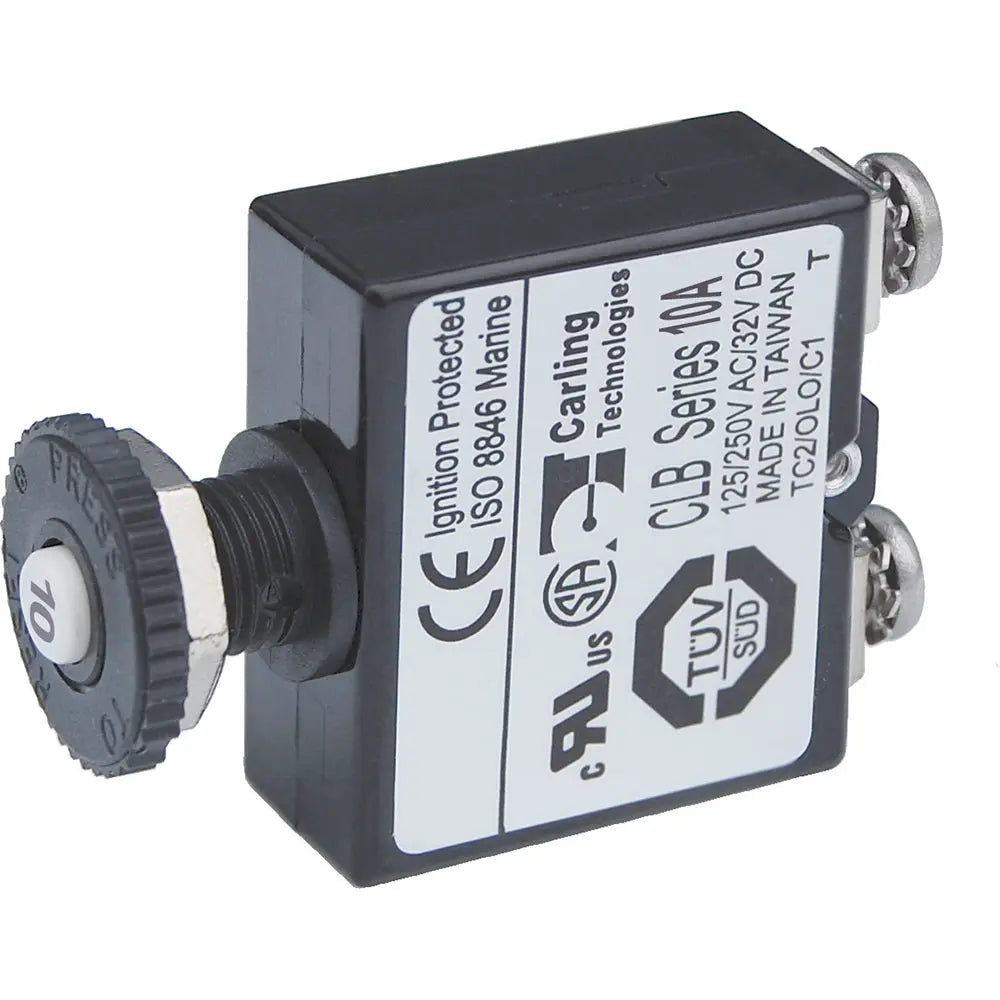

Blue Sea Systems 2132 Push Button Reset Screw Terminal Circuit Breaker - 10 Amps

• Branch circuit breakers (can also be used for 24-hour circuit protection)

• Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels

• Compact design enables high density circuit protection configurations

• Push-to-reset operation

• "Trip Free" design cannot be held "ON" during fault current condition

• Ignition protected - Safe for installation aboard gasoline powered boats

• Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking

• Amperage: 10A

• Maximum Voltage: 32V DC

• Mounting: Panel Mount 3/8-27 UNS

• Circuit Breaker Type: Thermal trip, manual push-button reset only

• Terminal Type: #8 Screw

• Interrupt Capacity: 3000A @ 14.7V / 2500A @ 28V

• Minimum Operating Temperature: -10 C

• Maximum Operating Temperature: 60 C

• Screw Terminal Torque: 6 in-lb (0.68 Nm)

• Weight: 0.09lb (0.04 kg)

  WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 2132 push button reset screw terminal circuit breaker provides reliable 10-amp protection for your electrical system. Designed for straightforward panel mounting, this thermal trip circuit breaker features a manual push-to-reset operation, ensuring quick restoration after a fault condition. Its compact form factor allows for high-density wiring configurations, making it ideal for marine, RV, and other vehicle applications where space efficiency is critical. The breaker's

Features:

• Branch circuit protection suitable for 24-hour operation or intermittent use

• Quick connect terminal style compatible with Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels

• Compact design facilitates high-density circuit protection configurations

• Push-to-reset operation for easy manual reset after trips

• "Trip Free" design prevents the breaker from being held "ON" during fault conditions

• Ignition protected, suitable for installation aboard gasoline-powered boats

• Optional waterproof boot protects the breaker in wet environments, replacing dress nut mounting and resisting cracking and discoloration
