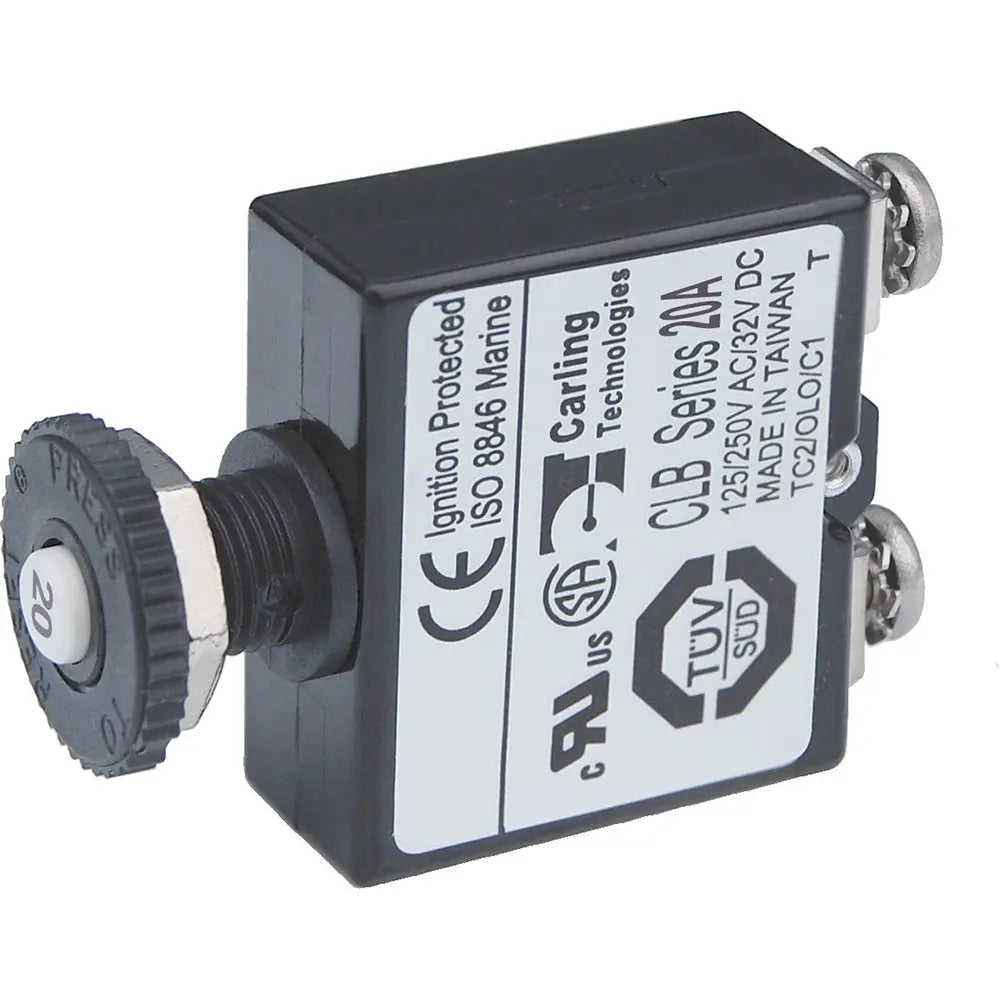

Blue Sea Systems 2134 Push Button Reset Screw Terminal Circuit Breaker – 20 Amps, Waterproof, Panel Mount

• Branch circuit breakers (can also be used for 24-hour circuit protection)

• Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels

• Compact design enables high density circuit protection configurations

• Push-to-reset operation

• "Trip Free" design cannot be held "ON" during fault current condition

• Ignition protected - Safe for installation aboard gasoline powered boats

• Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking

• Amperage: 20A

• Maximum Voltage: 32V DC

• Mounting: Panel Mount 3/8-27 UNS

• Circuit Breaker Type: Thermal trip, manual push-button reset only

• Terminal Type: #8 Screw

• Interrupt Capacity: 3000A @ 14.7V / 2500A @ 28V

• Minimum Operating Temperature: -10 C

• Maximum Operating Temperature: 60 C

• Screw Terminal Torque: 6 in-lb (0.68 Nm)

• Weight: 0.09lb (0.04 kg)

  WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 2134 Push Button Reset Only Screw Terminal Circuit Breaker is designed for reliable circuit protection in demanding marine and industrial environments. With a durable thermal trip mechanism and a manual push-button reset, this circuit breaker ensures quick and easy reset after tripping, providing peace of mind during fault conditions. Its compact design allows for high-density installations, making it ideal for panel mounting in tight spaces on boats, RVs, or other equipment where space efficiency is critical. The breaker’s screw terminal connections provide secure wiring, with recommended torque of 6 inch-pounds, ensuring stable electrical connections in demanding conditions.

Features:

• Branch circuit breaker suitable for 24-hour circuit protection

• Quick connect terminal style for easy installation in WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels

• Compact design supports high-density circuit protection configurations

• Push-to-reset operation for quick recovery after tripping

• "Trip Free" design prevents the breaker from remaining ON during a fault condition

• Ignition protected, safe for installation aboard gasoline-powered boats

• Optional waterproof boot protects the breaker in wet environments and resists discoloration and cracking
