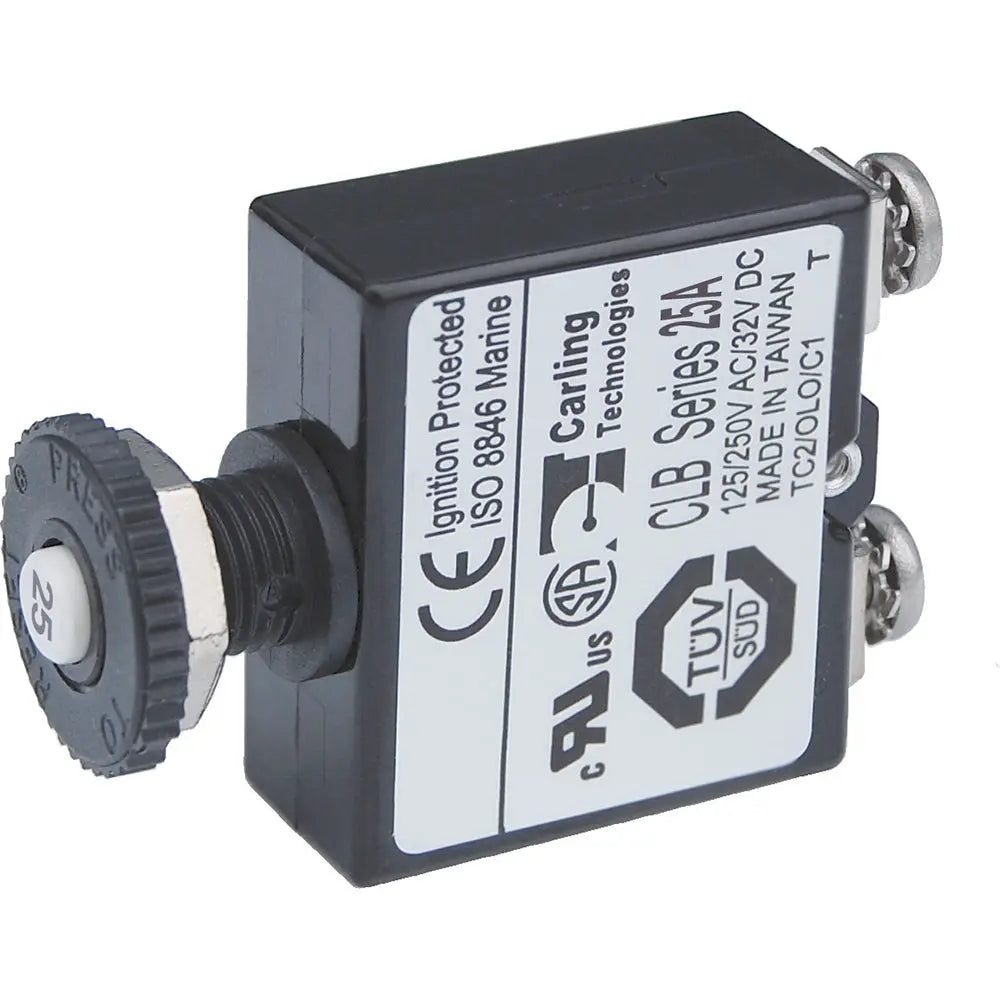

Blue Sea Systems 2135 Push Button Reset Screw Terminal Circuit Breaker - 25 Amps

• Branch circuit breakers (can also be used for 24-hour circuit protection)

• Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels

• Compact design enables high density circuit protection configurations

• Push-to-reset operation

• "Trip Free" design cannot be held "ON" during fault current condition

• Ignition protected - Safe for installation aboard gasoline powered boats

• Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking

• Amperage: 25A

• Maximum Voltage: 32V DC

• Mounting: Panel Mount 3/8-27 UNS

• Circuit Breaker Type: Thermal trip, manual push-button reset only

• Terminal Type: #8 Screw

• Interrupt Capacity: 3000A @ 14.7V / 2500A @ 28V

• Minimum Operating Temperature: -10 C

• Maximum Operating Temperature: 60 C

• Screw Terminal Torque: 6 in-lb (0.68 Nm)

• Weight: 0.09lb (0.04 kg)

  WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 2135 circuit breaker provides reliable protection for your electrical system with a 25-amp rating and a maximum voltage of 32V DC. Designed for panel mounting, it features a compact form factor ideal for high-density circuit configurations in marine and automotive applications. Its thermal trip mechanism ensures dependable operation, while the push-to-reset operation allows for quick and easy reset after a trip. The breaker's "Trip Free" design prevents it from being held "ON" during fault conditions, enhancing safety and system integrity.
Built with a #8 screw terminal, this circuit breaker can be securely installed on panels using 3/8-27 UNS mounting hardware. The terminal torque of 6 in-lb ensures proper electrical contact without damaging the device. It offers a high interrupt capacity of 3000A at 14.7V and 2500A at 28V, making it suitable for demanding electrical circuits. The breaker is ignition protected, making it safe for installation on gasoline-powered boats, and its waterproof boot option provides added protection in wet environments, replacing traditional dress nut mounting.
Designed to operate reliably in temperatures ranging from -10°C to 60°C, the Blue Sea Systems 2135 ensures consistent performance across various environmental conditions. Its lightweight design, weighing only about 0.09 pounds, makes it suitable for space-constrained applications where durability and safety are paramount. This circuit breaker is a versatile choice for marine, RV, and automotive electrical systems requiring reliable circuit protection with easy reset functionality.

Features:

• Branch circuit protection with 25A amperage and 32V DC maximum voltage

• Quick connect terminal style compatible with WeatherDeck Waterproof Circuit Breaker Panels and Distribution Panels

• Compact design enabling high density circuit configurations

• Push-to-reset operation for quick and simple resetting after trips

• "Trip Free" design prevents holding the breaker "ON" during fault conditions

• Ignition protected for safe installation aboard gasoline-powered vessels

• Optional waterproof boot offers enhanced protection in wet environments, replacing dress nut mounting
