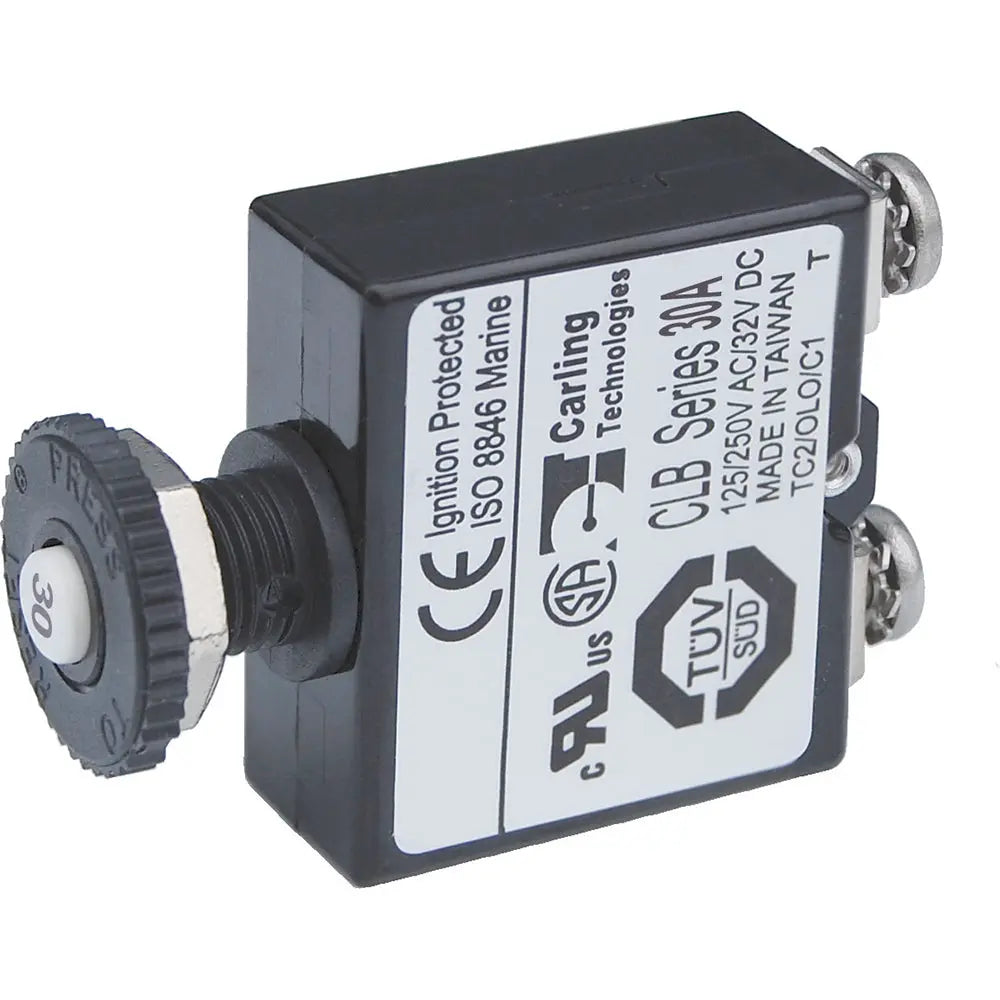

Blue Sea Systems 2136 Push Button Reset Screw Terminal Circuit Breaker - 30 Amps

• Branch circuit breakers (can also be used for 24-hour circuit protection)

• Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels

• Compact design enables high density circuit protection configurations

• Push-to-reset operation

• "Trip Free" design cannot be held "ON" during fault current condition

• Ignition protected - Safe for installation aboard gasoline powered boats

• Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking

• Amperage: 30A

• Maximum Voltage: 32V DC

• Mounting: Panel Mount 3/8-27 UNS

• Circuit Breaker Type: Thermal trip, manual push-button reset only

• Terminal Type: #8 Screw

• Interrupt Capacity: 3000A @ 14.7V / 2500A @ 28V

• Minimum Operating Temperature: -10 C

• Maximum Operating Temperature: 60 C

• Screw Terminal Torque: 6 in-lb (0.68 Nm)

• Weight: 0.09lb (0.04 kg)

  WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 2136 push button reset circuit breaker is a reliable 30 Amp thermal trip device designed for DC applications up to 32 volts. Its panel-mount design with #8 screw terminals ensures secure and straightforward installation, making it ideal for various marine and industrial electrical systems. The push-to-reset operation allows for quick and easy manual reset after a trip, ensuring minimal downtime during fault conditions. Its 'Trip Free' feature prevents the breaker from remaining 'ON' during a fault, enhancing safety and system protection. The breaker is ignition protected, making it safe for installation aboard gasoline-powered boats and other combustible environments. An optional waterproof boot is available to safeguard the circuit breaker in wet or corrosive environments, providing additional protection against moisture, dirt, and mechanical damage. This compact breaker can be integrated into high-density circuit protection configurations such as WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels, offering versatile applications across marine, RV, and industrial settings.

Features:

• Branch circuit breaker suitable for 24-hour circuit protection

• Quick connect terminal style for easy installation in various panels

• Compact design enables high-density circuit protection configurations

• Push-to-reset operation for quick and convenient system resets

• Trip Free design prevents holding the breaker 'ON' during faults

• Ignition protected for safe installation aboard gasoline-powered vessels

• Optional waterproof boot protects against moisture, dirt, and environmental damage

• Screw terminal connection with torque specification for secure wiring
