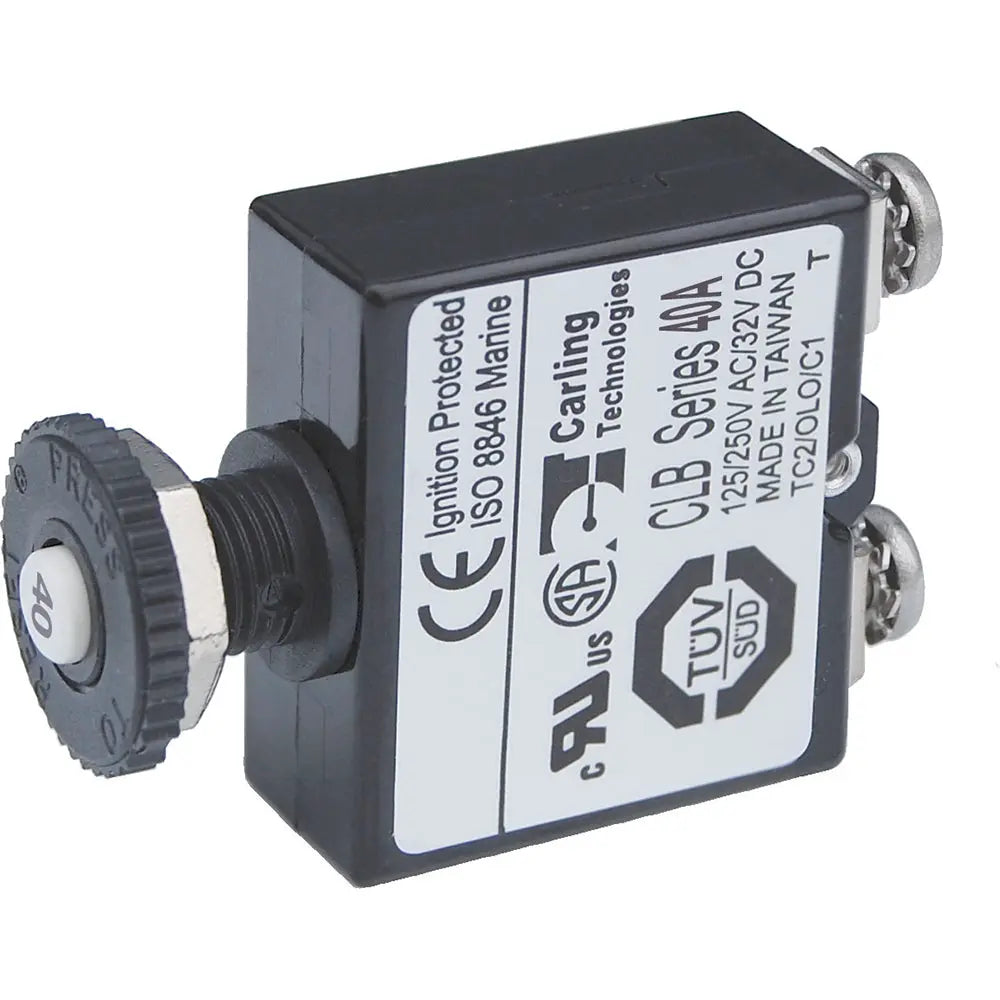

Blue Sea Systems 2137 Push Button Reset Screw Terminal Circuit Breaker - 40 Amps

• Branch circuit breakers (can also be used for 24-hour circuit protection)

• Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels

• Compact design enables high density circuit protection configurations

• Push-to-reset operation

• "Trip Free" design cannot be held "ON" during fault current condition

• Ignition protected - Safe for installation aboard gasoline powered boats

• Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking

• Amperage: 40A

• Maximum Voltage: 32V DC

• Mounting: Panel Mount 3/8-27 UNS

• Circuit Breaker Type: Thermal trip, manual push-button reset only

• Terminal Type: #8 Screw

• Interrupt Capacity: 3000A @ 14.7V / 2500A @ 28V

• Minimum Operating Temperature: -10 C

• Maximum Operating Temperature: 60 C

• Screw Terminal Torque: 6 in-lb (0.68 Nm)

• Weight: 0.09lb (0.04 kg)

  WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 2137 is a reliable 40 Amp push button reset circuit breaker designed for marine and other DC power applications. Featuring a compact panel mount design, this thermal trip circuit breaker offers high-density circuit protection suitable for various distribution panels and battery banks. Its quick connect terminal style simplifies installation and maintenance, making it an ideal choice for space-constrained environments. The push-to-reset operation ensures easy manual resetting after trips, while the "Trip Free" design prevents the breaker from being held "ON" during fault conditions, enhancing safety and system integrity. This circuit breaker is ignition protected, making it safe for installation aboard gasoline-powered boats, and includes an optional waterproof boot for wet environment protection that resists discoloration and cracking. The breaker’s terminal screws are rated for 6 in-lb torque, ensuring secure electrical connections and consistent performance. With a maximum voltage of 32V DC and interrupt capacity of 3000A at 14.7V, the Blue Sea Systems 2137 provides robust protection for your electrical systems in demanding conditions. Its low weight and durable construction make it suitable for various marine, RV, and industrial applications, maintaining safety and functionality in challenging environments.

Features:

• Branch circuit breaker suitable for 24-hour circuit protection

• Quick connect terminal style for easy installation into Blue Sea Systems WeatherDeck Waterproof Panels and distribution panels

• Compact design allows high-density circuit protection configurations

• Push-to-reset operation for convenient manual resetting

• "Trip Free" design prevents holding the breaker "ON" during fault conditions

• Ignition protected for safe installation aboard gasoline-powered boats

• Optional waterproof boot provides environmental protection and resistance to discoloration and cracking

• Screw terminal with 6 in-lb torque for secure electrical connections

• Maximum voltage of 32V DC with interrupt capacity up to 3000A
