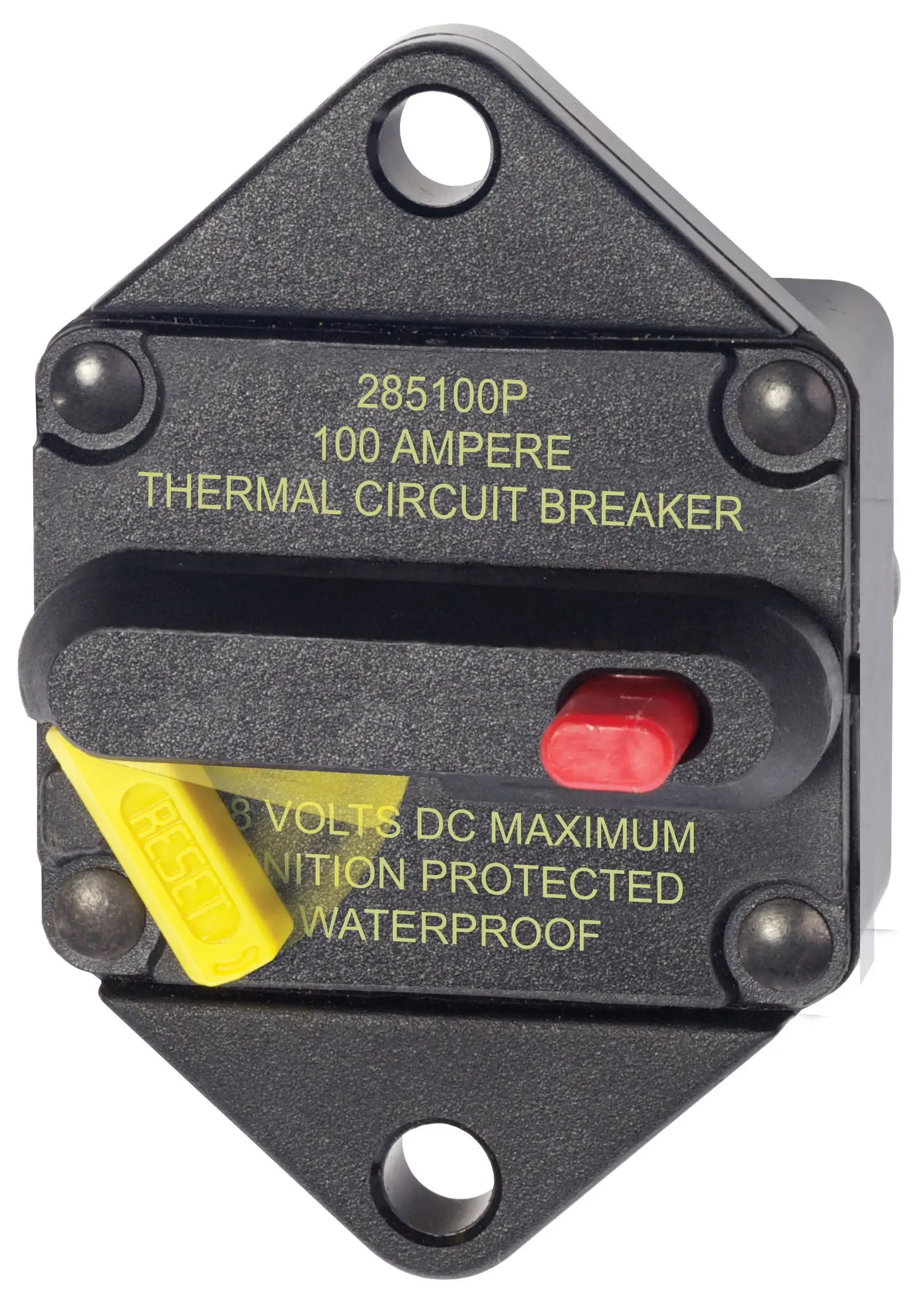

Blue Sea Systems 285-Series 100 Amp Panel Mount Circuit Breaker - Model 7087-BSS

Blue Sea 285-Series 100 Amp Circuit Breaker Panel Mount

The Blue Sea Systems 285-Series 100 Amp Circuit Breaker (Model 7087-BSS) is designed for reliable protection and switching in marine electrical systems. This panel mount circuit breaker offers a seamless replacement for the older 185-Series units, ensuring compatibility and ease of installation. Its visible reset lever allows operators to quickly identify open conditions, enhancing safety and maintenance efficiency. The breaker is ignition protected, meeting SAE J1171 external ignition protection standards, making it safe for installation aboard gasoline-powered boats. Its weather-resistant construction ensures durability in harsh marine environments, while combining switching and circuit breaker functions into a single unit for streamlined control. The trip-free design prevents the breaker from being held closed after tripping, providing an added safety feature for critical systems.

Features:

• Drop-in replacement for 185-Series Circuit Breakers

• Visible reset lever indicates open circuit condition

• Ignition protected, compliant with SAE J1171 standards

• Weather-resistant for marine environments

• Integrated switching and circuit breaker functions

• Trip-free operation prevents manual hold-closed after trip

• Surface mount design for easy installation

• Thermally responsive bi-metal blade trip mechanism

• Accepts M6 terminal studs, compatible with 1/4 inch ring terminals

• Maximum Voltage: 48V DC, with a 3000A interrupt capacity
