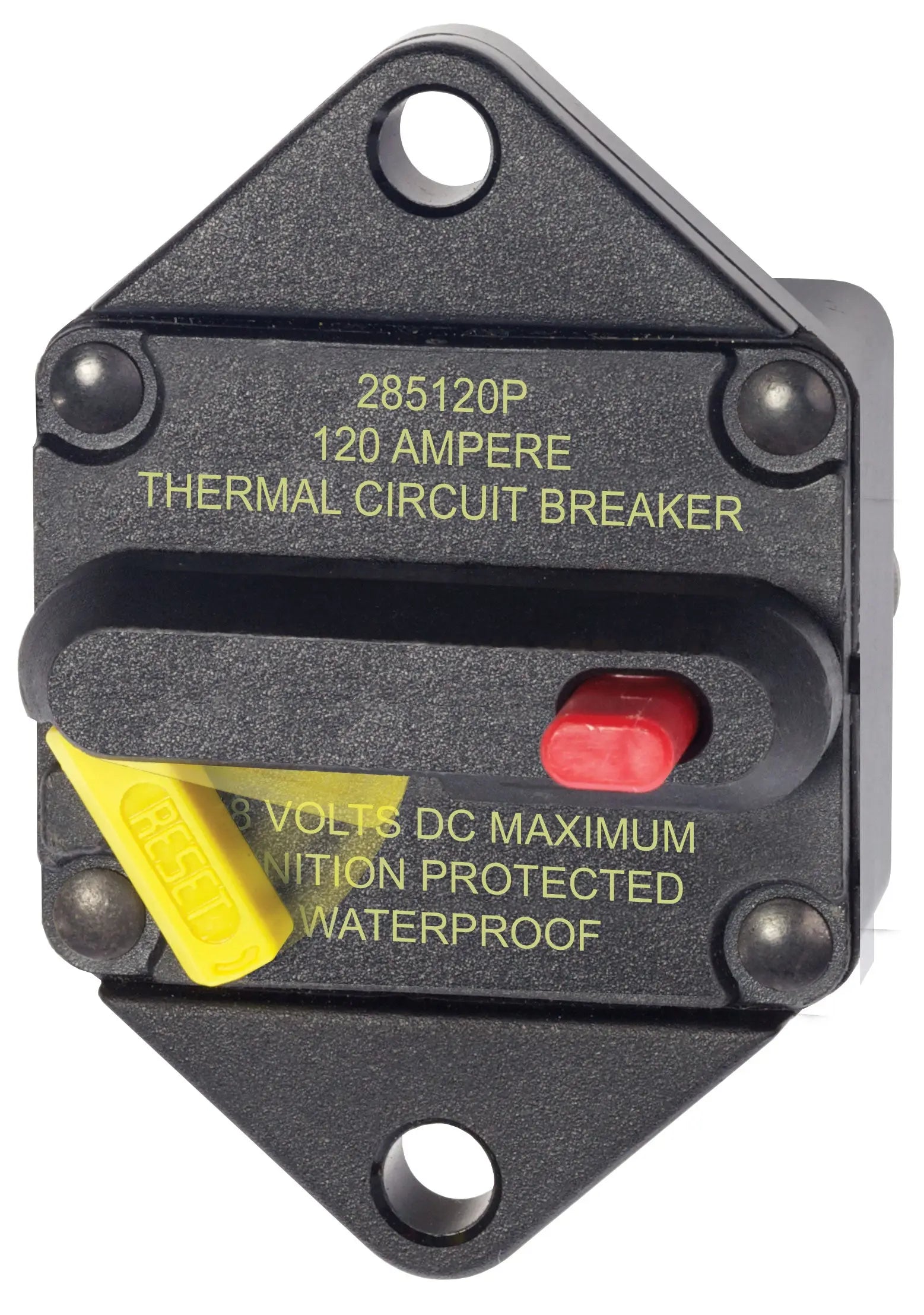

Blue Sea Systems 285-Series 120 Amp Panel Mount Circuit Breaker - Model 7088-BSS

Blue Sea 285-Series 120 Amp Circuit Breaker Panel Mount

The Blue Sea Systems 285-Series 120 Amp Panel Mount Circuit Breaker (Model 7088-BSS) offers a reliable solution for marine electrical systems. Designed as a drop-in replacement for the 185-Series circuit breakers, this unit ensures seamless installation and compatibility. Its visible reset lever allows operators to quickly identify whether the breaker is in an open or closed state, enhancing safety and troubleshooting efficiency.
Constructed with weather-resistant materials, the breaker is suitable for demanding marine environments. It meets SAE J1171 external ignition protection standards, making it ignition protected and safe for installation aboard gasoline-powered boats. The device combines switching and circuit breaker functions into a single unit, reducing the need for additional components, though it should not be used as a switch where high inrush currents are expected. The trip-free design ensures the breaker cannot be held closed after tripping, providing an added safety feature.
Designed to operate with a maximum voltage of 48V DC, the breaker has a robust interrupt capacity of 3,000 amps at 48 volts, ensuring safe disconnection under fault conditions. It mounts easily on a surface and utilizes an M6 terminal stud that accepts 1/4-inch ring terminals, with a torque specification of 60 in-lb. The thermally responsive bi-metal blade ensures precise protection, and the breaker withstands temperatures ranging from -40°C to 85°C, suitable for a wide range of marine environments. This circuit breaker is classified as Type III, featuring manual reset and switchable operation, making it a dependable component for marine electrical systems.
Incorporate the Blue Sea Systems 285-Series 120 Amp Circuit Breaker for durable, safe, and efficient circuit protection on your boat or marine vessel, ensuring reliable operation across various environmental conditions.

Features:

• Drop-in replacement for 185-Series circuit breakers

• Visible reset lever indicates open condition

• Ignition protected and meets SAE J1171 standards

• Weather-resistant construction for marine environments

• Combines switching and circuit breaker functions into one unit

• Trip-free design prevents holding the breaker closed after trip

• Maximum voltage of 48V DC with 3,000A interrupt capacity

• Surface mounting with M6 terminal stud accepting 1/4-inch ring terminals

• Operates effectively in temperatures from -40°C to 85°C

• Type III switchable, manual reset circuit breaker
