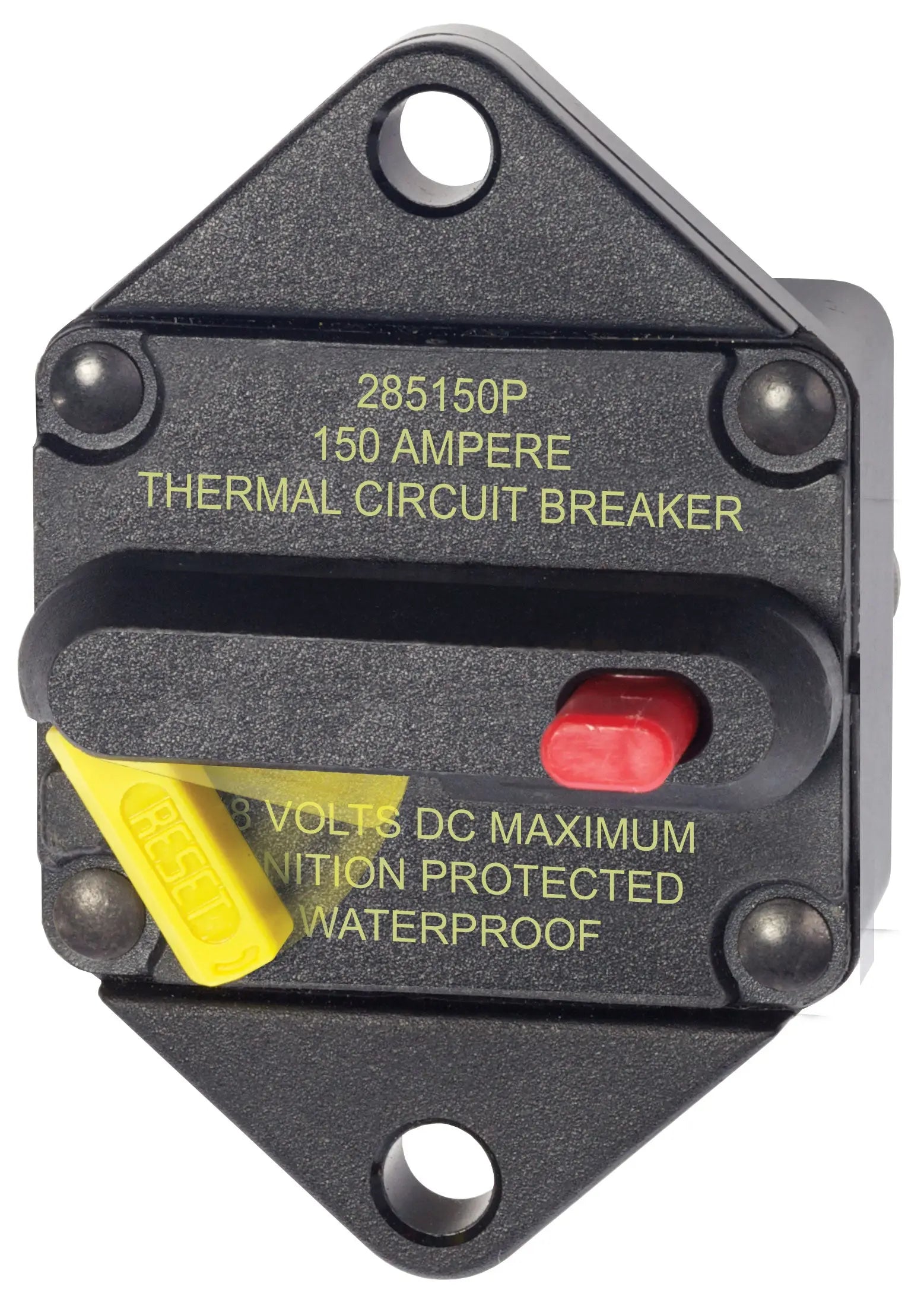

Blue Sea Systems 285-Series 150 Amp Panel Mount Circuit Breaker - Model 7089-BSS

Blue Sea 285-Series 150 Amp Circuit Breaker Panel Mount

The Blue Sea Systems 285-Series Circuit Breaker, part number 7089-BSS, is designed for reliable protection and switching in marine electrical systems. This panel-mount breaker is rated for 150 amps and supports a maximum voltage of 48V DC, making it suitable for various boat and RV applications. Its thermally responsive bi-metal blade ensures precise circuit interruption, enhancing safety and system integrity. The breaker features a visible reset lever that indicates an open condition, allowing for easy troubleshooting and maintenance. Weather-resistant construction ensures durability in harsh marine environments, while its ignition protection compliance (SAE J1171) guarantees safe installation aboard gasoline-powered vessels. The breaker combines switching and circuit protection functions into a single unit, streamlining wiring and reducing component clutter. It is designed for surface mounting with M6 terminal studs, capable of accepting 1/4-inch ring terminals, and has a terminal stud torque of 60 in-lb, ensuring secure connections. The circuit breaker is trip-free, meaning it cannot be held closed after tripping, which prevents accidental re-energizing of a faulted circuit. Suitable for applications requiring robust circuit protection, the Blue Sea Systems 285-Series breaker is an essential component for marine electrical systems where safety, reliability, and ease of maintenance are priorities. Its design adheres to Type III circuit breaker standards, providing manual reset and switchable operation for added control.

Features:

• Drop-in replacement for 185-Series Circuit Breakers

• Visible reset lever indicates open condition

• Ignition protected, suitable for gasoline-powered boats

• Meets SAE J1171 external ignition protection standards

• Weather-resistant construction for marine durability

• Combines switching and circuit breaker function into one unit

• Trip-free design prevents holding the breaker closed after trip

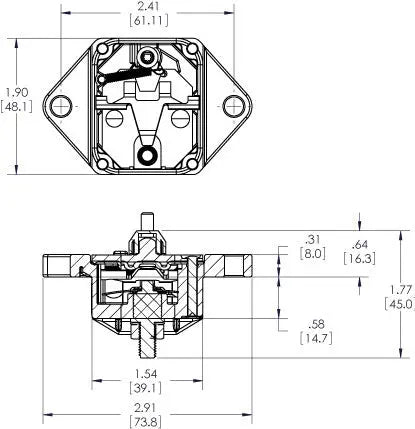

• Surface mounting with M6 terminal studs for secure connections

• Accepts 1/4 inch ring terminals for wiring flexibility

• Rated for 150 amps at 48V DC with 3000A interrupt capacity
