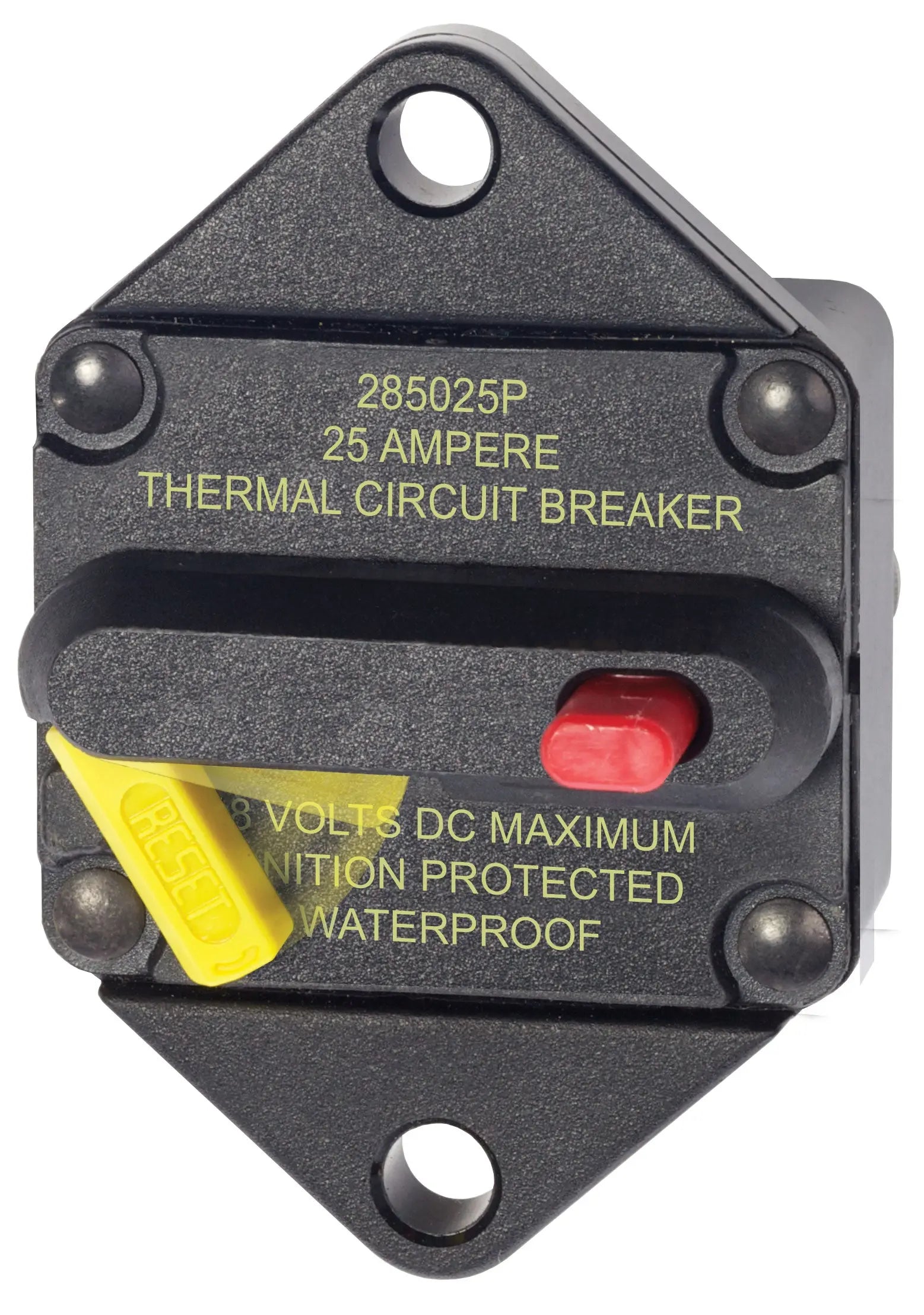

Blue Sea Systems 285-Series 25 Amp Circuit Breaker Panel Mount (Part #7080-BSS)

Blue Sea 285-Series 25 Amp Circuit Breaker Panel Mount

The Blue Sea Systems 285-Series Circuit Breaker, model 7080-BSS, is a reliable 25-amp panel mount device designed for marine applications. This circuit breaker combines switching and circuit protection functions into one compact unit, simplifying installation and reducing clutter. Its weather-resistant construction ensures durability in harsh marine environments, while the visible reset lever allows for quick and easy identification of the open condition. The breaker is ignition protected and meets SAE J1171 external ignition protection standards, making it safe for installation aboard gasoline-powered boats. The thermally responsive bi-metal blade design provides reliable trip functionality, and the breaker is trip free, meaning it cannot be held closed after tripping, ensuring safety during fault conditions. Its surface mount design enables straightforward installation, and the terminal studs are rated for 60 inch-pounds of torque, compatible with 1/4-inch ring terminals. With an interrupt capacity of 3000 amps at 48V DC, this breaker can handle high fault currents, providing peace of mind for critical marine electrical systems. Operating effectively across a temperature range from -40°C to 85°C, the Blue Sea 285-Series breaker is built to perform reliably in diverse conditions. Please note that it should not be used as a switch where high inrush currents are expected. This breaker is an ideal replacement for 185-Series circuit breakers, offering enhanced features and durability for marine electrical systems, ensuring safety and performance on the water.

Features:

• Drop-in replacement designed for easy upgrade from 185-Series circuit breakers

• Visible reset lever clearly indicates open circuit condition

• Ignition protected and meets SAE J1171 standards for safe installation on gasoline-powered boats

• Weather-resistant construction suitable for marine environments

• Combines switching and circuit breaker functions into a single unit for space-saving installation

• Trip free design ensures breaker cannot be held closed after tripping

• Surface mount installation for straightforward setup

• Rated for 25 amps and 48V DC with a 3000A interrupt capacity

• Accepts 1/4-inch ring terminals with M6 terminal studs rated for 60 in-lb torque

• Operates reliably across a temperature range from -40°C to 85°C
