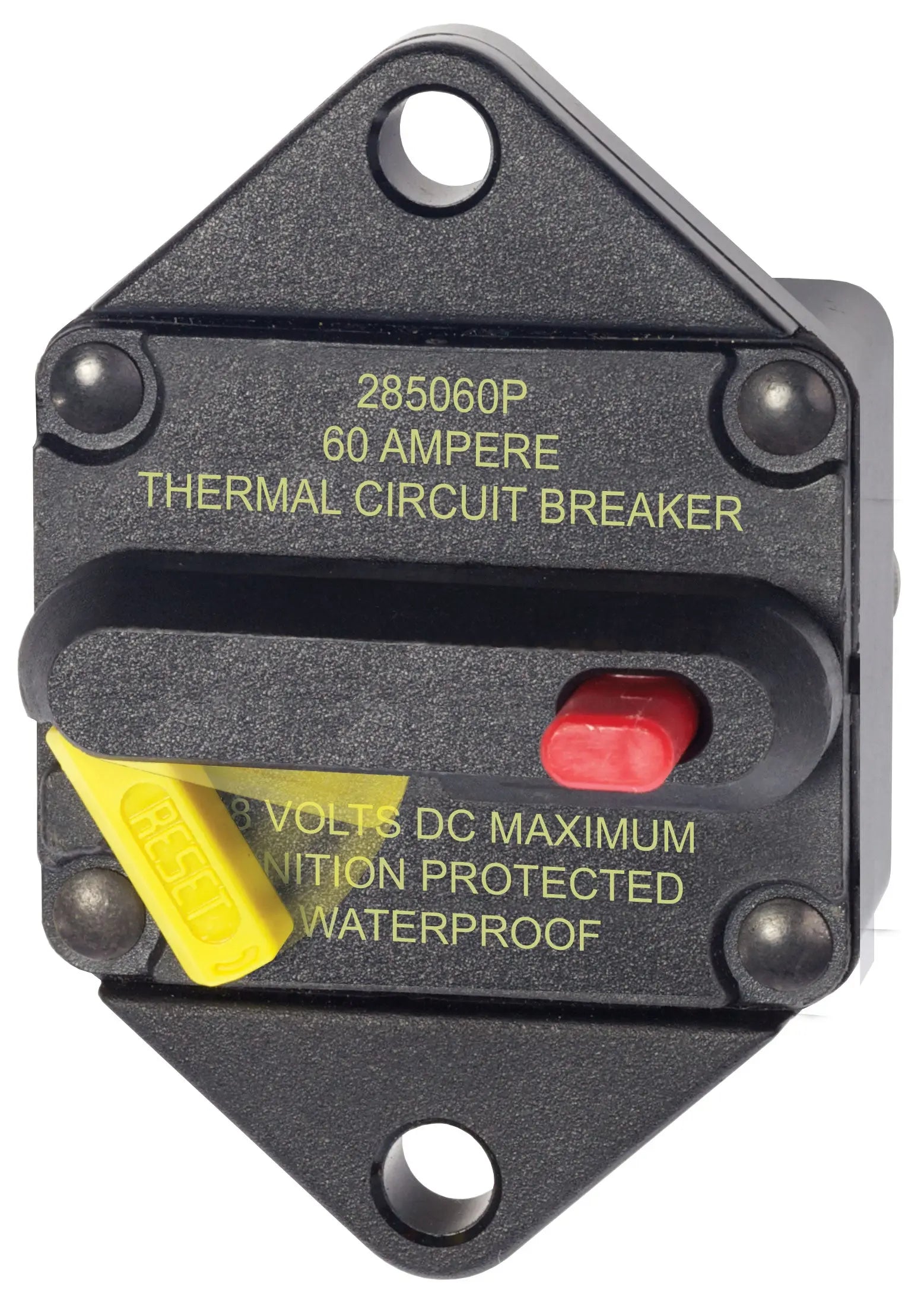

Blue Sea Systems 285-Series 60 Amp Circuit Breaker Panel Mount - Model 7084-BSS

Blue Sea 285-Series 60 Amp Circuit Breaker Panel Mount

The Blue Sea Systems 7084-BSS 285-Series circuit breaker is a reliable and weather-resistant solution designed for marine applications. With a 60-amp capacity and a maximum voltage of 48V DC, this circuit breaker provides essential protection for your electrical systems onboard gasoline-powered boats. Its panel-mount design ensures secure installation, and the thermally responsive bi-metal blade offers precise trip operation. The visible reset lever allows quick identification of an open circuit condition, enhancing safety and ease of maintenance. This model is a drop-in replacement for the 185-Series circuit breakers, making upgrades straightforward without additional modifications. The product meets SAE J1171 external ignition protection standards, making it ignition protected and safe for use in environments with gasoline engines. Additionally, its weather-resistant construction ensures durability in harsh marine conditions, while the integrated switching and circuit breaker functions streamline system design. The trip-free feature prevents the breaker from being held closed after tripping, ensuring reliable fault clearance. The terminal stud accepts 1/4 inch ring terminals and requires a torque of 60 in-lb for secure connections. Suitable for a wide range of marine electrical systems, this breaker combines safety, durability, and convenience in a compact form factor, making it an ideal choice for boat builders and marine technicians alike.

Features:

• Drop-in replacement for 185-Series circuit breakers for easy upgrades

• Visible reset lever indicates open circuit condition for quick diagnostics

• Ignition protected and compliant with SAE J1171 standards for safe marine installation

• Weather-resistant construction ensures durability in harsh marine environments

• Combines switching and circuit breaker functions into a single unit for streamlined wiring

• Trip-free operation prevents the breaker from remaining closed after a trip for enhanced safety

• Surface mounting design facilitates straightforward installation

• Maximum voltage of 48V DC with a 60A current capacity for robust electrical protection

• Accepts 1/4 inch ring terminals with M6 terminal studs and specified torque for secure connections

• Designed to operate reliably between -40°C and 85°C
