SKU:BSS7180

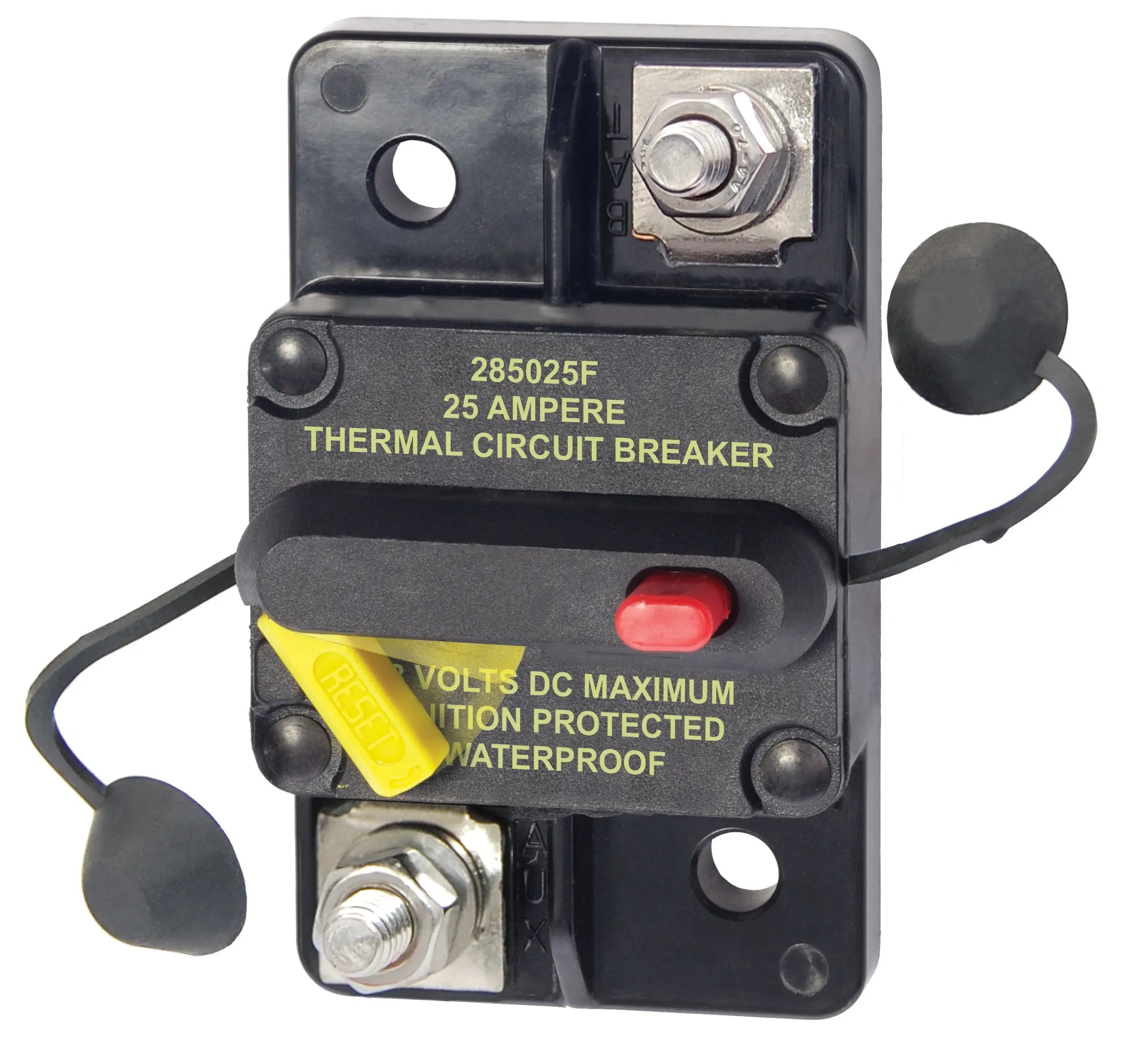

The Blue Sea Systems 285-Series 25 Amp Circuit Breaker (Part Number 7180-BSS) is a reliable and weather-resistant solution designed for marine applications. This surface mount circuit breaker functions as both a switch and circuit protection device, providing a streamlined and space-efficient component for your boat's electrical system. Its thermally responsive bi-metal blade ensures precise trip operation, preventing damage from electrical overloads and short circuits. The visible reset lever allows for quick identification of the breaker’s status, showing when it is in the open position after a trip. This feature simplifies troubleshooting and maintenance, ensuring your electrical system remains protected and easily manageable.
Built to meet SAE J1171 external ignition protection standards, the Blue Sea 285-Series breaker is ignition protected, making it safe for installation aboard gasoline-powered vessels. Its weather-resistant design ensures durability in harsh marine environments, withstanding exposure to moisture, salt, and varying temperatures. The breaker’s maximum voltage rating of 48V DC and interrupt capacity of 3000A at 48V make it suitable for a wide range of marine electrical systems. It accepts M6 terminal studs, compatible with 1/4 inch ring terminals, with a torque specification of 60 in-lb for secure connections. The breaker is rated for operation between -40°C and 85°C, offering flexibility in diverse conditions.
Designed as a drop-in replacement for 185-Series circuit breakers, the Blue Sea 285-Series combines switching and circuit protection into a single, efficient unit. While it provides a trip-free mechanism—meaning it cannot be held closed after tripping—it is not intended for use as a high inrush current switch. Overall, this breaker offers a robust, safe, and efficient solution for marine electrical systems, ensuring reliable circuit protection with easy operation and maintenance.
Features:
