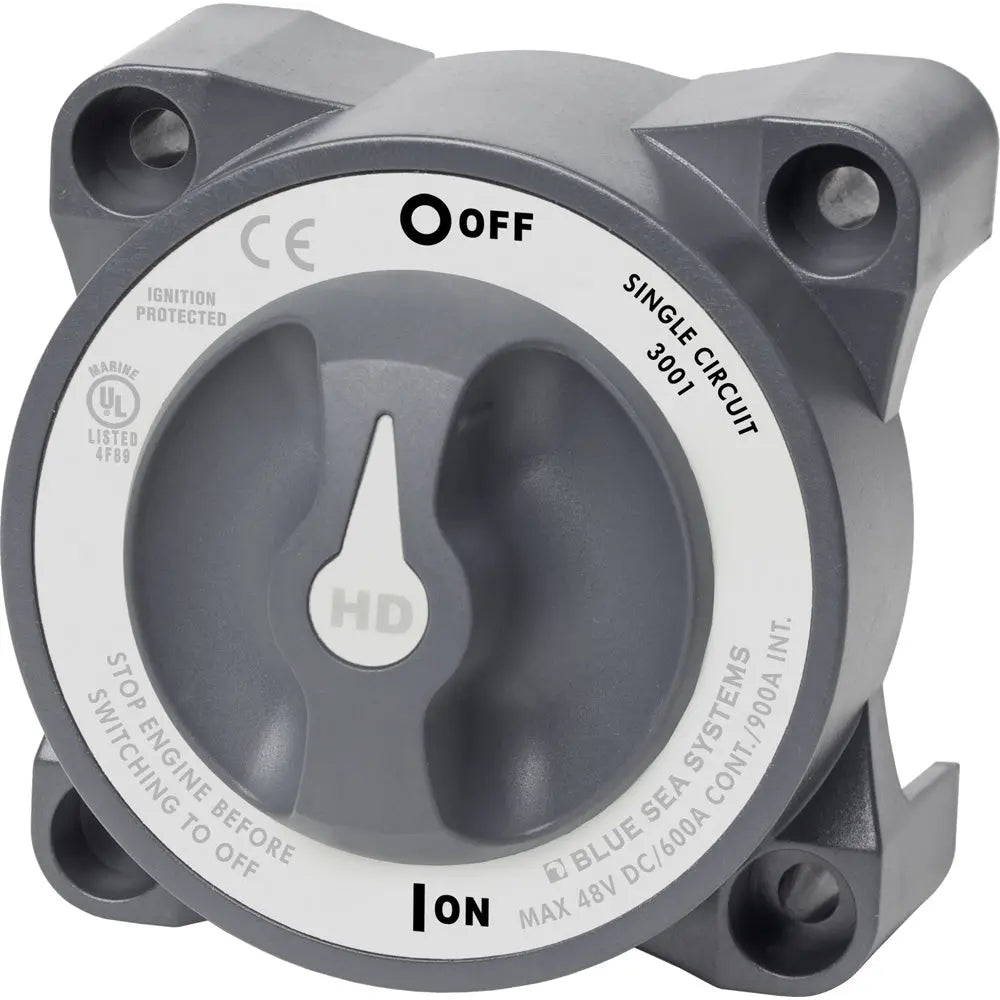

Blue Sea Systems 3001 HD-Series Battery Switch Single Circuit ON/OFF with AFD

3001 HD-Series Battery Switch Single Circuit ON/OFFwith AFD

Features:

• 600 Ampere Continuous Rating

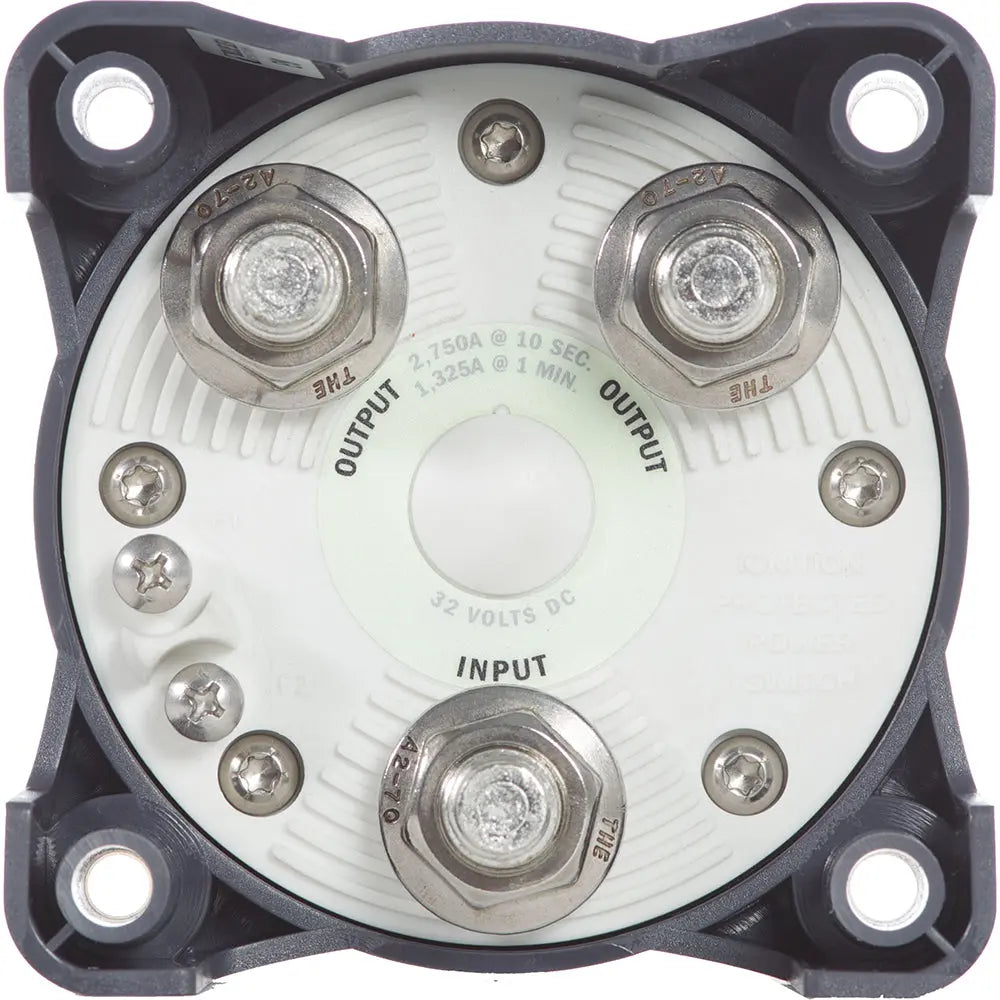

• Accepts two 4/0 battery cables per terminal
• Ignition protected - safe for installation aboard gasoline powered boats
• .870" (22.01mm) stud length to accept multiple cable terminals
• 1/2" (M12) Tin-plated copper studs for maximum conductivity and corrosion resistance
• Meets American Boat and Yacht Council (ABYC) requirements for battery switches
• Tactile textures indicate knob position by feel only

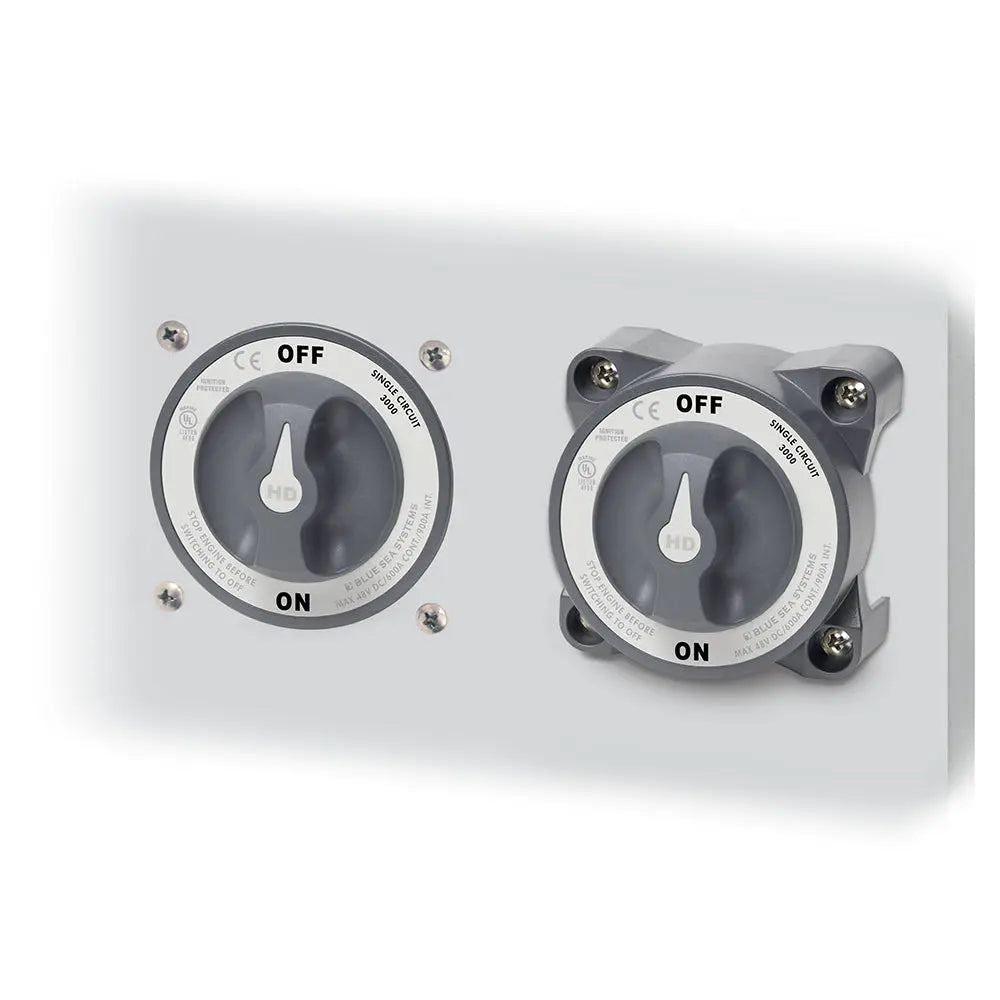

• Case design allows surface or rear panel mounting
• Fits all Perko and Guest low amperage battery switch hole patterns


WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 3001 HD-Series Battery Switch is designed to provide reliable power switching for marine applications. With a continuous rating of 600 amps, this switch is capable of handling high current loads typically encountered in boat electrical systems. It accepts two 4/0 battery cables per terminal, ensuring secure and efficient connections for your power source. The ignition-protected design makes it safe for installation on gasoline-powered boats, reducing the risk of ignition hazards in marine environments. The switch features a stud length of .870 inches (22.01mm) to accommodate multiple cable terminals, along with 1/2 inch (M12) tin-plated copper studs that offer maximum conductivity and corrosion resistance, enhancing durability in harsh conditions. This switch complies with American Boat and Yacht Council (ABYC) standards, ensuring it meets industry safety and quality requirements. The tactile textured knob allows users to easily determine the switch position by feel, facilitating quick operation even in low visibility conditions. Its versatile case design supports both surface and rear panel mounting, offering flexible installation options. Additionally, the switch is compatible with all Perko and Guest low amperage battery switch hole patterns, making it a versatile choice for various marine electrical setups. Please note that this product contains chemicals known to the State of California to cause cancer and reproductive harm; for more information, visit P65Warnings.ca.gov. For detailed installation instructions and safety information, refer to the owner's manual available online.

Features:

• 600 Ampere continuous rating for high current capacity

• Accepts two 4/0 battery cables per terminal for secure connections

• Ignition protected design suitable for gasoline-powered boats

• Stud length of .870 inches (22.01mm) to accommodate multiple cable terminals

• 1/2 inch (M12) tin-plated copper studs for enhanced conductivity and corrosion resistance

• Meets ABYC safety and quality standards for marine battery switches

• Tactile textured knob for easy position identification by feel

• Supports surface or rear panel mounting for flexible installation

• Compatible with all Perko and Guest low amperage switch hole patterns
