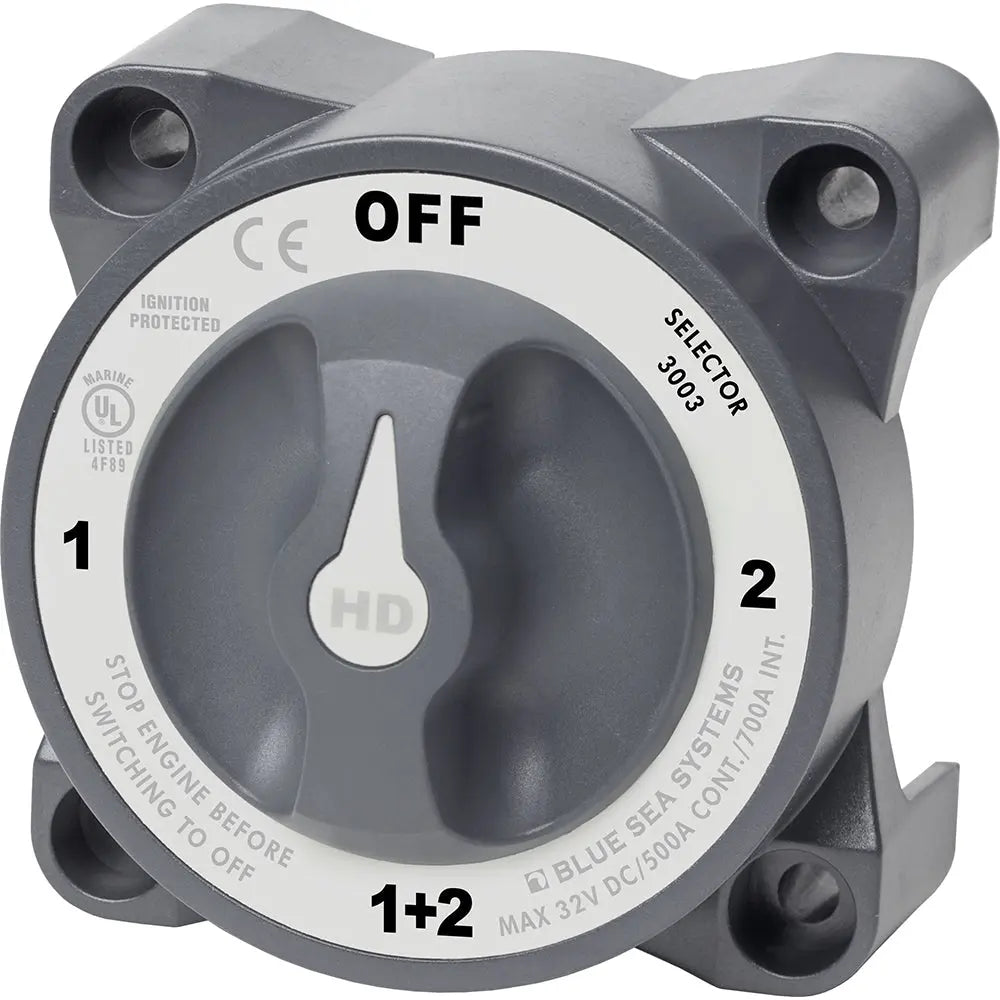

Blue Sea Systems 3003 HD-Series Battery Switch Selector with Alternator Field Disconnect

3003 HD-Series Battery Switch Selector with Alternator Field Disconnect

Features:

• 500 Ampere Continuous Rating
• Accepts 4/0 battery cables
• Ignition protected - safe for installation aboard gasoline powered boats
• .870" (22.01mm) stud length to accept 4 or more cable terminals

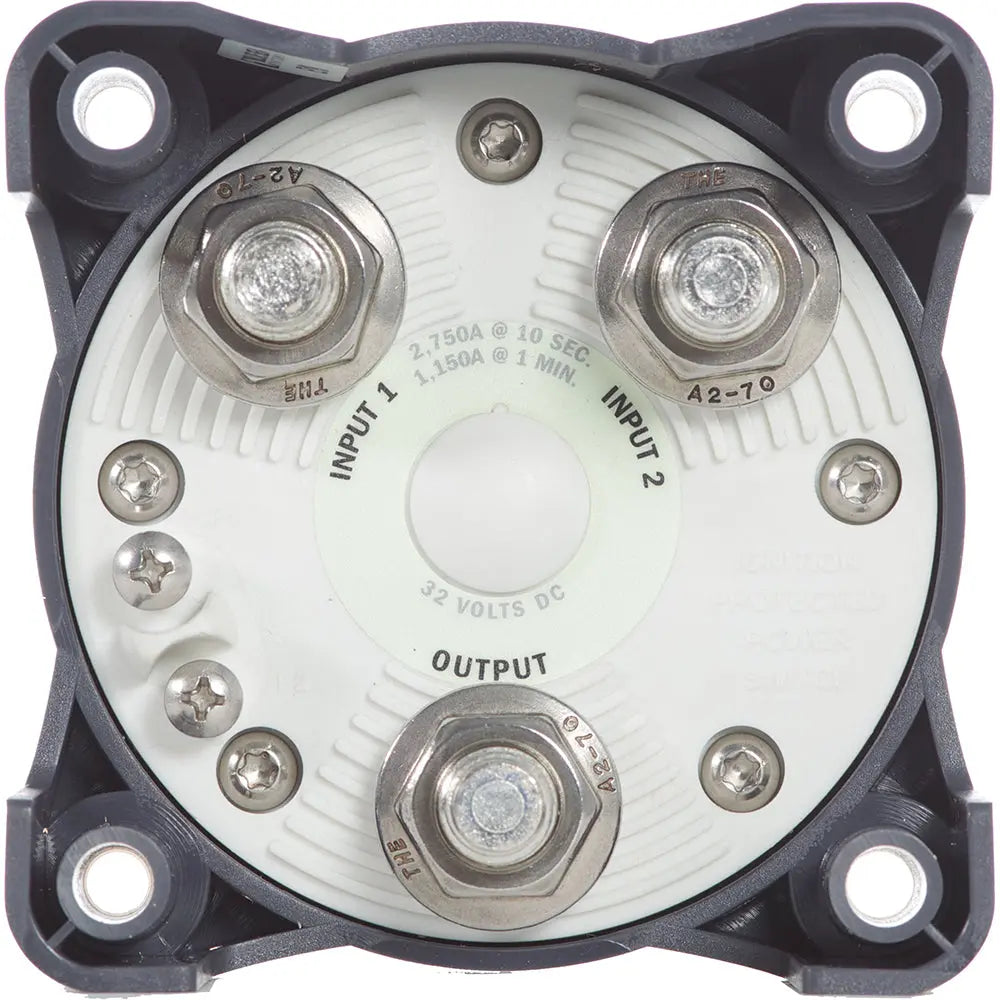

• 1/2" (M12) Tin-plated copper studs for maximum conductivity and corrosion resistance
• Meets American Boat and Yacht Council (ABYC) requirements for battery switches
• Tactile textures indicate knob position by feel only

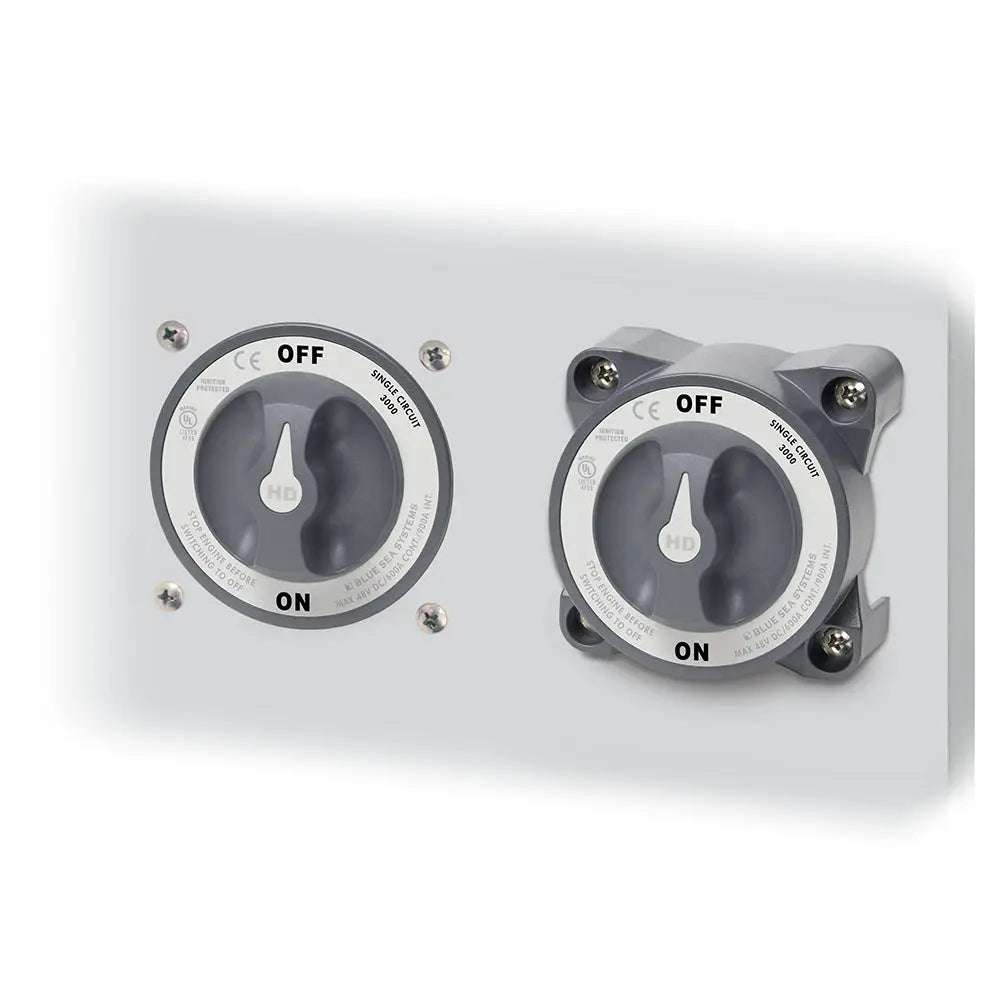

• Case design allows surface or rear panel mounting
• Fits all Perko and Guest low amperage battery switch hole patterns

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 3003 HD-Series Battery Switch Selector is engineered for reliable power management in marine applications. With a 500 Ampere continuous rating, this switch supports high-current battery configurations, ensuring your vessel's electrical system operates safely and efficiently. Designed to accept 4/0 battery cables, it provides a secure and robust connection, suitable for demanding marine environments. Its ignition-protected construction makes it safe for installation aboard gasoline-powered boats, minimizing fire risk and ensuring compliance with marine safety standards. The switch features .870 inches (22.01 mm) stud length to accommodate multiple cable terminals, facilitating versatile wiring options. Equipped with 1/2-inch (M12) tin-plated copper studs, it offers maximum conductivity and excellent corrosion resistance, vital for enduring harsh marine conditions. This switch meets the American Boat and Yacht Council (ABYC) requirements for battery switches, ensuring it adheres to industry safety and performance standards. Tactile textures on the knob allow for easy operation by feel, enabling quick identification of the switch position even in low-light conditions. The case design allows versatile mounting options, suitable for surface or rear panel installation, and it fits all Perko and Guest low amperage battery switch hole patterns, providing compatibility with a wide range of marine electrical setups. Please note the warning regarding chemical exposure related to DEHP, a chemical used in some components, and refer to the provided manual for detailed installation instructions. This durable and versatile battery switch ensures safe, reliable power control for your boat's electrical system, making it an essential component for marine safety and performance.

Features:

• 500 Ampere continuous rating supports high-current applications

• Accepts 4/0 battery cables for secure connections

• Ignition protected design suitable for gasoline-powered boats

• .870 inches (22.01 mm) stud length accommodates multiple cable terminals

• 1/2-inch (M12) tin-plated copper studs provide maximum conductivity and corrosion resistance

• Meets ABYC standards for marine battery switches

• Tactile textured knob enables operation by feel

• Surface or rear panel mounting capability

• Compatible with all Perko and Guest low amperage switch patterns
