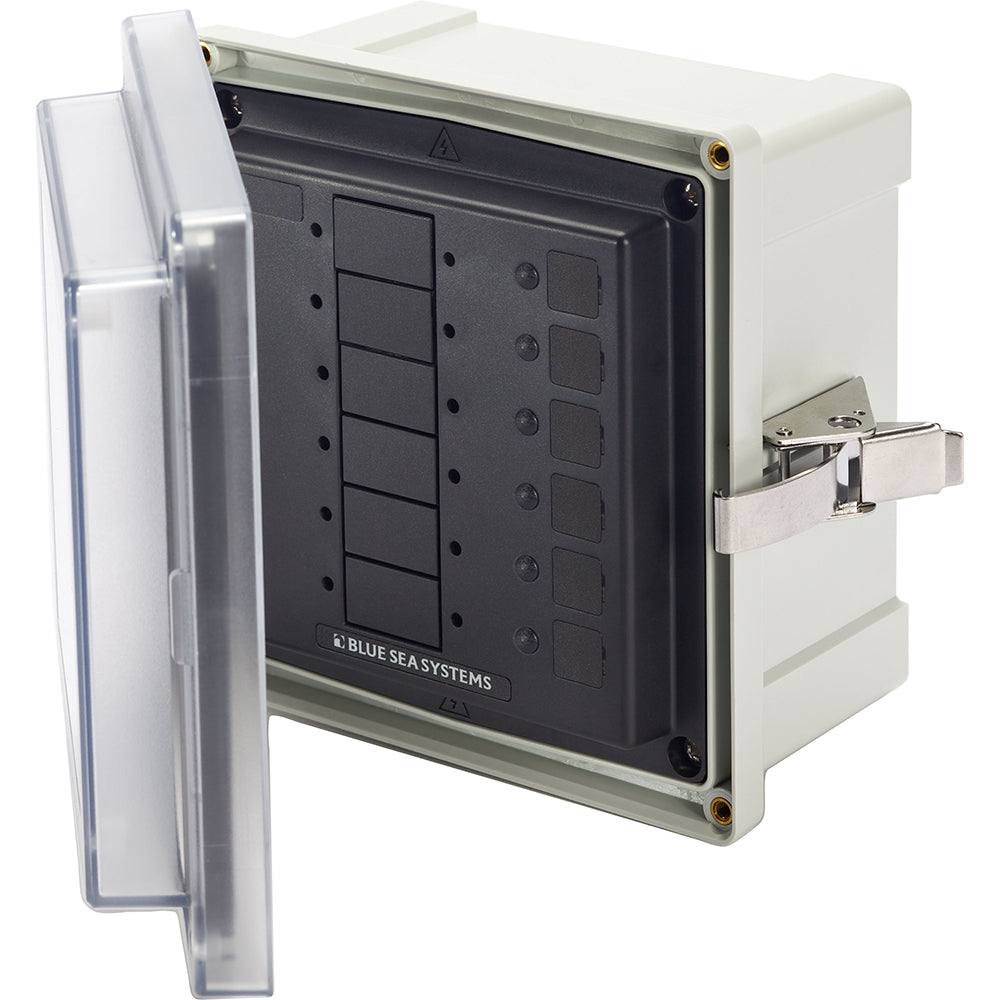

Blue Sea Systems 3113 SMS Panel Enclosure with 6 Blank Circuits for Marine Electrical Systems

3113 - SMS Panel Enclosure with 6 Blank Circuits

The 3113 panel enclosure is built for main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10' of AC shore power inlet.

Features:

• Blank apertures for custom breaker loading
• Glass filled polycarbonate mounting box
• Clear cover allows easy view of circuit breaker status
• Overlapping cover for strength and increased gasket protection
• Oversized, formed in place seamless PUR gasket
• Easily removable stainless steel hinge pin for unobstructed installation
• Stainless steel latch secures cover without penetrating the enclosure
• Blank circuit positions accommodate Carling Technologies A- and C- Series Flat Rocker and ELCI Main circuit breakers

Technical Specifications:

• Dimensions (Overall) (H x W x D) - 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm)
• Dimensions (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm)
• LEDs Installed - 1 x Red (Reverse Polarity - 230V AC and 3 x Green ON (230V AC)

In the Box:

• 3123 Enclosure
• Mounting hardware
• Instruction manual

*Sold as an Individual

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 3113 SMS Panel Enclosure is designed for main circuit breakers and large frame devices, making it ideal for marine electrical applications. Crafted from durable glass-filled polycarbonate, this enclosure provides robust protection and clear visibility of circuit breaker status through its transparent cover. Its overlapping cover design enhances strength and gasket protection, ensuring reliable performance even in demanding environments. The oversized, formed-in-place seamless PUR gasket offers additional sealing, preventing water ingress and maintaining safety standards. The enclosure features easily removable stainless steel hinge pins for straightforward installation and a stainless steel latch that secures the cover without penetrating the enclosure, preserving its integrity.

This panel enclosure accommodates blank apertures for custom breaker configurations, including Carling Technologies A- and C-Series Flat Rocker and ELCI Main circuit breakers. It meets ABYC E-11 standards when used with an ELCI Main circuit breaker and is suitable for mounting within 10 feet of the AC shore power inlet, ensuring compliance with marine safety regulations. The enclosure measures approximately 7.6 inches high, 7.4 inches wide, and 4.7 inches deep, providing ample space for installation in confined spaces. It features LED indicators for reverse polarity and operational status, with one red LED and three green LEDs powered at 230V AC, aiding in quick system diagnostics.

The package includes the 3123 enclosure, mounting hardware, and an instruction manual, enabling straightforward setup and maintenance. Designed to withstand marine conditions, the Blue Sea 3113 enclosure offers a reliable solution for managing electrical circuits safely and efficiently aboard boats. Please be aware of chemical exposure warnings related to DEHP in this product, and visit P65Warnings.ca.gov for additional safety information.

Features:

• Blank apertures for custom breaker configurations

• Constructed from glass-filled polycarbonate for durability

• Clear cover facilitates easy circuit breaker status monitoring

• Overlapping cover design enhances strength and gasket protection

• Seamless PUR gasket provides reliable sealing against water ingress

• Removable stainless steel hinge pin allows easy installation

• Stainless steel latch secures the cover without penetrating the enclosure

• Accommodates Carling Technologies A- and C-Series Flat Rocker and ELCI Main circuit breakers

• Meets ABYC E-11 standards when used with an ELCI Main breaker

• LED indicators for reverse polarity and operational status
