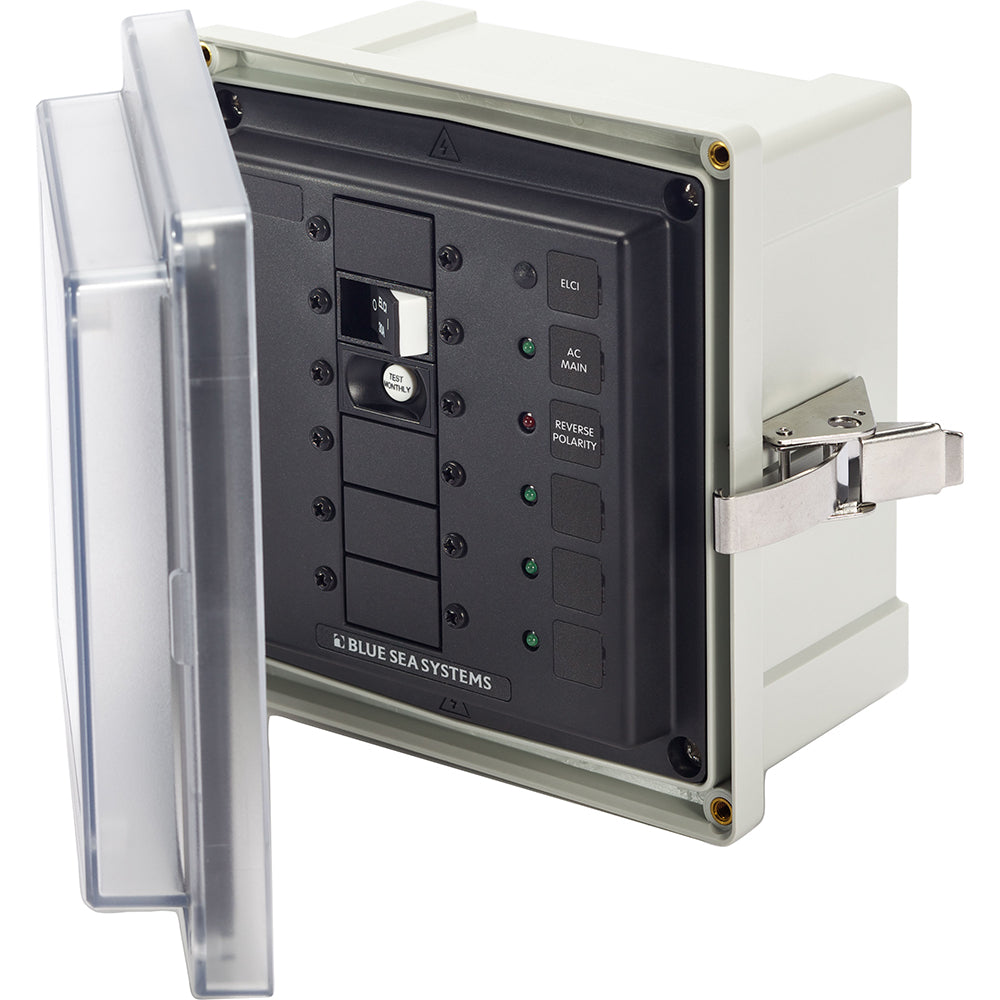

Blue Sea Systems 3116 SMS Panel Enclosure with ELCI (30A) and 3 Blanks - 120V

3116 - SMS Panel Enclosure with ELCI (30A) and 3 Blanks - 120V

The 3116 panel enclosure is built for Equipment Leakage Circuit Interrupters (ELCI) main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10' of AC shore power inlet.

Features:

• Blank apertures for custom breaker loading
• Glass filled polycarbonate base
• Clear cover allows easy view of circuit breaker status
• Overlapping cover for strength and increased gasket protection
• Oversized, formed in place seamless PUR gasket
• Easily removable stainless steel hinge pin for unobstructed installation
• Stainless steel latch secures cover without penetrating the enclosure
• Blank circuit positions accommodate Carling Technologies A and C Series Flat Rocker and ELCI Main circuit breakers
• Includes waterproof glands
• LED lights for back lighting and ON indication

Technical Specifications:

• Circuit Breaker Type - 1 x ELCI (30A) Main 120V and 3 x Blank
• Dimensions (Overall) (H x W x D) - 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm)
• Dimensions (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm)
• LEDs Installed - 1 x Red (Reverse Polarity - 120V AC and 4 x Green ON (120V AC)

In the Box:

• 3116 Enclosure
• Glands x 5
• Labels
• Mounting hardware
• Instruction manual

*Sold as an Individual

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 3116 SMS panel enclosure is designed to house Equipment Leakage Circuit Interrupters (ELCI) main circuit breakers and large frame devices. Constructed with a durable glass-filled polycarbonate base, this enclosure offers excellent strength and resistance to harsh environments. The clear cover allows for quick visual inspection of circuit breaker status, promoting safety and ease of maintenance. Its overlapping cover design enhances structural integrity and provides increased gasket protection, ensuring a waterproof seal that prevents moisture ingress. The enclosure features an oversized, seamless PUR gasket that improves sealing performance and longevity, while a removable stainless steel hinge pin facilitates straightforward installation and maintenance. Securing the cover is simple with a stainless steel latch that does not penetrate the enclosure, maintaining its waterproof integrity. The enclosure includes blank circuit positions that accommodate Carling Technologies A and C Series Flat Rocker and ELCI main circuit breakers, offering flexibility for custom configurations. Waterproof glands are included to ensure reliable wiring connections, and integrated LED lights provide backlighting and ON indication for quick status recognition. The enclosure is compliant with ABYC E-11 standards when used with an ELCI main circuit breaker mounted within 10 feet of the AC shore power inlet, making it suitable for marine applications. Its compact dimensions and robust construction make it ideal for installation in demanding environments while providing maximum protection for critical electrical components. The package includes the enclosure, waterproof glands, labels, mounting hardware, and an instruction manual, ensuring an easy setup process. This product is sold individually and is engineered for dependable performance in marine or industrial settings, enhancing safety and circuit management efficiency.

Features:

• Blank apertures for custom breaker loading

• Glass filled polycarbonate base for durability

• Clear cover for easy circuit breaker status viewing

• Overlapping cover design for strength and gasket protection

• Formed in place seamless PUR gasket for waterproof sealing

• Removable stainless steel hinge pin for easy installation

• Stainless steel latch secures cover without penetrations

• Blank circuit positions for Carling Technologies A and C Series breakers

• Includes waterproof glands for secure wiring

• LED lights for backlighting and ON indication
