Blue Sea Systems 3119-BSS Surface Mount System Panel Enclosure for 120/240V AC 50A ELCI Main

Blue Sea Panel Enclosure 120/240v AC 50A ELCI Main Surface Mount System

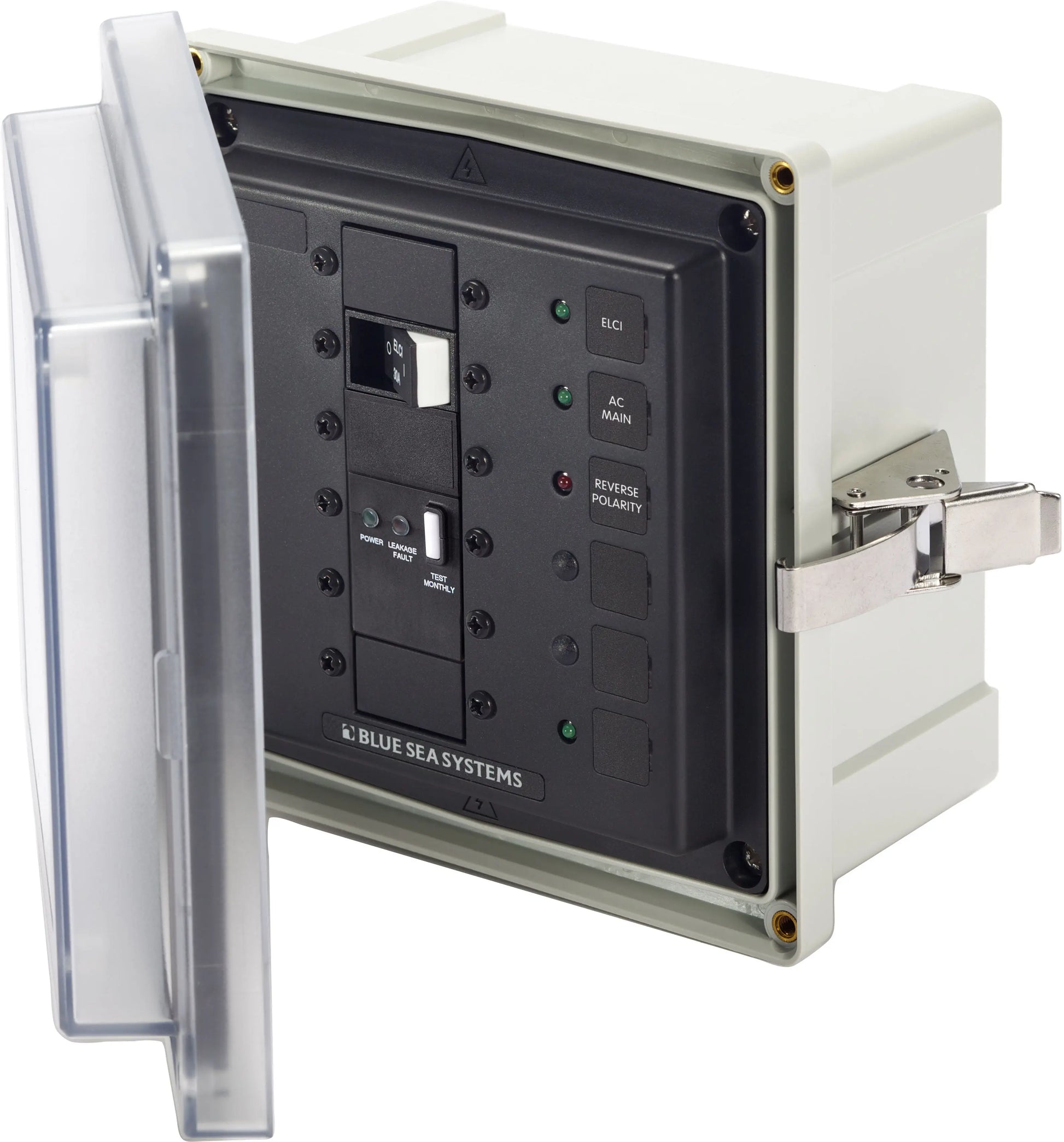

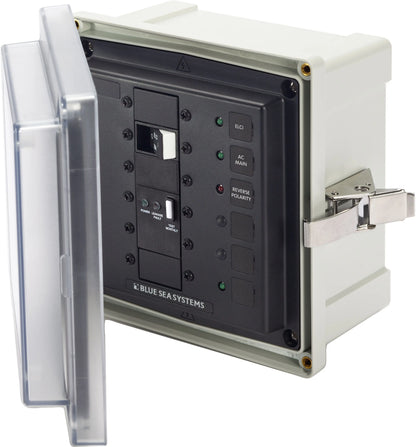

The Blue Sea Systems 3119-BSS panel enclosure is designed for secure and reliable housing of ELCI Main circuit breakers and large frame devices in marine or industrial applications. Crafted from durable glass-filled polycarbonate, this enclosure combines strength with lightweight construction, providing a robust solution for your electrical needs.

Equipped with a clear cover, it allows for quick visual inspection of circuit breaker status without opening the enclosure. The overlapping cover design enhances structural integrity and gasket protection, featuring an oversized, seamless polyurethane gasket that ensures waterproof sealing. The stainless steel hinge pin is easily removable for straightforward installation, and the stainless steel latch secures the cover firmly without penetrating the enclosure, maintaining integrity in harsh environments.

This enclosure includes one 120/240V AC / 50A ELCI Main breaker and one blank circuit position, offering flexibility for custom breaker configurations. The blank apertures enable easy installation of additional breakers such as Carling Technologies’ flat rocker series or other large frame devices. The enclosure is supplied with stainless steel mounting hardware and waterproof glands, making it suitable for marine applications where moisture resistance is critical. LED backlighting and ON indicator lights provide clear visibility of circuit status, enhancing safety and operational awareness.

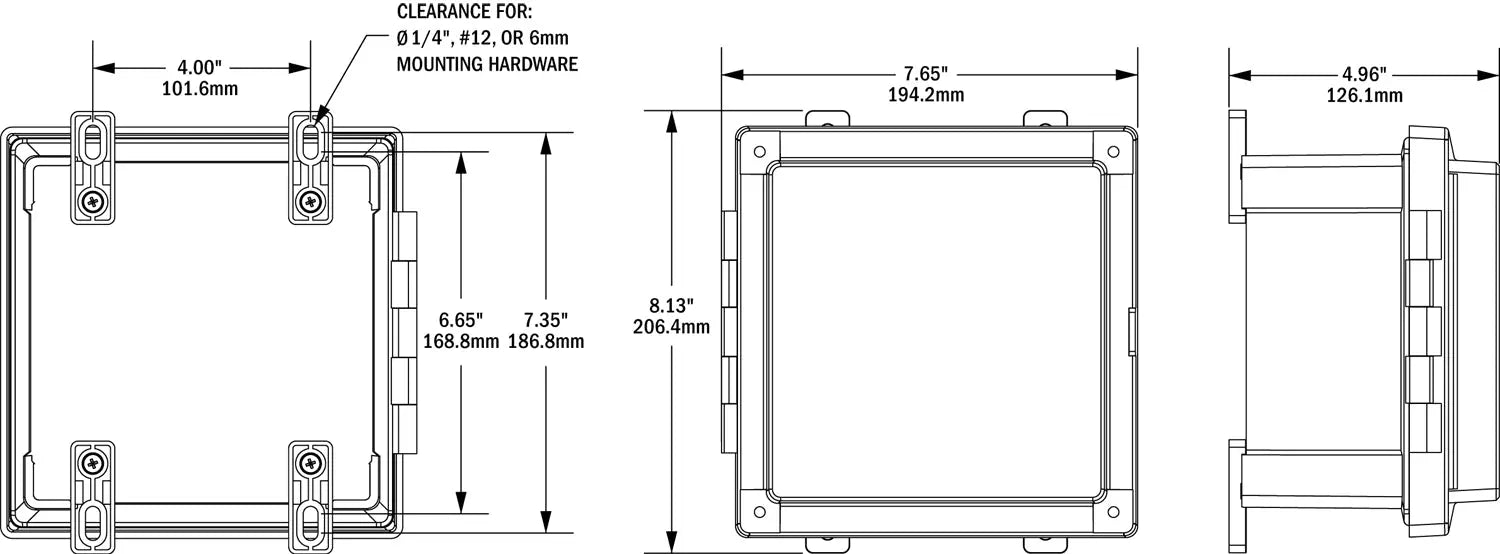

Designed to meet ABYC E-11 standards when used with an ELCI Main breaker and mounted within 10 feet of shore power, this panel enclosure offers a reliable solution for boat and yacht electrical systems. Its compact exterior dimensions make it easy to integrate into various setups, while its construction supports a wide temperature range from -40°C to 85°C. Weighing approximately 7 pounds, the enclosure is lightweight yet durable, ensuring long-term performance in demanding environments.

Included in the package are the SMS Panel Enclosure and the 120/240V ELCI Main breaker, ready for installation. With its combination of safety features, customizable layout, and marine-grade materials, the Blue Sea Systems 3119-BSS enclosure is an ideal choice for secure electrical distribution in marine and other demanding settings.

Features:

• Includes one 120/240V AC / 50A ELCI Main breaker and one blank circuit position

• Blank apertures for custom breaker loading

• Glass filled polycarbonate mounting box for durability and lightweight performance

• Clear cover for easy visual inspection of circuit breaker status

• Overlapping cover design enhances strength and gasket protection

• Seamless polyurethane gasket provides waterproof sealing

• Removable stainless steel hinge pin for straightforward installation

• Stainless steel latch secures cover without penetrating the enclosure

• Blank circuit positions accommodate Carling Technologies flat rocker and ELCI Main circuit breakers

• Includes stainless steel mounting hardware and waterproof glands

• Backlit LED indicators for circuit status and ON indication

• Designed to meet ABYC E-11 standards when used appropriately
