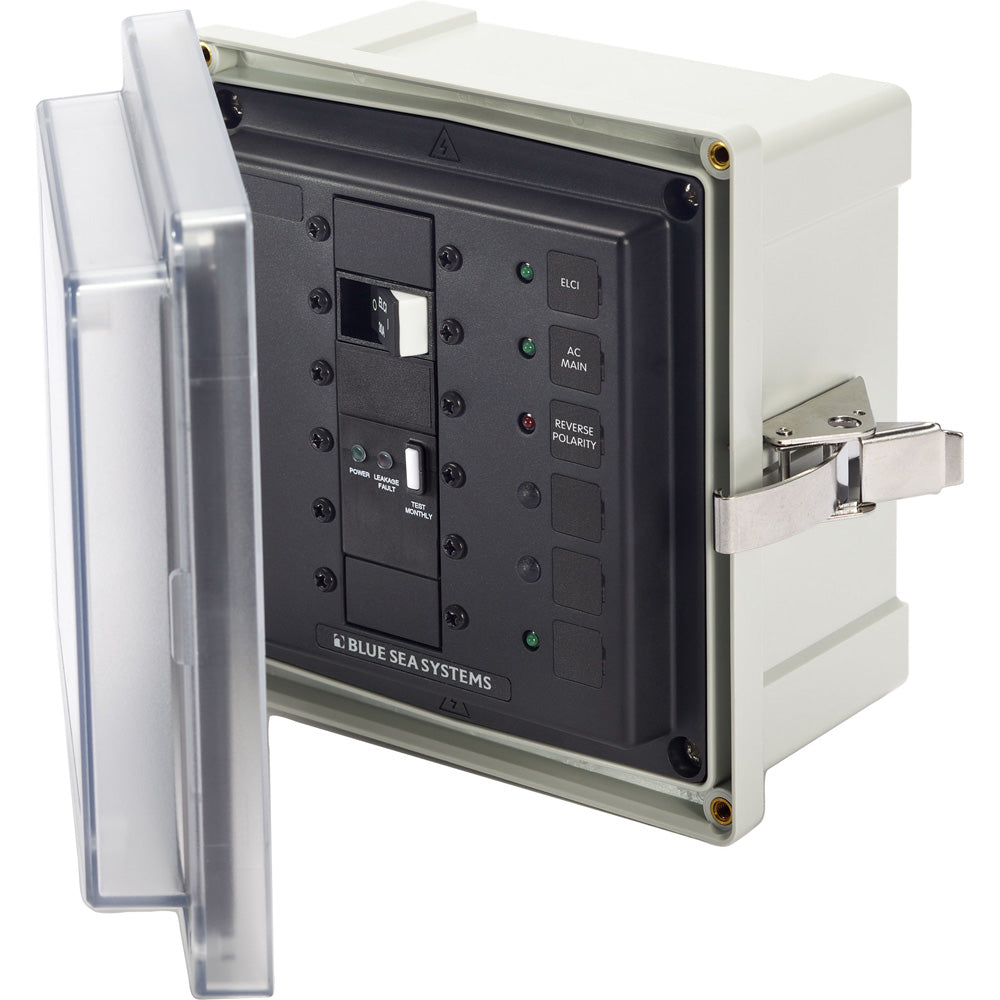

Blue Sea Systems 3119 SMS Surface Mount System Panel Enclosure with 120/240V AC, 50A ELCI Main and Blank Circuit Position

3119 SMS Surface Mount System Panel Enclosure - 120/240V AC / 50A ELCI Main - 1 Blank Circuit Position

The 3119 panel enclosure is for ELCI Main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of the shore power inlet

Features:

• Includes one 120/240V AC / 50A ELCI Main and one blank position
• Blank apertures for custom breaker loading
• Glass-filled polycarbonate mounting box
• Clear cover allows easy view of circuit breaker status
• Overlapping cover for strength and increased gasket protection
• Oversized, formed in place seamless PUR gasket
• Easily removable stainless steel hinge pin for unobstructed installation
• Stainless steel latch secures cover without penetrating the enclosure
• Blank circuit positions accommodate Carling Technologies A- and C- Series Flat Rocker and ELCI Main circuit breakers
• Stainless steel mounting hardware included
• Includes waterproof glands
• LED lights for back lighting and ON indication

Technical Specifications:

• Minimum Operating Temperature: -35 C
• Maximum Operating Temperature: 66 C
• Cover Screws and Hardware: 10-32 Stainless Steel
• Enclosure Size: 6.0" x 6.0" x 4.0" (152mm x 152mm x 102mm)
• Exterior Overall Dimensions: 7.6" x 7.4" x 4.7" (192mm x 188mm x 120mm)
• Mounting Hardware: 1/4" Diameter, #12 (6 mm)
• Weight: 7.00lb (3.18 kg)

In the Box:

• 3119 Enclosure
• Glands x 5
• Labels
• Mounting hardware
• Instruction manual

*Sold as an Individual

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 3119 SMS Surface Mount System Panel Enclosure is designed to provide a secure and reliable housing for ELCI main circuit breakers and large frame devices in marine and RV applications. Crafted from durable glass-filled polycarbonate, this enclosure ensures long-lasting performance and resistance to harsh environments. Its clear cover allows for quick visual inspection of circuit breaker status, while the overlapping design offers enhanced strength and gasket protection. The enclosure includes one 120/240V AC, 50A ELCI main breaker and a blank circuit position for customization, accommodating Carling Technologies A- and C-Series flat rocker and ELCI main breakers. Waterproof glands facilitate secure wiring, and stainless steel mounting hardware simplifies installation. LED backlighting and ON indicators provide convenient status monitoring, contributing to system safety and ease of use. The enclosure adheres to ABYC E-11 standards when installed within 10 feet of shore power, making it suitable for marine applications where safety and compliance are critical. Its compact dimensions and robust construction make it ideal for integration into various electrical systems, offering flexibility with blank apertures for additional custom breaker configurations. The unit is shipped with all necessary mounting hardware, waterproof glands, labels, and an instruction manual, ensuring straightforward installation and maintenance. Designed for operational temperatures ranging from -35°C to 66°C, the enclosure maintains performance in diverse conditions. Its stainless steel components, including cover screws and latch, resist corrosion, further enhancing durability. This enclosure is an essential component for safe, compliant, and flexible electrical system management on boats or RVs, providing a reliable solution for protecting circuit breakers and electrical connections.

Features:

• Includes one 120/240V AC, 50A ELCI main circuit breaker and one blank circuit position for customization

• Blank apertures allow for flexible breaker loading options

• Constructed from glass-filled polycarbonate for durability and impact resistance

• Clear cover enables easy visibility of circuit breaker status

• Overlapping cover design enhances strength and gasket protection

• Formed-in-place seamless PUR gasket provides a secure seal

• Removable stainless steel hinge pin allows for unobstructed installation

• Stainless steel latch secures the cover without penetrating the enclosure

• Blank circuit positions compatible with Carling Technologies A- and C-Series flat rocker breakers and ELCI mains

• Includes waterproof glands for secure wiring connections

• LED backlighting and ON indicators facilitate status monitoring

• Meets ABYC E-11 standards when installed within 10 feet of shore power

• Compact size with stainless steel mounting hardware included

• Operates reliably across a temperature range from -35°C to 66°C
