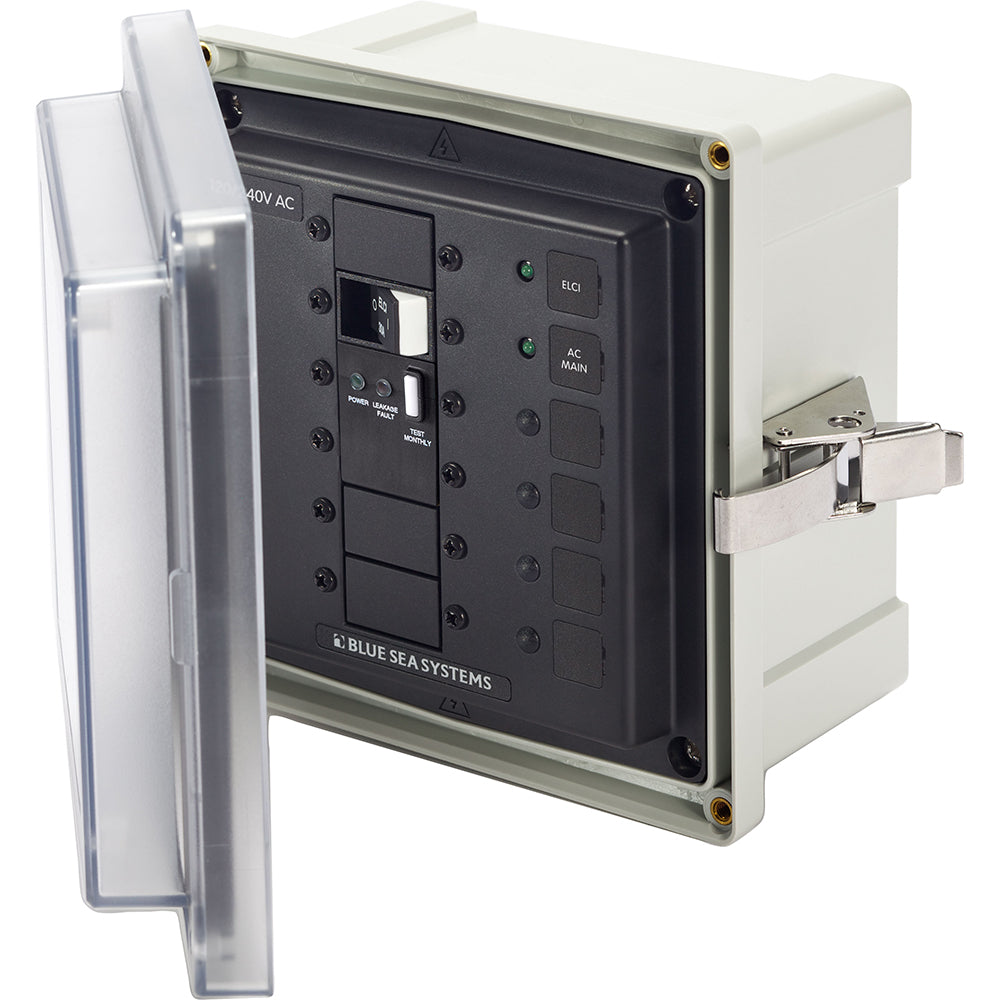

Blue Sea Systems 3120 SMS Panel Enclosure with ELCI Main (50A) and 2 Blanks for Marine and RV Power Systems

3120 - SMS Panel Enclosure with ELCI Main (50A) and 2 Blanks - 240V

The 3120 panel enclosure is built for Equipment Leakage Circuit Interrupters (ELCI) main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10' of AC shore power inlet.

Features:

• Blank apertures for custom breaker loading
• Glass filled polycarbonate base
• Clear cover allows easy view of circuit breaker status
• Overlapping cover for strength and increased gasket protection
• Oversized, formed in place seamless PUR gasket
• Easily removable stainless steel hinge pin for unobstructed installation
• Stainless steel latch secures cover without penetrating the enclosure
• Blank circuit positions accommodate Carling Technologies A and C Series Flat Rocker and ELCI Main circuit breakers
• Includes waterproof glands
• LEDs for backlighting and ON indication

Technical Specifications:

• Circuit Breaker Type - 1 x ELCI (50A) Main 240V and 2 x Blank
• Dimensions (Overall) (H x W x D) - 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm)
• Dimensions (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm)
• LEDs Installed - 2 x Green ON (240V AC)

In the Box:

• 3120 Enclosure
• Glands x 5
• Labels
• Mounting hardware
• Instruction manual

*Sold as an Individual

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 3120 SMS Panel Enclosure is designed for reliable protection and distribution of electrical circuits in marine, RV, and industrial applications. Crafted with a durable glass-filled polycarbonate base, this enclosure ensures strength and resistance to harsh environments. It features a clear cover that allows quick visual inspection of circuit breaker status and an overlapping cover with a seamless PUR gasket for enhanced waterproofing and gasket protection. The enclosure supports a 50A ELCI main circuit breaker and includes blank apertures for customizable breaker configurations, accommodating Carling Technologies A and C Series Flat Rocker and ELCI Main circuit breakers. It also comes equipped with waterproof glands to ensure a secure, waterproof environment for electrical components, and LEDs for backlighting and ON indication, providing clear operational status at a glance. The stainless steel hinge pin and latch facilitate easy installation and secure closure without penetrating the enclosure, preserving its waterproof integrity. The enclosure measures approximately 7.6 inches high, 7.4 inches wide, and 4.7 inches deep, making it suitable for various installation requirements. Included in the package are the enclosure, waterproof glands, labels, mounting hardware, and an instruction manual, providing everything needed for quick setup. This product complies with ABYC E-11 standards when mounted within 10 feet of AC shore power inlet, making it a compliant choice for marine and RV power systems. Ideal for custom breaker loading and versatile installation, the Blue Sea Systems 3120 enclosure offers a durable, waterproof, and visually accessible solution for electrical circuit management in demanding environments.

Features:

• Blank apertures for custom breaker loading

• Glass filled polycarbonate base for durability

• Clear cover for easy circuit breaker status viewing

• Overlapping cover with gasket for enhanced waterproofing

• Seamless PUR gasket for gasket protection

• Removable stainless steel hinge pin for easy installation

• Stainless steel latch for secure closure without penetration

• Blank circuit positions compatible with Carling Technologies A and C Series Flat Rocker and ELCI Main circuit breakers

• Includes waterproof glands for secure wiring entry

• LED indicators for backlighting and ON status
