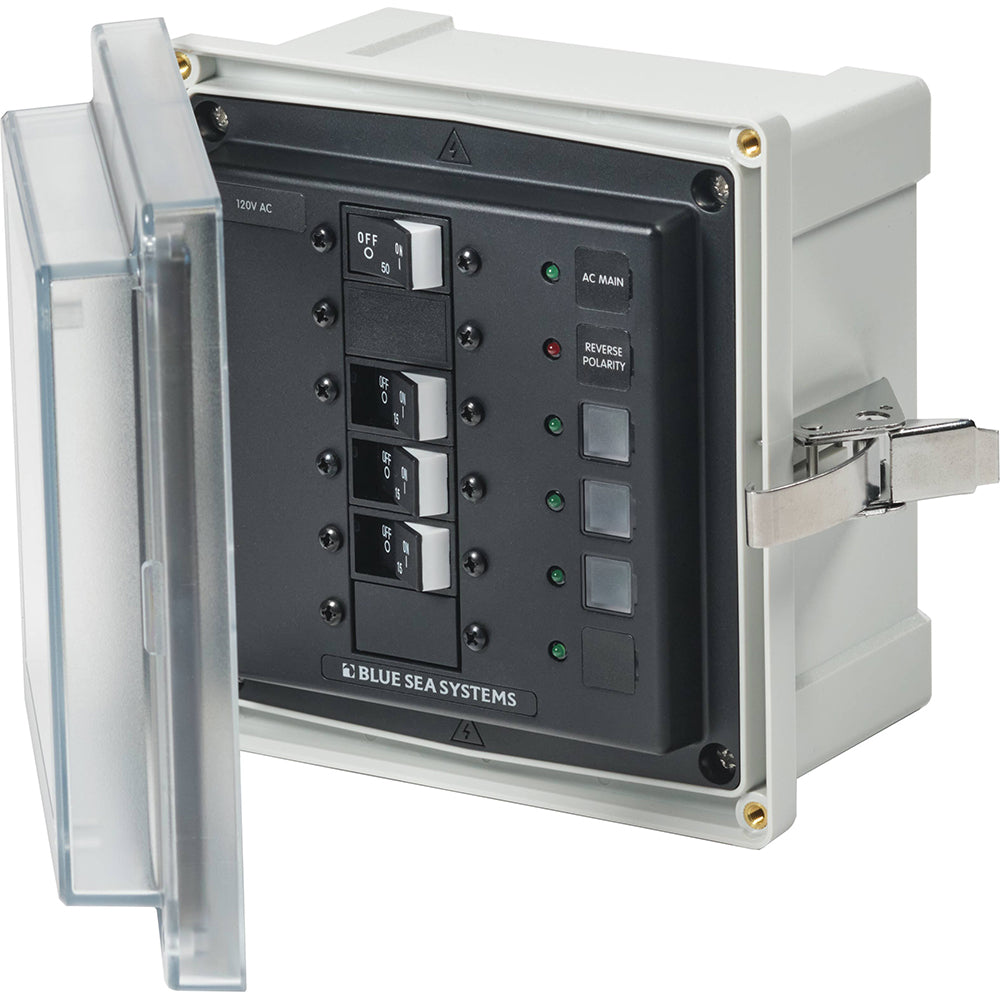

Blue Sea Systems 3130 SMS Panel Enclosure with Main and 3 Branch 15A Circuit Breakers - 120V AC

3130 - SMS Panel Enclosure with Main 3 Branch (15A) - 120V AC

The 3130-panel enclosure is built with UL-489 Circuit Breakers to meet CFR 46 / Coast Guard requirements.

Features:

• Blank apertures for custom breaker loading
• Glass-filled polycarbonate base
• Clear cover allows easy view of circuit breaker status
• Overlapping cover for strength and increased gasket protection
• Oversized, formed in place seamless PUR gasket
• Easily removable stainless steel hinge pin for unobstructed installation
• Stainless steel latch secures cover without penetrating the enclosure
• Blank circuit positions accommodate Carling Technologies A and C Series Flat Rocker and ELCI Main circuit breakers
• Includes waterproof glands
• LED lights for backlighting and ON indication

Technical Specifications:

• Circuit Breaker Type - 1 x 120V Main and 3 x Branch (15A)
• Dimensions (Overall) (H x W x D) - 7.6 x 7.4 x 4.7 (192 x 188 x 120mm)
• Dimensions (Enclosure) (H x W x D) - 6 x 6 x 4 (152 x 152 x 102mm)
• LEDs Installed - 1 x Red (Reverse Polarity - 120V AC and 5 x Green ON (120V AC)

In the Box:

• 3130 Enclosure
• Glands x 4
• Labels
• Mounting hardware
• Instruction manual

*Sold as an Individual

The Blue Sea Systems 3130 SMS Panel Enclosure is designed for reliable electrical management in marine and industrial applications. Constructed with UL-489 circuit breakers, it complies with CFR 46 / Coast Guard standards, ensuring safety and performance. The enclosure features a durable glass-filled polycarbonate base and a clear cover that provides easy visual access to circuit breaker statuses, facilitating quick inspections. An overlapping cover design enhances structural integrity and offers increased gasket protection, safeguarding against environmental factors. The oversized, formed-in-place seamless polyurethane gasket further improves sealing, preventing water ingress and ensuring the enclosure remains secure in harsh conditions. An easily removable stainless steel hinge pin allows for straightforward installation and maintenance, while a stainless steel latch secures the cover without penetrating the enclosure, maintaining its integrity and waterproof qualities. The enclosure includes blank circuit positions compatible with Carling Technologies A and C Series Flat Rocker and ELCI Main circuit breakers, providing flexibility for customization. Waterproof glands are included to ensure secure wiring entries, and integrated LED lights offer backlighting and ON indicators for easy operation. With overall dimensions of approximately 7.6 inches high, 7.4 inches wide, and 4.7 inches deep, this enclosure offers a compact yet robust solution for circuit management. The package includes the enclosure, glands, labels, mounting hardware, and an instruction manual, making it ready for quick installation and use. Whether used in marine, RV, or industrial settings, the Blue Sea 3130 provides a secure, accessible, and code-compliant circuit protection solution.

Features:

• Blank apertures for custom breaker loading

• Glass-filled polycarbonate base for durability

• Clear cover allows easy view of circuit breaker status

• Overlapping cover for strength and gasket protection

• Formed in place seamless polyurethane gasket for water resistance

• Removable stainless steel hinge pin for easy installation

• Stainless steel latch secures cover without penetrating enclosure

• Blank circuit positions compatible with Carling Technologies A and C Series Breakers

• Includes waterproof glands for secure wiring

• LED lights for backlighting and ON indication
