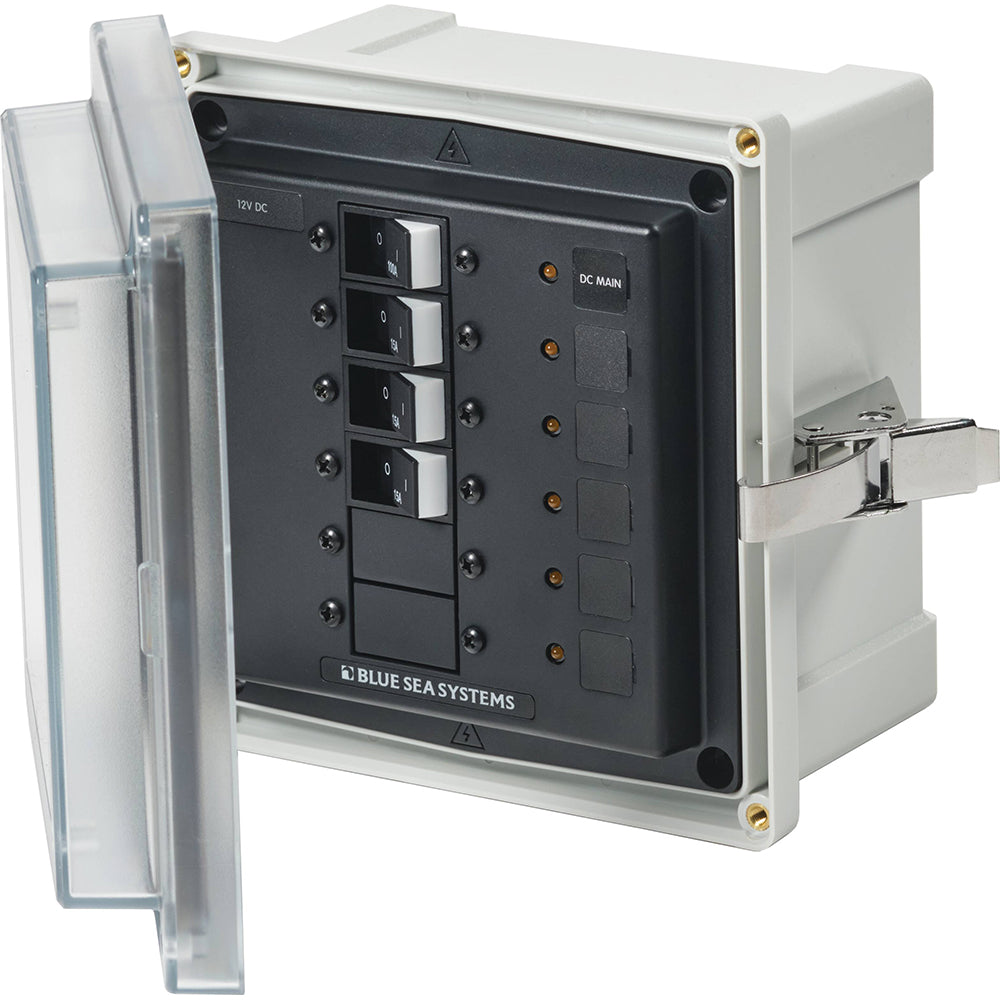

Blue Sea Systems 3133 SMS Panel Enclosure with Main and 3 Branch Circuits (12/24V DC)

3133 - SMS Panel Enclosure with Main 3 Branch (12/24V) - 12/24V DC

The 3133-panel enclosure for DC circuit breakers and other large frame devices.

Features:

• Blank apertures for custom breaker loading
• Glass-filled polycarbonate base
• Clear cover allows easy view of circuit breaker status
• Overlapping cover for strength and increased gasket protection
• Oversized, formed in place seamless PUR gasket
• Easily removable stainless steel hinge pin for unobstructed installation
• Stainless steel latch secures cover without penetrating the enclosure
• Blank circuit positions accommodate Carling Technologies A and C Series Flat Rocker and ELCI Main circuit breakers
• Includes waterproof glands
• LED lights for backlighting and ON indication

Technical Specifications:

• Circuit Breaker Type - 1 x 12/24V DC Main and 3 x Branch 12/24V DC (15A)
  • Dimensions (Overall) (H x W x D) - 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm)
  • Dimensions (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm)
  • LEDs Installed - 6 x Amber ON indicating 12/24V DC

In the Box:

• 3133 Enclosure
• Glands x 6
• Labels
• Mounting hardware
• Instruction manual

*Sold as an Individual

The Blue Sea Systems 3133 SMS Panel Enclosure is designed for reliable management of DC circuit breakers and large frame devices in marine and industrial applications. Crafted with a durable glass-filled polycarbonate base, this enclosure provides robust protection against environmental factors while maintaining a sleek appearance. The clear cover enables quick visual inspection of circuit breaker status without opening the enclosure, enhancing safety and efficiency. Overlapping cover design offers added strength and gasket protection, ensuring the internal components remain sealed from moisture and dust. The formed-in-place seamless PUR gasket further enhances waterproofing capabilities, making this enclosure suitable for demanding environments. Additionally, the stainless steel hinge pin is easily removable for unobstructed installation, and the stainless steel latch secures the cover firmly without penetrating the enclosure, preserving its integrity. The enclosure features blank apertures allowing customization for various breaker configurations, including Carling Technologies A and C Series Flat Rocker and ELCI Main circuit breakers. Six waterproof glands are included for secure cable entry, and integrated amber LED lights provide backlighting and ON indication, improving visibility during operation.

Features:

• Blank apertures for custom breaker loading

• Glass-filled polycarbonate base for durability

• Clear cover for easy circuit breaker status viewing

• Overlapping cover for added strength and gasket protection

• Seamless PUR gasket for waterproof sealing

• Removable stainless steel hinge pin for installation flexibility

• Stainless steel latch secures cover without penetrating the enclosure

• Blank circuit positions accommodate various circuit breakers

• Includes waterproof glands for cable entry

• LED lights for backlighting and ON indication
