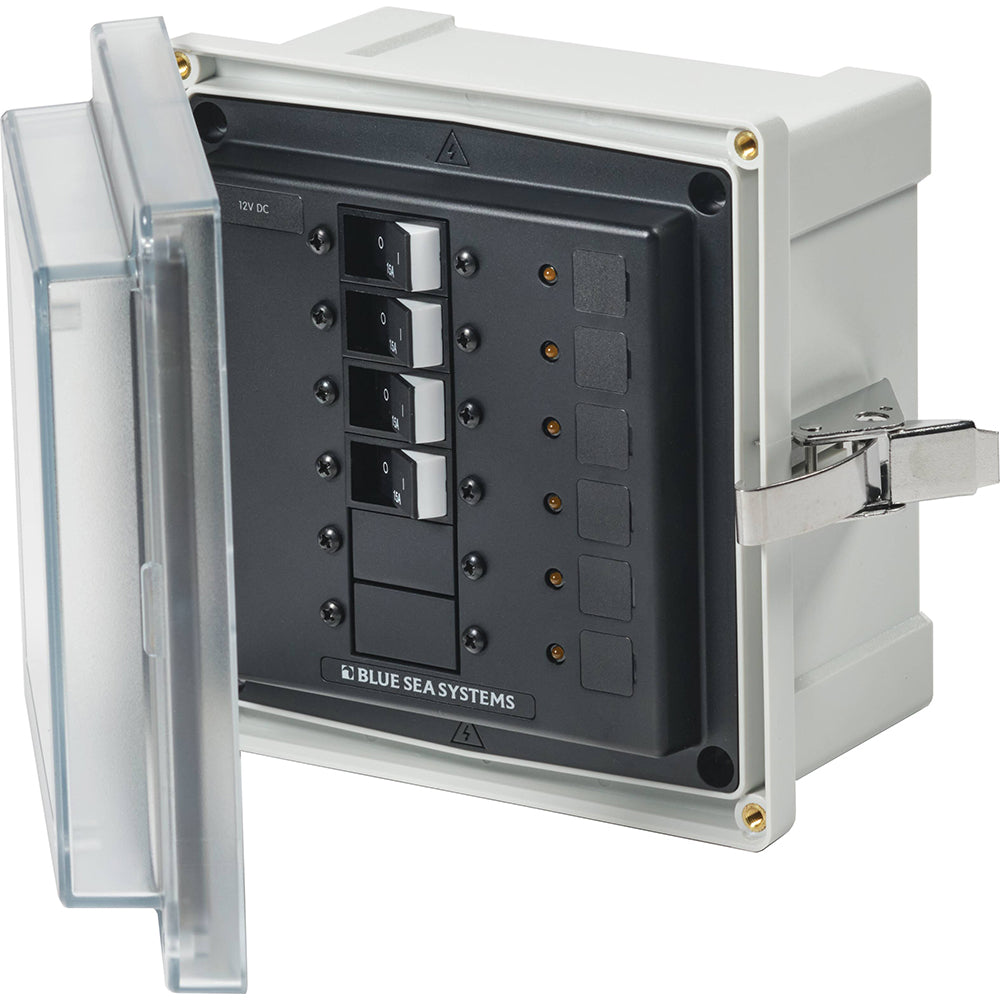

Blue Sea Systems 3134 SMS Panel Enclosure with 4 Branch 12/24V DC

3134 - SMS Panel Enclosure with 4 Branch (12/24V) - 12/24V DC

The 3134-panel enclosure for DC circuit breakers and other large frame devices.

Features:

• Blank apertures for custom breaker loading
• Glass-filled polycarbonate base
• Clear cover allows easy view of circuit breaker status
• Overlapping cover for strength and increased gasket protection
• Oversized, formed in place seamless PUR gasket
• Easily removable stainless steel hinge pin for unobstructed installation
• Stainless steel latch secures cover without penetrating the enclosure
• Blank circuit positions accommodate Carling Technologies A and C Series Flat Rocker and ELCI Main circuit breakers
• Includes waterproof glands
• LED lights for backlighting and ON indication

Technical Specifications:

• Circuit Breaker Type - 4 x Branch 12/24V DC (15A)
  • Dimensions (Overall) (H x W x D) - 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm)
  • Dimensions (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm)
  • LEDs Installed - 6 x Amber ON indicating 12/24V DC

In the Box:

• 3134 Enclosure
• Glands x 6
• Labels
• Mounting hardware
• Instruction manual

*Sold as an Individual

The Blue Sea Systems 3134 SMS Panel Enclosure is designed to house DC circuit breakers and large frame devices in a compact, durable package. Constructed with a glass-filled polycarbonate base, this enclosure offers strength and resistance to harsh environments. Its clear cover provides an easy view of the circuit breaker status, allowing for quick assessments without opening the enclosure. The overlapping cover enhances structural integrity and gasket protection, ensuring reliable sealing against moisture and dust. The oversized, formed-in-place seamless PUR gasket further improves the enclosure’s waterproof performance, making it suitable for marine and industrial applications. The stainless steel hinge pin is easily removable, facilitating unobstructed installation and maintenance, while the stainless steel latch secures the cover without penetrating the enclosure, maintaining its waterproof integrity. The enclosure features blank circuit positions that accommodate Carling Technologies A and C Series Flat Rocker and ELCI Main circuit breakers, offering flexibility in electrical configuration. Included waterproof glands provide secure cable entry points, and LED lights for backlighting and ON indication enhance visibility of circuit status in low-light conditions. The enclosure measures approximately 7.6 inches high, 7.4 inches wide, and 4.7 inches deep, providing ample space for four 12/24V DC circuits rated at 15A each. It is supplied with six waterproof glands, labels, mounting hardware, and an instruction manual, making installation straightforward and efficient. The 3134 enclosure is ideal for marine, RV, and industrial electrical systems requiring reliable, protected circuit management in a compact form factor. This product is sold individually, ensuring easy procurement for your electrical projects.

Features:

• Blank apertures for custom breaker loading

• Glass-filled polycarbonate base for durability

• Clear cover for easy circuit breaker status viewing

• Overlapping cover for enhanced strength and gasket protection

• Formed-in-place seamless PUR gasket for waterproof sealing

• Removable stainless steel hinge pin for easy installation

• Stainless steel latch secures cover without penetrating the enclosure

• Blank circuit positions compatible with Carling Technologies A and C Series Flat Rocker and ELCI Main circuit breakers

• Includes waterproof glands for cable entry

• LED lights for backlighting and ON indication
