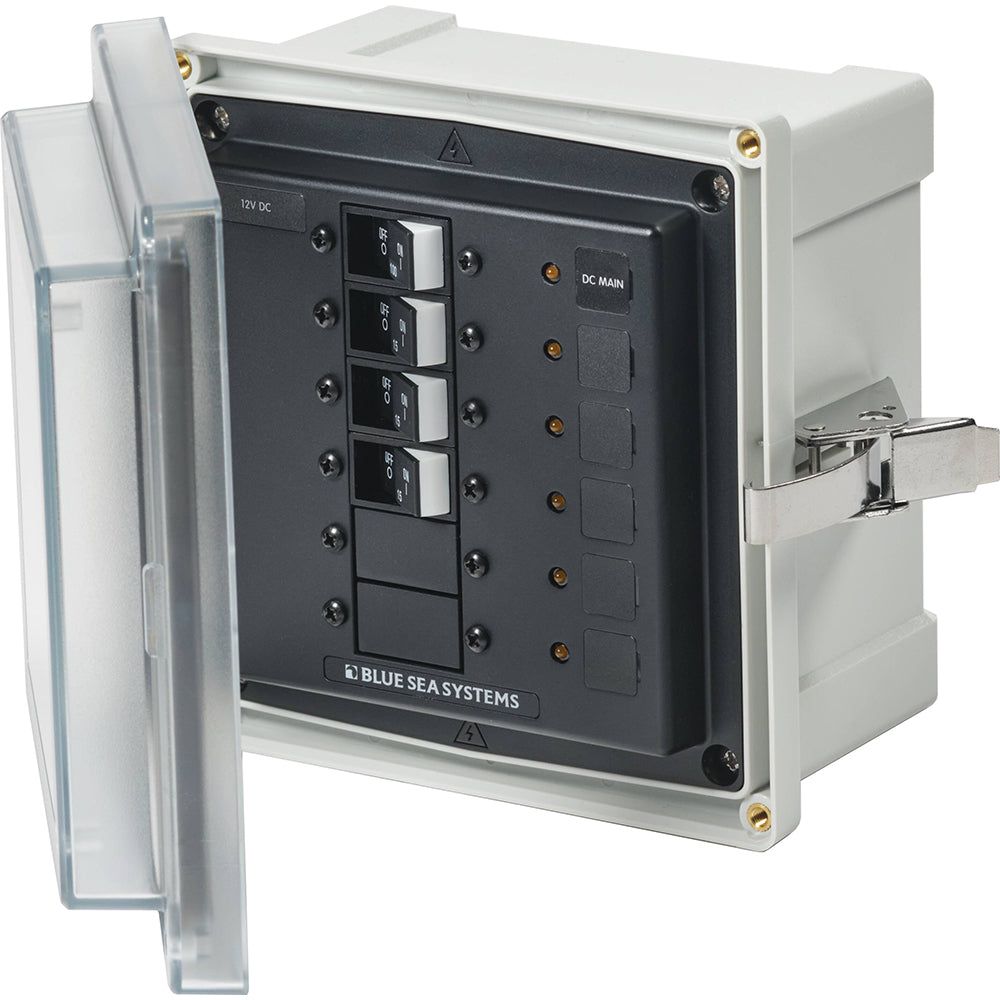

Blue Sea Systems 3135 SMS Panel Enclosure with UL Main and 3 Branch Circuits for 12/24V DC

3135 - SMS Panel Enclosure with UL Main 3 Branch (12/24V) - 12/24V DC

The 3135-panel enclosure for DC circuit breakers and other large frame devices.

Features:

• Blank apertures for custom breaker loading
• Glass-filled polycarbonate base
• Clear cover allows easy view of circuit breaker status
• Overlapping cover for strength and increased gasket protection
• Oversized, formed in place seamless PUR gasket
• Easily removable stainless steel hinge pin for unobstructed installation
• Stainless steel latch secures cover without penetrating the enclosure
• Blank circuit positions accommodate Carling Technologies A and C Series Flat Rocker and ELCI Main circuit breakers
• Includes waterproof glands
• LED lights for backlighting and ON indication

Technical Specifications:

• Circuit Breaker Type - 1 x UL 489 DC Main and 3 x Branch 12/24V DC (15A)
  • Dimensions (Overall) (H x W x D) - 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm)
  • Dimensions (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm)
  • LEDs Installed - 6 x Amber ON indicating 12/24V DC

In the Box:

• 3135 Enclosure
• Glands x 6
• Labels
• Mounting hardware
• Instruction manual

*Sold as an Individual

The Blue Sea Systems 3135 SMS Panel Enclosure is designed to securely house DC circuit breakers and other large frame electrical devices in industrial and marine applications. Crafted with a durable glass-filled polycarbonate base, this enclosure provides robust protection while maintaining a lightweight profile. Its clear cover allows for quick visual inspection of circuit breaker status, ensuring safe and efficient system monitoring. The overlapping cover design enhances structural integrity and offers increased gasket protection, while the oversized, formed-in-place seamless polyurethane gasket ensures a watertight seal against environmental elements. An easily removable stainless steel hinge pin facilitates unobstructed installation, and the stainless steel latch secures the cover without penetrating the enclosure, preventing potential damage or compromise of the enclosure’s integrity. The blank circuit positions are compatible with Carling Technologies A and C Series Flat Rocker and ELCI Main circuit breakers, offering flexible customization options. Waterproof glands are included to maintain enclosure integrity in wet environments, and LED lights provide backlighting and ON indication for operational visibility. This enclosure is suitable for a variety of DC power systems, supporting UL 489 DC Main and multiple branch circuits rated at 12/24V DC, with ample space for mounting and wiring. Its compact dimensions make it ideal for installations where space is limited without sacrificing functionality or safety. The package includes the enclosure, waterproof glands, labels, mounting hardware, and an instruction manual for straightforward setup and maintenance. Designed for durability and ease of use, the Blue Sea Systems 3135 enclosure ensures reliable circuit protection in demanding environments, making it an essential component for electrical system management in marine, industrial, or RV applications.

Features:

• Blank apertures for custom breaker loading

• Glass-filled polycarbonate base for durability

• Clear cover allows easy view of circuit breaker status

• Overlapping cover for strength and gasket protection

• Formed-in-place seamless polyurethane gasket for watertight seal

• Removable stainless steel hinge pin for easy installation

• Stainless steel latch secures cover without damaging enclosure

• Blank circuit positions compatible with Carling Technologies A and C Series Flat Rocker and ELCI Main circuit breakers

• Includes waterproof glands for environmental protection

• LED lights for backlighting and ON indication
