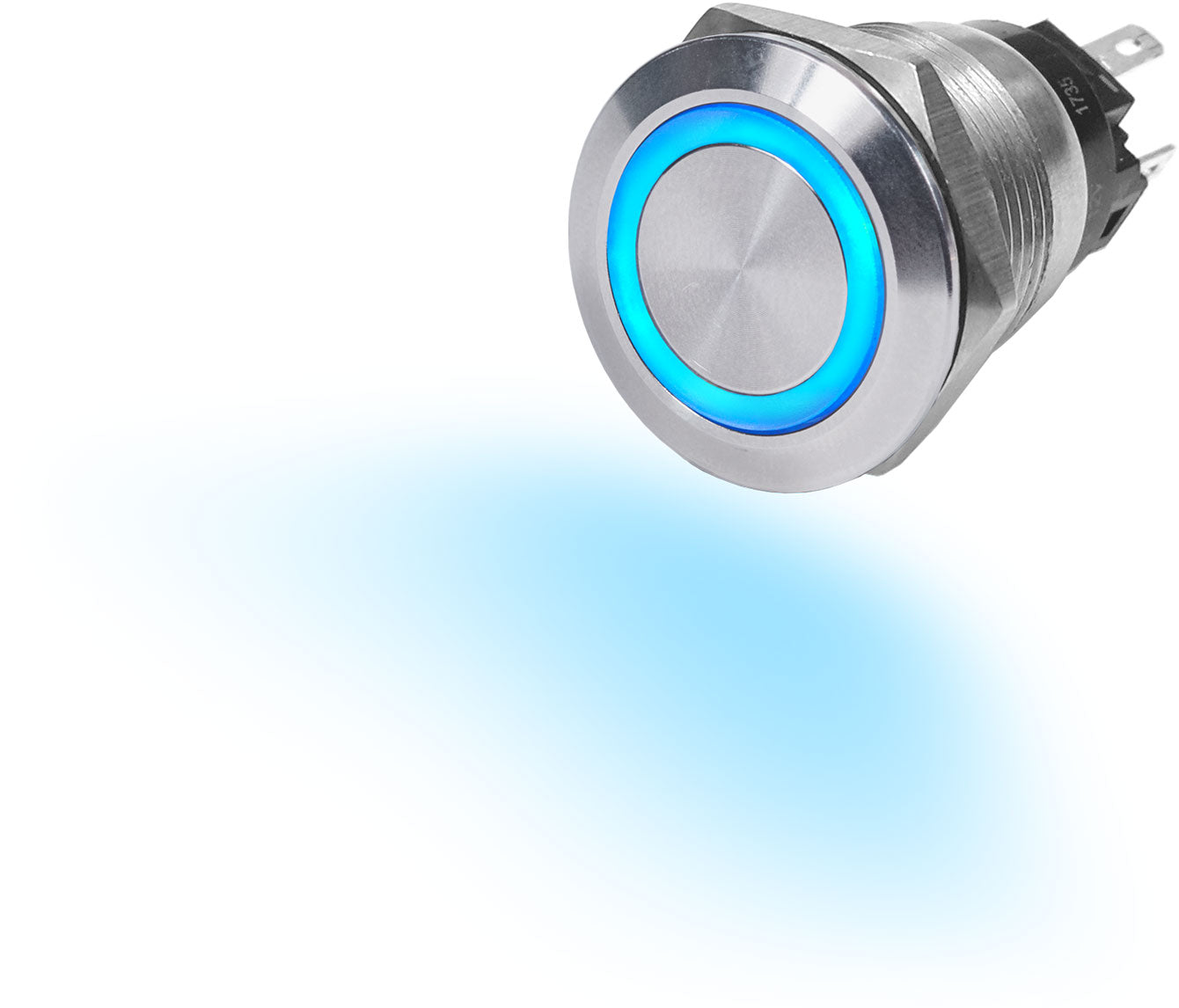

Blue Sea Systems 4160 10A Push Button LED Ring Switch Off-On Blue

Blue Sea 4160 10A Push Button LED Ring Switch Off-On Blue

The Blue Sea Systems 4160 10A Push Button LED Ring Switch offers reliable performance for your electrical control needs. Designed with a durable construction, this switch features a 10A continuous current rating suitable for various applications where a robust off-on switch is required. Its LED illumination provides clear visual indication of the switch status, making it easy to operate in low-light conditions. The switch can be wired for either normally open or normally closed configurations, offering flexibility to match your specific wiring requirements. Installation is straightforward with included .110-inch quick connect terminals, compatible with panel thicknesses up to approximately 0.31 inches. The switch is rated for 40,000 switching cycles, ensuring long-term durability and dependable operation in demanding environments. Operating within a temperature range from -10°C to 70°C, it is suitable for both indoor and outdoor applications, provided proper environmental controls are maintained. The switch's LED is powered independently, with separate contacts dedicated for LED illumination, ensuring clear visual feedback without interfering with the switch's primary function. This switch adheres to safety standards with Prop 65 warnings, emphasizing proper handling and disposal. Whether used in marine, automotive, or industrial control panels, the Blue Sea Systems 4160 switch provides a dependable and visually distinctive solution for your electrical switching needs.

Features:

• 10A continuous current rating suitable for demanding control applications

• LED illumination with independent power contacts for clear status indication

• Can be wired for normally open or normally closed configurations

• Easy installation with included .110-inch quick connect terminals

• Long-lasting with 40,000 switching cycles rated lifespan

• Suitable for panel thickness up to 0.31 inches (7.87 mm)

• Operates within a temperature range from -10°C to 70°C

• Designed for indoor and outdoor use with robust construction

• complies with Prop 65 safety standards
