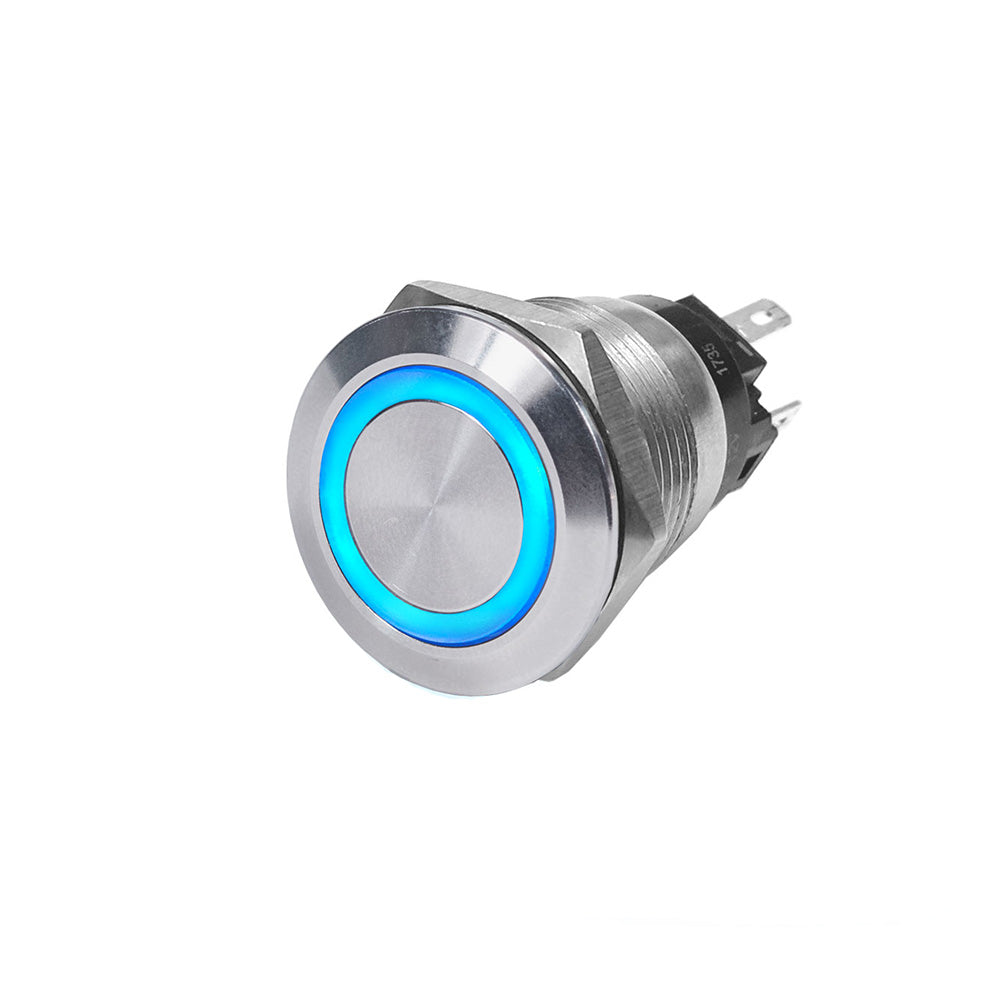

Blue Sea Systems 4160 SS Off-On Push Button Switch - Blue - 10A

4160 SS Push Button Switch - Off-On - Blue - 10A

• 10A continuous
• Single Pole Double Throw or Single Pole Single Throw
• Can be wired for normally open or normally closed
• Installs with .110inch quick connects (included in retail package)

Specifications

• Action: OFF-ON
• Amperage: 10A @ 12V DC
• Nominal Voltage: 12V DC
• Maximum LED Operating Current: 20mA
• Minimum Operating Temperature: -10 C
• Maximum Operating Temperature: 70 C
• Minimum Storage Temperature: -55 C
• Maximum Storage Temperature: 85 C
• Illumination: Independent Separate contacts for LED power
• Mounting Hole: 19mm
• Switching Cycles: 18,000
• Termination: 5 0.110inch Quick Connect terminals

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 4160 SS Push Button Switch offers reliable on/off control with a sleek blue illumination, designed to operate at 10 amps with a 12V DC power supply. Its versatile wiring options allow it to be configured as normally open or normally closed, making it suitable for various electrical applications. The switch installs easily with 0.110-inch quick connect terminals, providing a secure and straightforward connection. Its robust design supports up to 18,000 switching cycles, ensuring durability for long-term use in demanding environments. The switch features separate contacts for LED illumination, allowing for independent LED power management, and is engineered to operate within a broad temperature range from -10°C to 70°C, with storage capabilities down to -55°C and up to 85°C. The mounting hole measures 19mm, compatible with standard panel cutouts, facilitating quick installation in dashboards or control panels. This switch is ideal for marine, automotive, or industrial applications where reliable and visible on/off control is essential. The high-quality construction and clear illumination make it easy to locate and operate, even in low-light conditions. Please note, this product contains chemicals known to the State of California to cause reproductive harm, and proper handling is advised.

Features:

• Amperage: 10A continuous at 12V DC

• Action: OFF-ON switch with independent LED illumination

• Wiring: Can be configured as normally open or normally closed

• Connections: Includes 0.110-inch quick connect terminals for easy wiring

• Durability: Supports up to 18,000 switching cycles

• Temperature Range: Operates from -10°C to 70°C, with storage from -55°C to 85°C

• Mounting: 19mm mounting hole suitable for panel installation

• Design: Single pole double throw or single pole single throw options available
