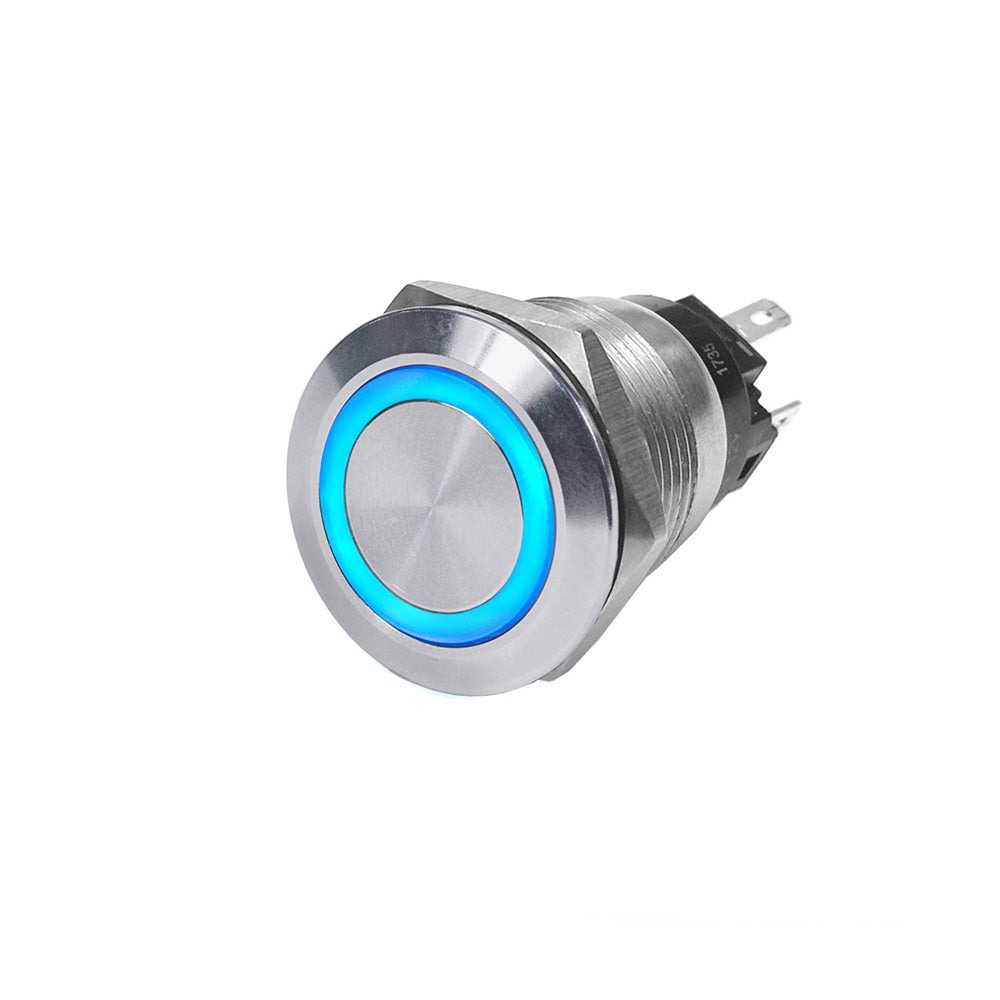

Blue Sea Systems 4161 SS Push Button Switch Off-On Blue 10A

4161 SS Push Button Switch - Off-(On) - Blue - 10A

• 10A continuous
• Single Pole Double Throw or Single Pole Single Throw
• Can be wired for normally open or normally closed
• Installs with .110inch quick connects (included in retail package)

Specifications

• Action: OFF-(ON)
• Amperage: 10A @ 12V DC
• Nominal Voltage: 12V DC
• Maximum LED Operating Current: 20mA
• Minimum Operating Temperature: -10 C
• Maximum Operating Temperature: 70 C
• Minimum Storage Temperature: -55 C
• Maximum Storage Temperature: 85 C
• Illumination: Independent Separate contacts for LED power
• Mounting Hole: 19mm
• Switching Cycles: 18,000
• Termination: 5 0.110inch Quick Connect terminals

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 4161 SS push button switch offers reliable on-off control with a sleek blue illumination, ideal for various electrical applications. Designed for durability, this switch supports a continuous current of 10 amps at 12 volts DC, making it suitable for powering small to medium loads. Its single pole double throw (SPDT) configuration allows versatile wiring options, enabling you to connect the switch for normally open or normally closed circuits to fit your specific setup. The switch installs easily with included 0.110-inch quick connect terminals and features a 19mm mounting hole, ensuring a secure fit in your panel or dashboard. With an impressive switching cycle count of 18,000, it is built for long-term operation in demanding environments. The illuminated LED indicator is powered independently, providing visual confirmation of the switch's status without interfering with circuit operation. The switch operates within a temperature range from -10°C to 70°C, ensuring reliability across diverse conditions. Suitable for a variety of applications, this switch combines ease of installation, durability, and clear visual feedback. Whether used in marine, automotive, or industrial settings, the Blue Sea Systems 4161 SS push button switch guarantees consistent performance and safety. Please note, this product contains chemicals that may pose health risks, including di(2-ethylhexyl)phthalate (DEHP), which is recognized by California's Proposition 65. For detailed health information, visit P65Warnings.ca.gov.

Features:

• 10A continuous current at 12V DC for reliable operation

• Single Pole Double Throw (SPDT) design for wiring flexibility

• Can be wired for normally open or normally closed circuits

• Includes .110-inch quick connect terminals for straightforward installation

• Illuminated LED indicator with independent power supply for clear status indication

• Supports up to 18,000 switching cycles for long-term durability

• Mounts securely with a 19mm mounting hole
