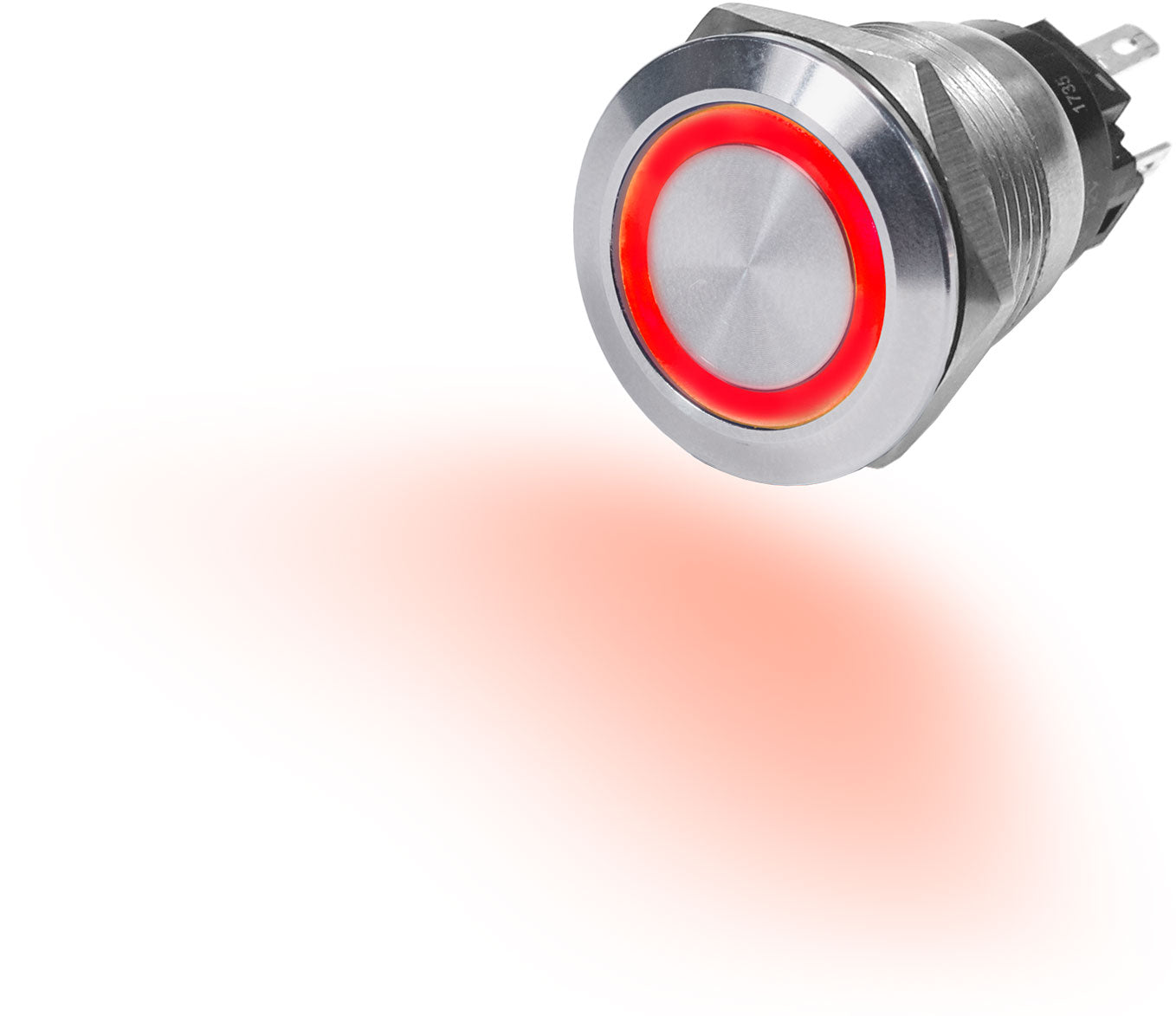

Blue Sea Systems 4162 10A Push Button LED Ring Switch Off-On with Red Illumination

Blue Sea 4162 10A Push Button LED Ring Switch Off-On Red

The Blue Sea Systems 4162 10A push button switch offers reliable operation with a sleek red LED ring indicator. Designed for marine and industrial applications, this switch features a durable construction and easy wiring options. With a maximum continuous current of 10 amps at 12V DC, it can be configured for normally open or normally closed circuits, providing versatile control for your electrical systems. The switch installs with quick-connect terminals, simplifying installation and maintenance. Its independent LED illumination ensures clear status indication without interfering with the switch's primary function, making it suitable for control panels where visibility is critical. The switch is rated for approximately 40,000 switching cycles, ensuring longevity and consistent performance over time. It supports panel thicknesses up to about 0.31 inches, fitting comfortably into standard control panels. The compact design, combined with high durability, makes this switch an ideal choice for demanding environments where reliable on/off control is essential. Its temperature range supports wide operational conditions, from cold to hot environments, ensuring stable functionality in various settings. The switch's quick-connect terminals provide a straightforward wiring process, reducing installation time and potential wiring errors. Overall, the Blue Sea Systems 4162 switch combines robust features, ease of use, and clear visual indication, making it a valuable component for marine, RV, and industrial control systems.

Features:

• Amperage: 10A continuous at 12V DC with 3A inductive load capacity

• Action: OFF-ON with toggle functionality

• Wiring: Can be wired for normally open or normally closed circuits

• Installation: Uses .110 inch quick connect terminals for easy setup

• LED Illumination: Separate contacts for LED power with red indicator

• Maximum Panel Thickness: Supports panels up to 0.31 inches thick

• Mounting Hole: 19mm (0.75 inch) diameter for secure fitting

• Switching Cycles: Rated for approximately 40,000 operations

• Temperature Range: Operates from -10°C to 70°C with storage capabilities from -55°C to 85°C

• Durability: Designed for reliable performance in demanding environments
