Blue Sea Systems 4162 SS Red Off-On Push Button Switch - 10A

4162 SS Push Button Switch - Off-On - Red - 10A

• 10A continuous
• Single Pole Double Throw or Single Pole Single Throw
• Can be wired for normally open or normally closed
• Installs with .110inch quick connects (included in retail package)

Specifications

• Action: OFF-ON
• Amperage: 10A @ 12V DC
• Nominal Voltage: 12V DC
• Maximum LED Operating Current: 20mA
• Minimum Operating Temperature: -10 C
• Maximum Operating Temperature: 70 C
• Minimum Storage Temperature: -55 C
• Maximum Storage Temperature: 85 C
• Illumination: Independent Separate contacts for LED power
• Mounting Hole: 19mm
• Switching Cycles: 18,000
• Termination: 5 0.110inch Quick Connect terminals

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

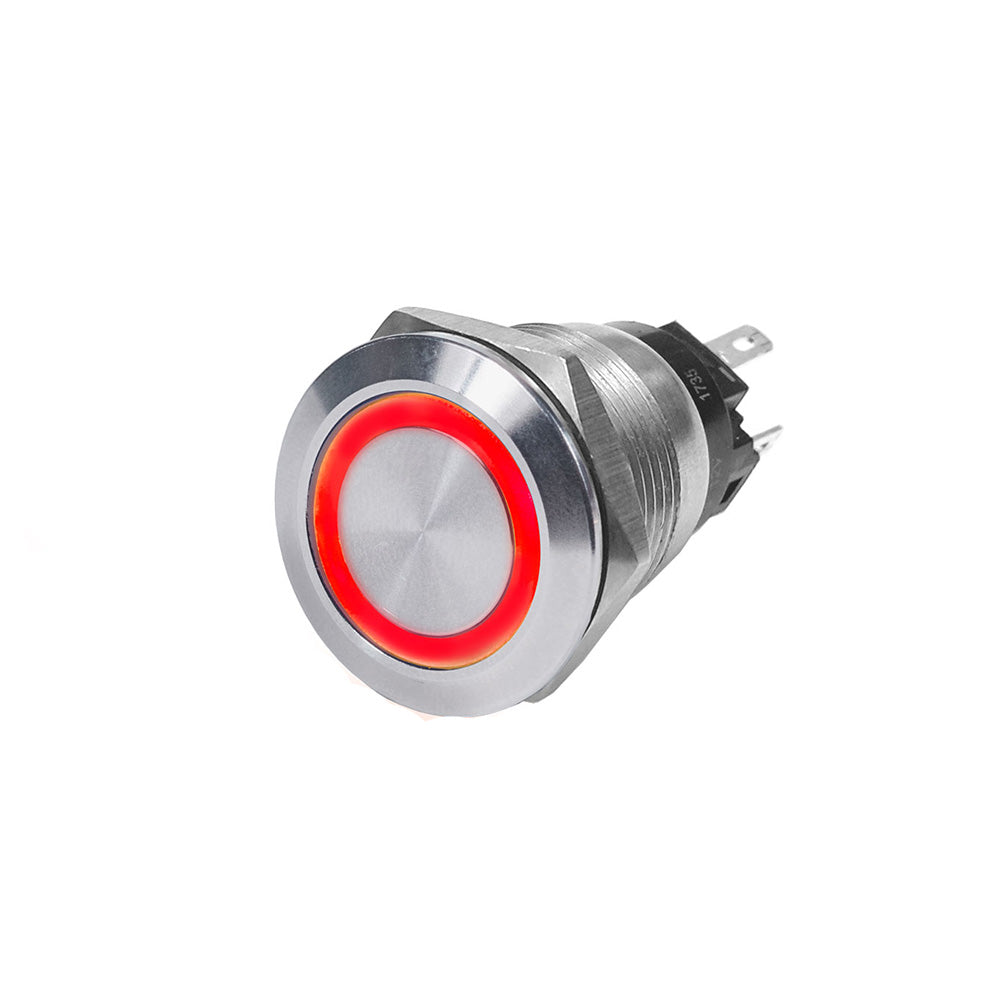

The Blue Sea Systems 4162 SS push button switch offers reliable ON-OFF control for your electrical system with a 10A current rating at 12V DC. Designed for easy installation, it features a 19mm mounting hole with quick connect terminals for swift wiring and secure connections. Its durable construction supports up to 18,000 switching cycles, ensuring long-term performance in demanding environments.
Constructed with a red illuminated button, this switch provides clear visual indication when activated. It can be wired for normally open or normally closed operation, giving flexibility for various circuit configurations. The switch's temperature range from -10°C to 70°C makes it suitable for diverse conditions, and its independent LED contacts allow for illumination without affecting the main switching function.
Ideal for marine, automotive, or custom electrical projects, the 4162 SS switch combines ease of use with robust build quality. The quick connect terminals are compatible with 0.110-inch connectors, making installation straightforward without the need for specialized tools. The switch's design ensures consistent performance over extensive switching cycles, making it a dependable component for your electrical system. Please note the product may contain chemicals hazardous to health, as specified by California's Proposition 65. For more information, visit P65Warnings.ca.gov.

Features:

• 10A continuous current at 12V DC for reliable operation

• Can be wired as normally open or normally closed for versatile application

• Illuminated red push button with independent LED contacts for clear status indication

• Durable switch with 18,000 switching cycles for long-term use

• Easy installation using 0.110-inch quick connect terminals
