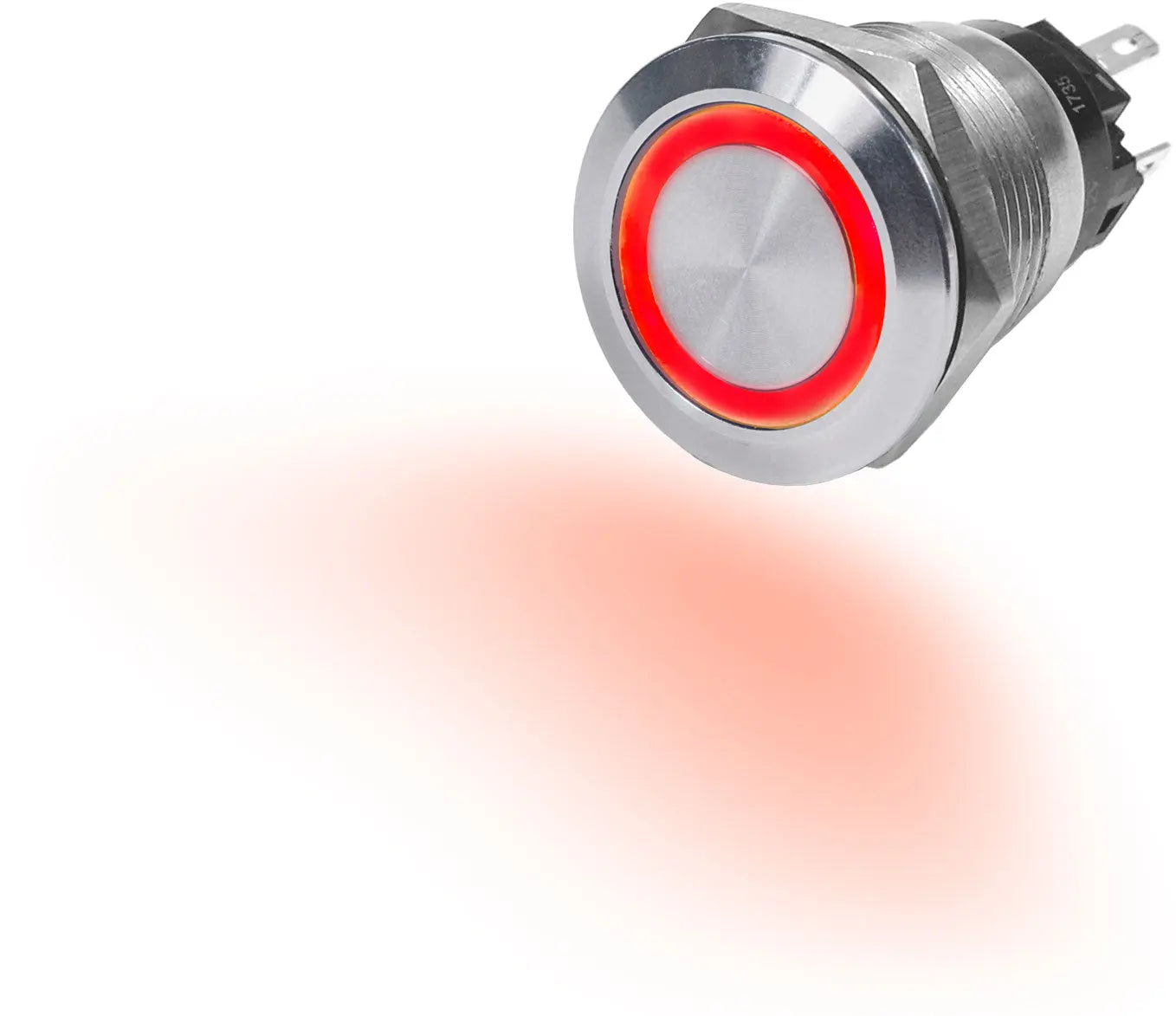

Blue Sea Systems 4163 10A Push Button LED Ring Switch Off-(On) Red - Momentary On

Blue Sea 4163 10A Push Button LED Ring Switch Off-(On) Red Momentary On

The Blue Sea Systems 4163-BSS is a high-quality push button switch designed for reliable control in various electrical applications. Featuring a 10A continuous rating at 12V DC, this switch can be wired for both normally open and normally closed configurations, offering flexibility for your wiring needs. The switch installs easily with included .110 inch quick connect terminals, making it suitable for quick and secure connections. Its red LED ring indicates activation, providing clear visual feedback during operation, with independent illumination contacts for separate LED power supply.

Built for durability, the Blue Sea 4163 switch supports up to 40,000 switching cycles, ensuring long-lasting performance. It is rated for a maximum LED operating current of 20mA and can handle resistive loads of 10A and inductive loads of 3A at 12V DC. The switch is designed to operate efficiently within a temperature range from -10°C to 70°C (14°F to 158°F), making it suitable for various environments. It features a mounting hole diameter of 0.34 inches (19mm) and supports panel thicknesses up to 0.31 inches (7.87mm).

This switch is ideal for marine, automotive, and industrial control panels, providing both visual indication and reliable switching performance. The robust construction and easy installation make it a versatile choice for professionals and DIY enthusiasts alike. Please note the PROP 65 warning regarding potential health risks associated with this product. Ensure proper wiring and installation to maximize lifespan and performance of the switch.

Features:

• 10A continuous current rating at 12V DC for reliable operation

• Can be wired for normally open or normally closed configurations

• Includes .110 inch quick connect terminals for easy installation

• Red LED ring provides clear visual indication of switch status

• Supports up to 40,000 switching cycles for long-term durability

• Maximum LED operating current of 20mA for energy efficiency

• Operates within a temperature range of -10°C to 70°C (14°F to 158°F)

• Suitable for panel thickness up to 0.31 inches (7.87mm)

• Mounting hole diameter of 0.34 inches (19mm) for secure installation

• Designed for marine, automotive, and industrial applications
