Blue Sea Systems 4181 Backlit Push Button Switch for Marine and RV Applications

4181 Backlit Push Button Switch OFF/(ON) - 15A

Features:

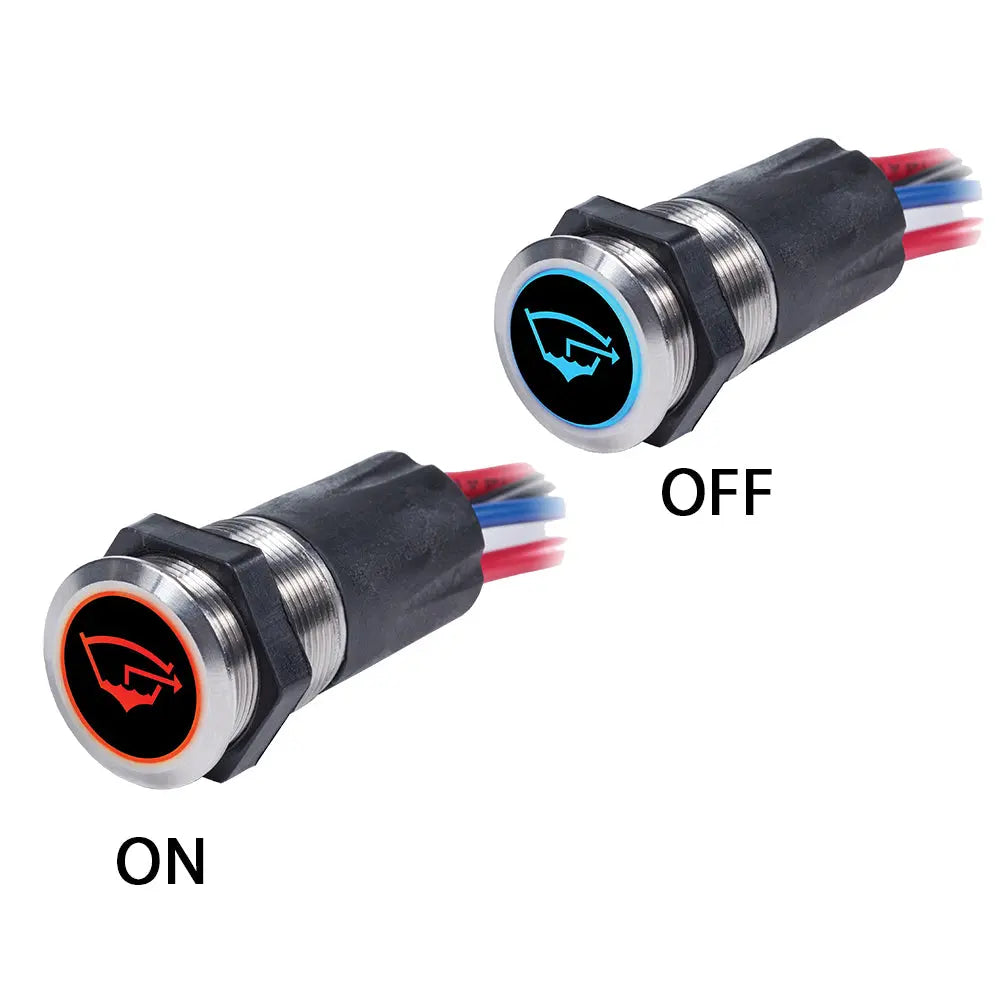

• Backlit button is blue when OFF and red when ON
• Five ICON labels included: Accessory, Lights, Anchor Light, Running Light, and Bilge Pump
• Additional 50 ICON label kit sold separately

Specifications:

• Action: OFF-(ON)
• Amperage: 15A @ 12V DC
• Nominal Voltage: 12V DC
• Maximum Voltage: 15V DC
• Maximum LED Operating Current: 20mA
• Switching Cycles: 10,000
• Temperature Range: -20C to 55C
• Termination: 3" - Bare Wire Pigtail
• Wire Size: Black Blue Wires 18 AWG / Red Red/White Wires 14AWG

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 4181 Backlit Push Button Switch offers reliable control for your boat or RV, rated at 15 amps for 12V DC systems. Its distinctive backlit feature illuminates blue when off and red when on, providing clear visual feedback in low-light conditions. The switch includes five icon labels—Accessory, Lights, Anchor Light, Running Light, and Bilge Pump—that help identify its function at a glance, with additional icon labels available separately for further customization. Crafted for durability, this switch is designed to withstand harsh marine environments with a temperature range from -20°C to 55°C, ensuring consistent operation regardless of weather conditions. The switch features a bare wire pigtail termination with 3 inches of wire, compatible with 18 AWG and 14 AWG wire sizes, facilitating easy installation and secure connections. Its high switching cycle count of 10,000 demonstrates long-term reliability, making it suitable for both recreational and professional applications. The device's maximum voltage rating of 15V DC and maximum LED operating current of 20mA ensure safe and efficient operation. Please note that this product contains chemicals that may pose health risks, such as di(2-ethylhexyl)phthalate (DEHP), which is associated with reproductive harm, as noted by California's Proposition 65. For more information, visit P65Warnings.ca.gov. Enhance your control panel with this versatile, high-quality switch designed for demanding marine and RV use, combining safety, convenience, and durability in a compact, easy-to-install package.

Features:

• Backlit button illuminates blue when off and red when on for clear visibility

• Includes five icon labels: Accessory, Lights, Anchor Light, Running Light, and Bilge Pump

• Additional icon label kit available separately for customization

• Rated for 15 amps at 12 volts DC for reliable power switching

• Designed for durable operation with a temperature range from -20°C to 55°C

• High switching cycle capacity of 10,000 cycles for long-term use

• Easy installation with 3-inch bare wire pigtail termination and compatible wire sizes
