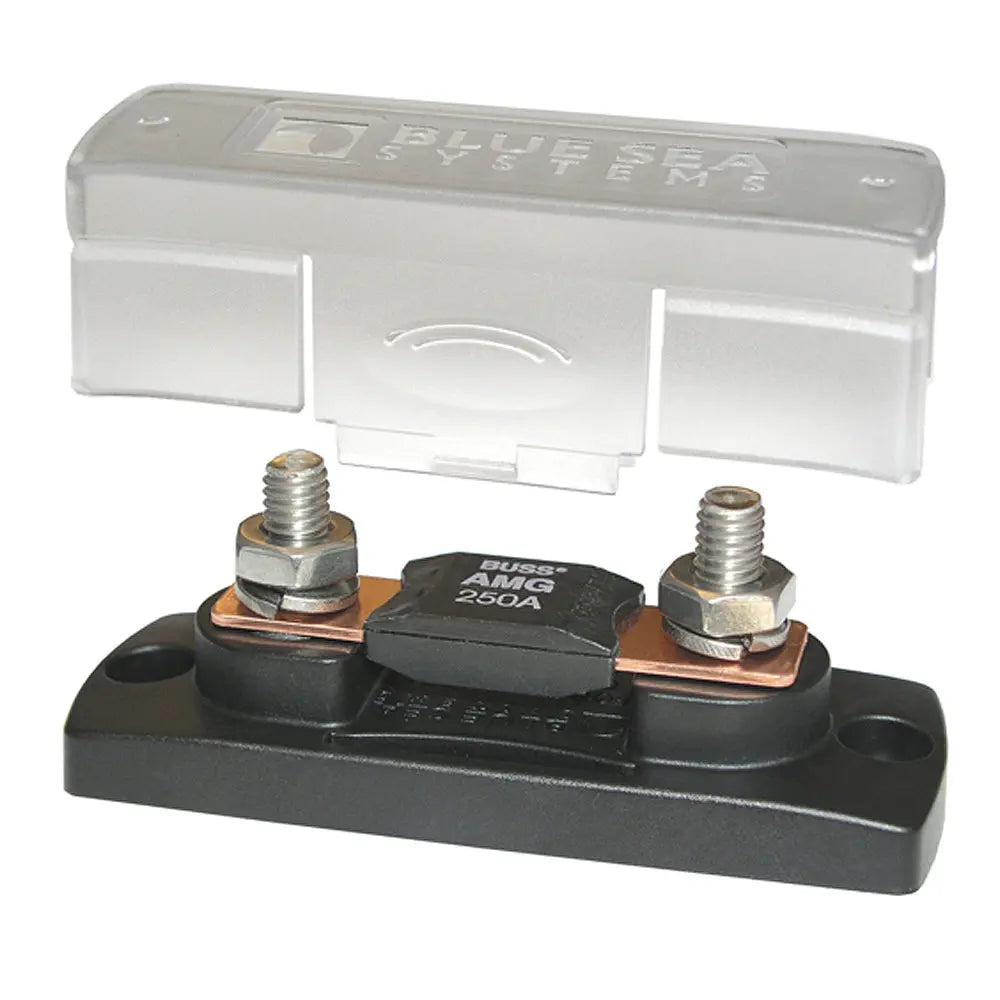

Blue Sea Systems 5001 Fuse Block MEGA 100-300A with Cover for Marine and Industrial Applications

5001 Fuse Block MEGA 100-300A with Cover

Features:

• The most economical system for 100-300 Ampere fusing
• Insulating cover satisfies ABYC/USCG requirements and cover breakouts allow wire access in any direction
• For use on systems up to 32V DC
• 5/16" stud terminals accept 5/16" (M8) Ring Terminals, 14AWG to 2/0 AWG Wire
• Stainless steel studs provide resistance to corrosion and high torquing for excellent electrical contact
• UL 94-V0 base resists high heat
• Insert molded studs ensure secure fuse mounting

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 5001 Fuse Block MEGA provides a reliable and cost-effective solution for protecting electrical systems with currents between 100 and 300 amperes. Designed for use on systems up to 32 volts DC, this fuse block features a robust construction with insert molded stainless steel studs that ensure secure fuse mounting and excellent electrical contact. The insulating cover not only safeguards the fuse but also satisfies ABYC and USCG requirements, with breakout points allowing wire access in any direction for flexible installation. The 5/16" stud terminals are compatible with 5/16" (M8) ring terminals and support wire sizes ranging from 14 AWG to 2/0 AWG, making it suitable for a wide variety of wiring configurations. The UL 94-V0 rated base resists high heat, contributing to the overall safety and durability of the fuse block. Crafted with corrosion-resistant stainless steel studs, the device can withstand harsh marine environments and high torque tightening, ensuring long-lasting electrical connections. This fuse block is ideal for marine, RV, and industrial applications where dependable overcurrent protection is essential. Please note that the product may contain chemicals such as di(2-ethylhexyl)phthalate (DEHP), which are known to cause health issues, and additional safety information is available at P65Warnings.gov.

Features:

• Economical system suitable for 100-300 Ampere fusing

• Insulating cover satisfies ABYC/USCG standards with versatile wire breakout points

• Designed for systems up to 32V DC

• 5/16" stud terminals compatible with ring terminals and wire sizes from 14 AWG to 2/0 AWG

• Stainless steel studs provide corrosion resistance and high torque capacity for reliable electrical contact

• UL 94-V0 rated base resists high heat for safety

• Insert molded studs ensure secure fuse mounting for dependable performance
