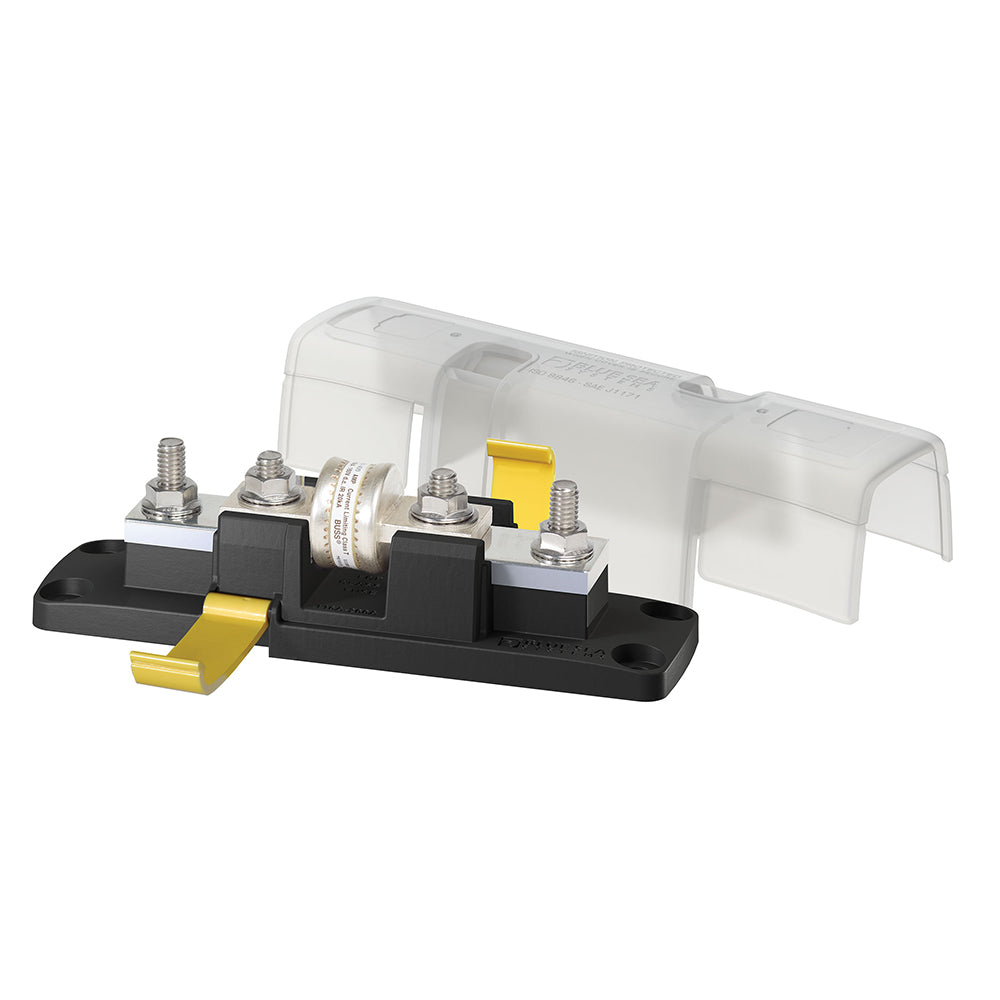

Blue Sea Systems 5007100 Class T Fuse Block with Insulating Cover – 110 to 200 Amps

• Four stud design provides ample access around connecting stud to install large cable lugs without obstruction from the fuse

• Insulating cover satisfies ABYC/USCG insulation requirements

• Cover breakouts allow wire access in any direction

• Stud design ensures secure fuse mounting even with high heat

• Stainless steel studs provide resistance to corrosion and high torque

• One-piece stainless flange nuts ensure safe and secure connections

• UL 94-V0 base resists high heat

• Cable Size: Up to 4/0 AWG

• Ignition Protected: Yes

• Maximum Amperage: 200A

• Maximum Voltage: 160V DC

• Fuse Mounting Block: Tin-Plated Copper

• Terminal Stud Size: 5/16"-18 (M8)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 5007100 Class T Fuse Block offers reliable circuit protection for marine and vehicle electrical systems, supporting fuse ratings from 110 to 200 amps. Designed with a four-stud configuration, it provides ample access around the connection points, making it easier to install large cable lugs without obstruction. The fuse block includes an insulating cover that complies with ABYC and USCG insulation standards, ensuring safety and preventing accidental contact with live components. Cover breakouts allow wiring access in any direction, providing flexibility during installation and maintenance. Crafted with stainless steel studs, this fuse block ensures secure mounting even under high heat conditions and offers resistance to corrosion and high torque, extending the lifespan of your electrical connections. The one-piece stainless flange nuts contribute to safe, secure, and durable connections, while the UL 94-V0 base material resists high heat, adding an extra layer of safety and reliability. Compatible with cable sizes up to 4/0 AWG and rated for a maximum voltage of 160V DC, this fuse block is ideal for inverter systems, marine applications, or any DC electrical system requiring fast-acting circuit protection. The fuse mounting block is constructed from tin-plated copper for excellent conductivity and durability, ensuring consistent performance across demanding environments. With ignition protection and a robust design, the Blue Sea Systems 5007100 fuse block provides peace of mind for demanding electrical setups, ensuring secure and compliant connections in a compact and efficient package. Please note that this product contains chemicals such as di(2-ethylhexyl)phthalate (dehp), which are known to cause reproductive harm, as detailed by California regulations. For more information, visit P65Warnings.ca.gov.

Features:

• Four stud design provides ample access around connecting studs for large cable lugs

• Insulating cover complies with ABYC and USCG insulation requirements

• Cover breakouts allow wiring access in any direction

• Secure fuse mounting with high heat tolerance using stud design

• Stainless steel studs resist corrosion and support high torque

• One-piece stainless flange nuts ensure safe, secure connections

• UL 94-V0 base material resists high heat

• Supports cable sizes up to 4/0 AWG

• Rated for maximum 200A and 160V DC operation

• Constructed from tin-plated copper for optimal conductivity
