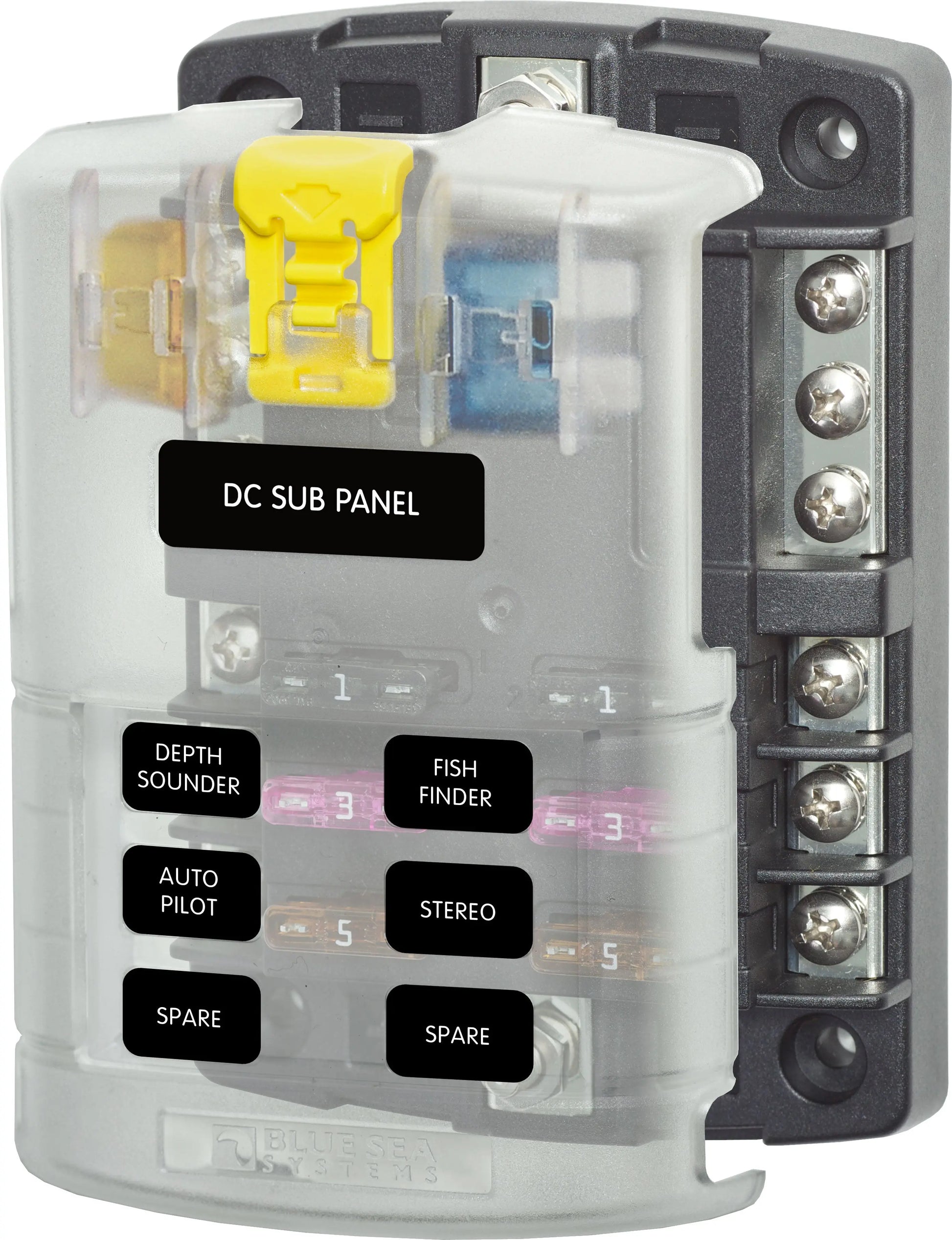

Blue Sea Systems 5025 6-Gang Blade Fuse Block with Negative Bus and Cover

Blue Sea 5025 6-Gang Fuse Block ST ATO/ATC Negative Bus and Cover

The Blue Sea Systems 5025 fuse block offers a reliable and space-efficient solution for circuit protection in marine and industrial applications. Designed with six circuits, this fuse block features a positive distribution bus with a #10-32 stud, capable of handling up to 100 amps per block. Its compact design makes it ideal for situations where available circuit breakers are limited, providing a centralized location for fuse management. The fuse block is suitable for 24-hour circuits and can be used with ring or snap fork terminals for versatile wiring options.

The cover complies with ABYC and USCG requirements for insulation, ensuring safety and durability in marine environments. It includes an easy-to-open push button latch that facilitates quick access to fuses and storage for two spare fuses. The label recesses accommodate Blue Sea Systems Small Format Labels for easy circuit identification, complemented by 20 write-on circuit labels included with the fuse block. Constructed with tin-plated copper buses and fuse clips, the unit delivers excellent conductivity and corrosion resistance. It accepts ATO(R) and ATC(R) fast-acting blade fuses, which are sold separately, making it adaptable to various fuse types.

Ideal for electronics that have individual ON-OFF switches and do not require circuit breaker switching, the Blue Sea 5025 fuse block consolidates fuse management into a single, accessible location. Its space-saving design simplifies wiring and enhances organization within limited panel spaces. Suitable for use in marine, RV, and industrial applications, this fuse block ensures reliable circuit protection for a wide range of electrical systems, supporting safety and efficient operation in demanding environments.

Features:

• Positive distribution bus with #10-32 stud for reliable power distribution

• Can be used for 24-hour circuits, suitable for continuous operation

• Cover complies with ABYC/USCG insulation requirements with push button latch for easy fuse access

• Includes storage for two spare fuses and label recesses for circuit identification

• Constructed with tin-plated copper buses and fuse clips for corrosion resistance and conductivity

• Accepts ring or snap fork terminals for flexible wiring options

• Compatible with ATO(R) and ATC(R) fast-acting blade fuses (sold separately)

• Space-saving design ideal for systems with limited circuit breaker availability

• Durable, marine-grade construction suitable for demanding environments
