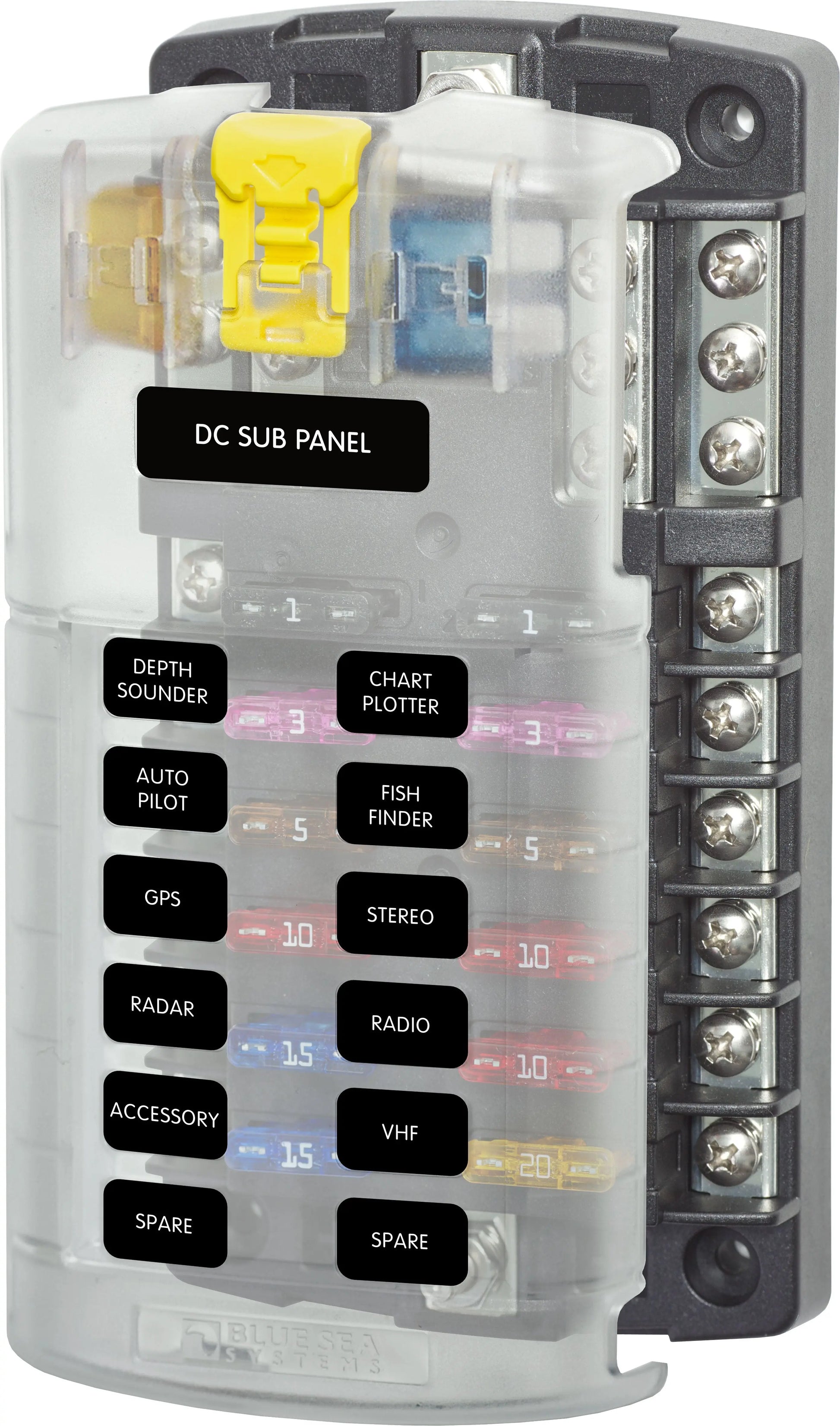

Blue Sea Systems 5026 12-Gang Blade Fuse Block with Negative Bus and Cover

Blue Sea 5026 12-Gang Fuse Block ST ATO/ATC Negative Bus and Cover

The Blue Sea Systems 5026 12-Gang Blade Fuse Block offers a reliable and space-efficient solution for circuit protection in marine and RV applications. Designed with a positive distribution bus featuring a #10-32 stud, this fuse block can handle circuits up to 100 amps per block, making it suitable for various electrical configurations. Its compact design helps optimize limited space while providing easy access to fuses through an integrated push button latch cover that complies with ABYC and USCG standards. The cover also includes storage for two spare fuses and recesses for label placement, ensuring clear circuit identification with included labels for quick troubleshooting and maintenance. Constructed with tin-plated copper buses and fuse clips, the fuse block accepts both ring and snap fork type terminals, and is compatible with ATO(R) and ATC(R) fast acting blade fuses, which are sold separately. This configuration is ideal for applications where individual electronics require dedicated fuse protection without the need for circuit breakers, simplifying wiring and reducing clutter. The fuse block’s durable cover not only provides insulation but also safeguards against accidental contact, enhancing safety during operation. Its versatile design and robust construction make it suitable for marine, RV, or industrial environments, where reliable circuit protection is paramount. The unit's compact footprint, combined with its easy-to-use features, ensures an efficient setup that can be integrated into existing electrical systems seamlessly. With a clear focus on safety, ease of use, and reliability, the Blue Sea Systems 5026 fuse block is an essential component for managing multiple circuits efficiently in demanding environments.

Features:

• Positive distribution bus with #10-32 stud for secure connections

• Can be used for 24-hour circuits for continuous operation

• Insulated cover with push button latch for easy fuse access and ABYC/USCG compliance

• Includes storage for two spare fuses and label recesses for circuit identification

• Constructed with tin-plated copper buses and fuse clips for corrosion resistance

• Accepts ring or snap fork type terminals for flexible wiring options

• Compatible with ATO(R) and ATC(R) fast acting blade fuses (sold separately)

• Suitable for circuits up to 100 amps per block for versatile applications

• Compact design ideal for limited space environments such as boats and RVs
