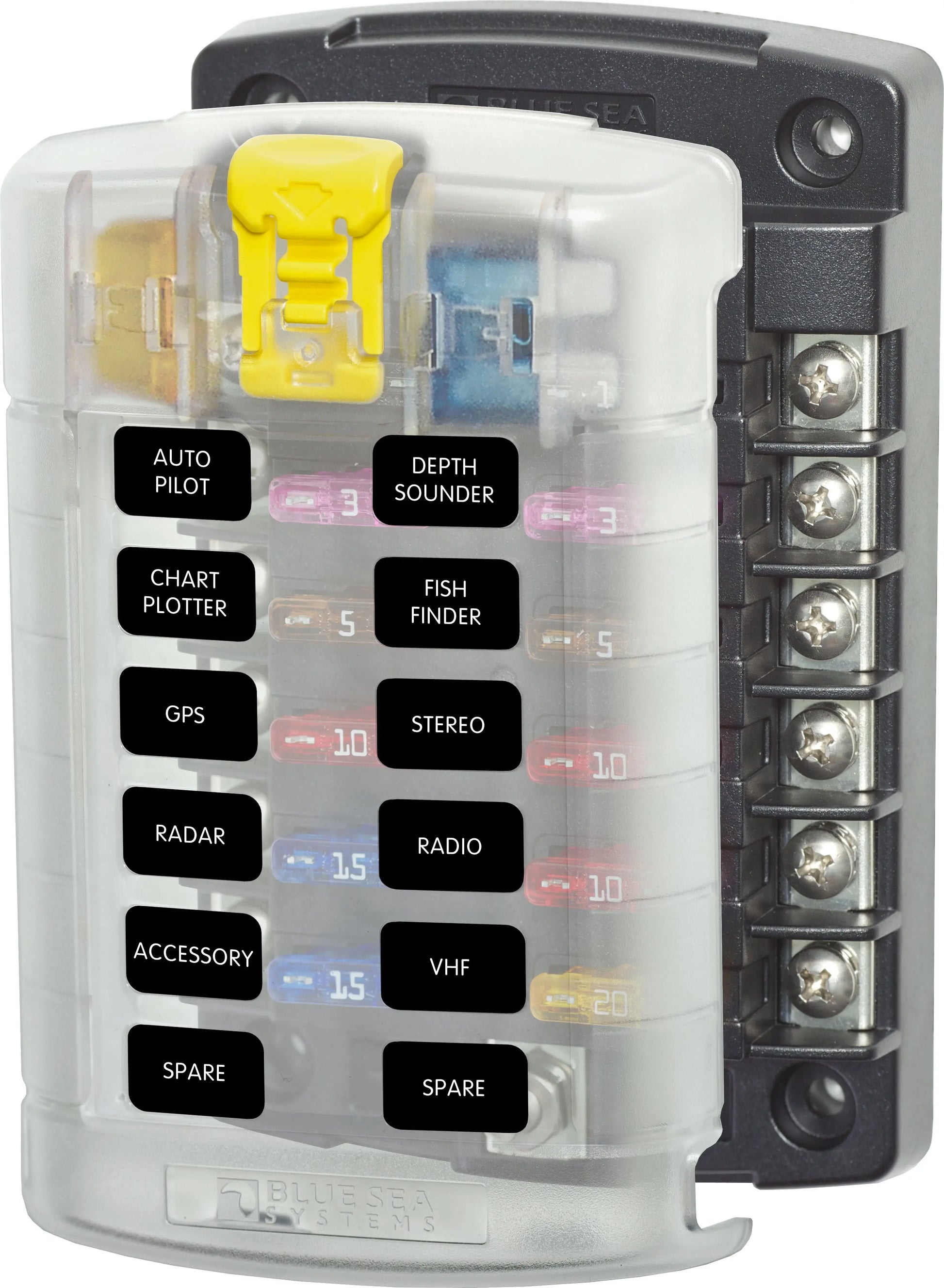

Blue Sea Systems 5029 12-Gang Fuse Block with Cover and Insulated Cover for Marine and RV Applications

Blue Sea 5029 12-Gang Fuse Block ST ATO/ATC with Cover

The Blue Sea Systems 5029 12-Gang Fuse Block is a versatile and reliable solution for distributing electrical power in marine, RV, and other mobile applications. Designed with a positive distribution bus featuring a #10-32 stud, this fuse block provides a robust connection point for multiple circuits. Its capacity allows for a maximum of 100 amps per circuit, making it suitable for high-current applications. The fuse block includes a cover that meets ABYC and USCG requirements for insulation, ensuring safety and compliance in marine environments. The cover features an easy-to-open push button latch for quick fuse access, storage for two spare fuses, and label recesses compatible with Blue Sea Systems Small Format Labels for clear circuit identification. Additionally, the fuse block comes with 20 write-on circuit labels for further organization and documentation. Constructed with tin-plated copper buses and fuse clips, this fuse block ensures excellent conductivity and corrosion resistance. It accepts ring or snap fork type terminals and is compatible with ATO(R) and ATC(R) fast-acting blade fuses, which are sold separately. The design supports 24-hour circuits, providing continuous power to essential systems. Whether used in boats, RVs, or off-grid power setups, the Blue Sea Systems 5029 fuse block offers a durable and organized solution for managing multiple electrical circuits safely and efficiently.

Features:

• Positive distribution bus with #10-32 stud for secure connections

• Can be used for 24-hour circuits to ensure continuous power supply

• Insulated cover meets ABYC and USCG standards for marine safety

• Push button latch allows easy access to fuses and includes storage for two spares

• Label recesses compatible with Blue Sea Systems Small Format Labels for clear circuit identification

• Includes 20 write-on circuit labels for organization

• Constructed with tin-plated copper buses and fuse clips for corrosion resistance

• Accepts ring or snap fork type terminals for versatile wiring options

• Compatible with ATO(R) and ATC(R) fast-acting blade fuses (sold separately)
