Blue Sea Systems 5032 12-Gang Split Bus Fuse Block with Cover and Negative Bus

Blue Sea 5032 12-Gang 2-Group Fuse Block ST ATO/ATC Negative Bus and Cover

The Blue Sea Systems 5032 ST Blade Split Bus Fuse Block offers a compact and reliable solution for circuit protection in marine and RV applications. Designed with 12 circuits divided into two isolated groups of six, this fuse block is ideal for managing multiple electronic systems with ease. It can be used with two separate batteries or a single battery setup that requires a combination of 24-hour and switched circuits, providing flexible power management options. The fuse block features screw terminals that accept ring terminals for secure wiring connections, while one-piece stainless flange nuts ensure safety and durability in harsh environments.

Constructed with tin-plated copper buses and fuse clips, the fuse block meets industry standards for corrosion resistance and conductivity. The clear insulating cover includes label recesses and storage for two fuses, satisfying ABYC and USCG insulation requirements, making it easy to identify circuits and maintain the system. The push-button latch provides effortless access to fuses for quick maintenance or replacements, reducing downtime. This fuse block's design emphasizes safety, reliability, and ease of installation, making it suitable for various marine and RV electrical systems.

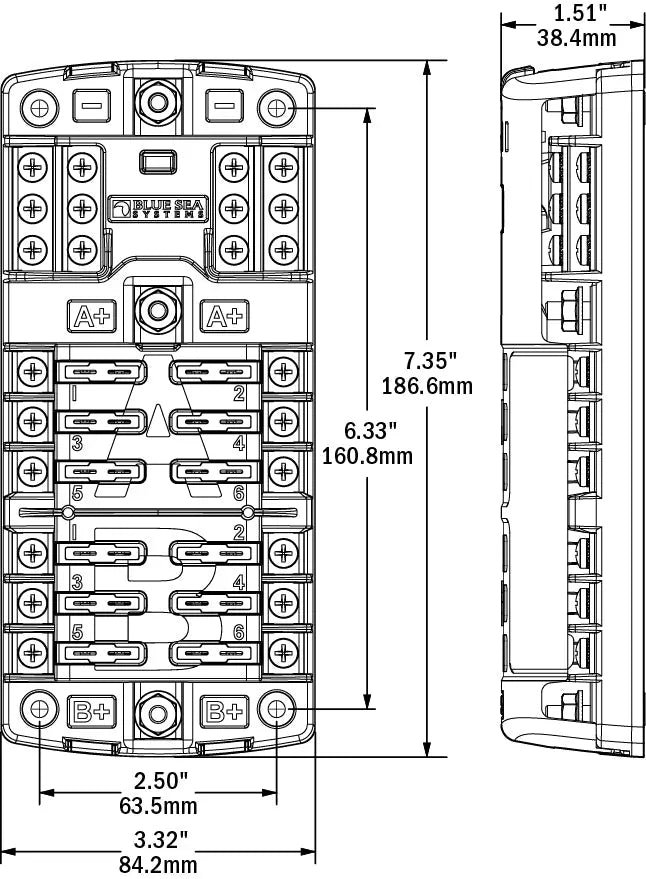

The 12-circuit fuse block is capable of handling up to 100 amps per block and 30 amps per circuit at a maximum voltage of 32V DC. Mounting is straightforward with #8 screws (M4), and the bus terminals utilize #10-32 studs for secure connections. Recommended torque settings ensure proper fastening without damaging components. Its lightweight design, approximately 0.75 pounds, and compact dimensions make it a space-efficient addition to any electrical panel. Overall, the Blue Sea Systems 5032 fuse block provides a cost-effective and space-saving solution for consolidating circuit protection while maintaining compliance with marine safety standards.

Features:

• Provides two isolated groups of six circuits for flexible power management

• Suitable for use with two batteries or a single battery with mixed circuits

• Screw terminals accept ring terminals for secure wiring

• One-piece stainless flange nuts ensure safe and durable connections

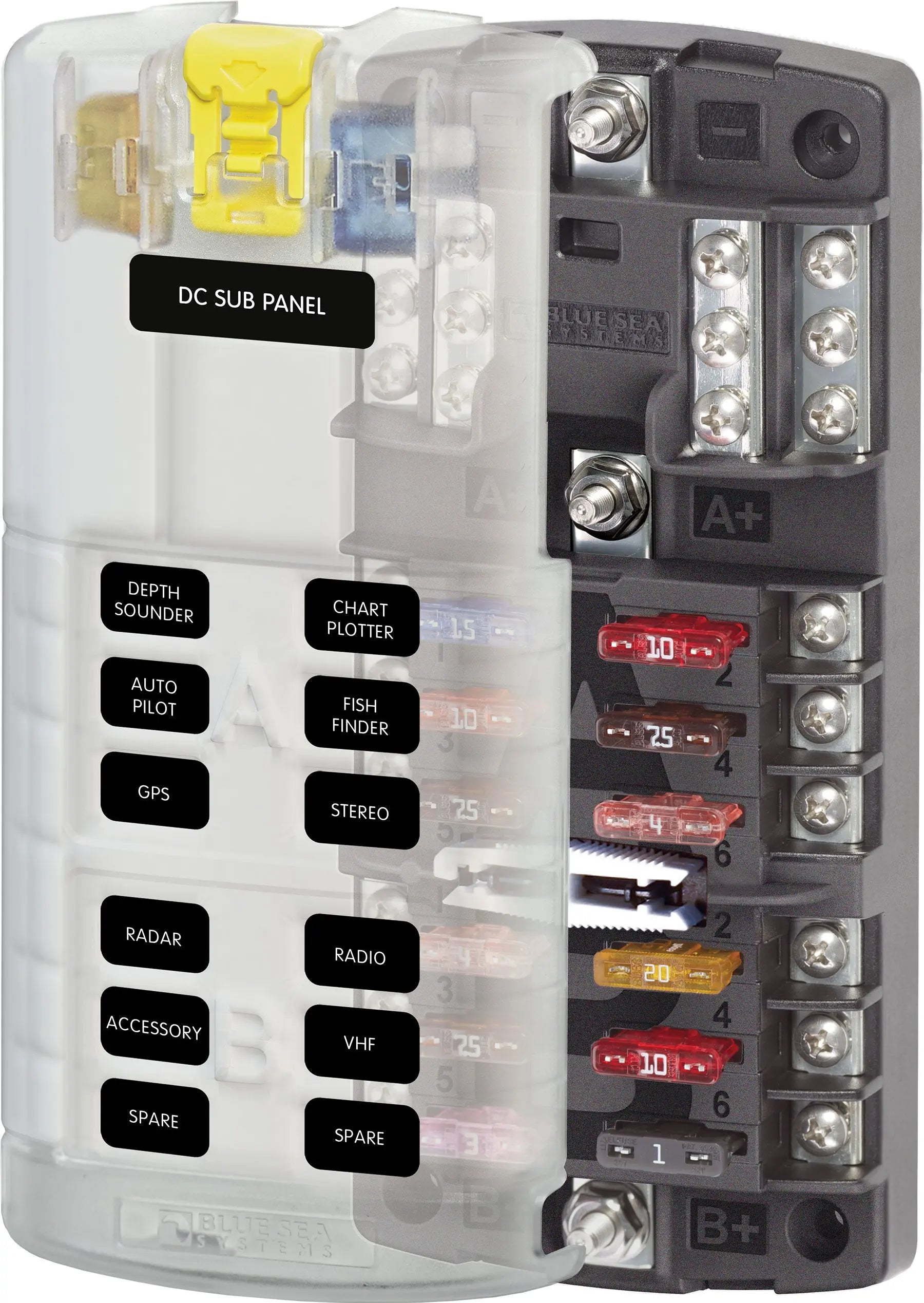

• Clear insulating cover with label recesses and fuse storage for easy identification and maintenance

• Push-button latch allows quick access to fuses

• Tin-plated copper buses and fuse clips for corrosion resistance and conductivity

• Capable of handling up to 100A per block and 30A per circuit at 32V DC

• Easy to mount with #8 screws and secure with #10-32 studs

• Lightweight and compact design suitable for limited space applications
