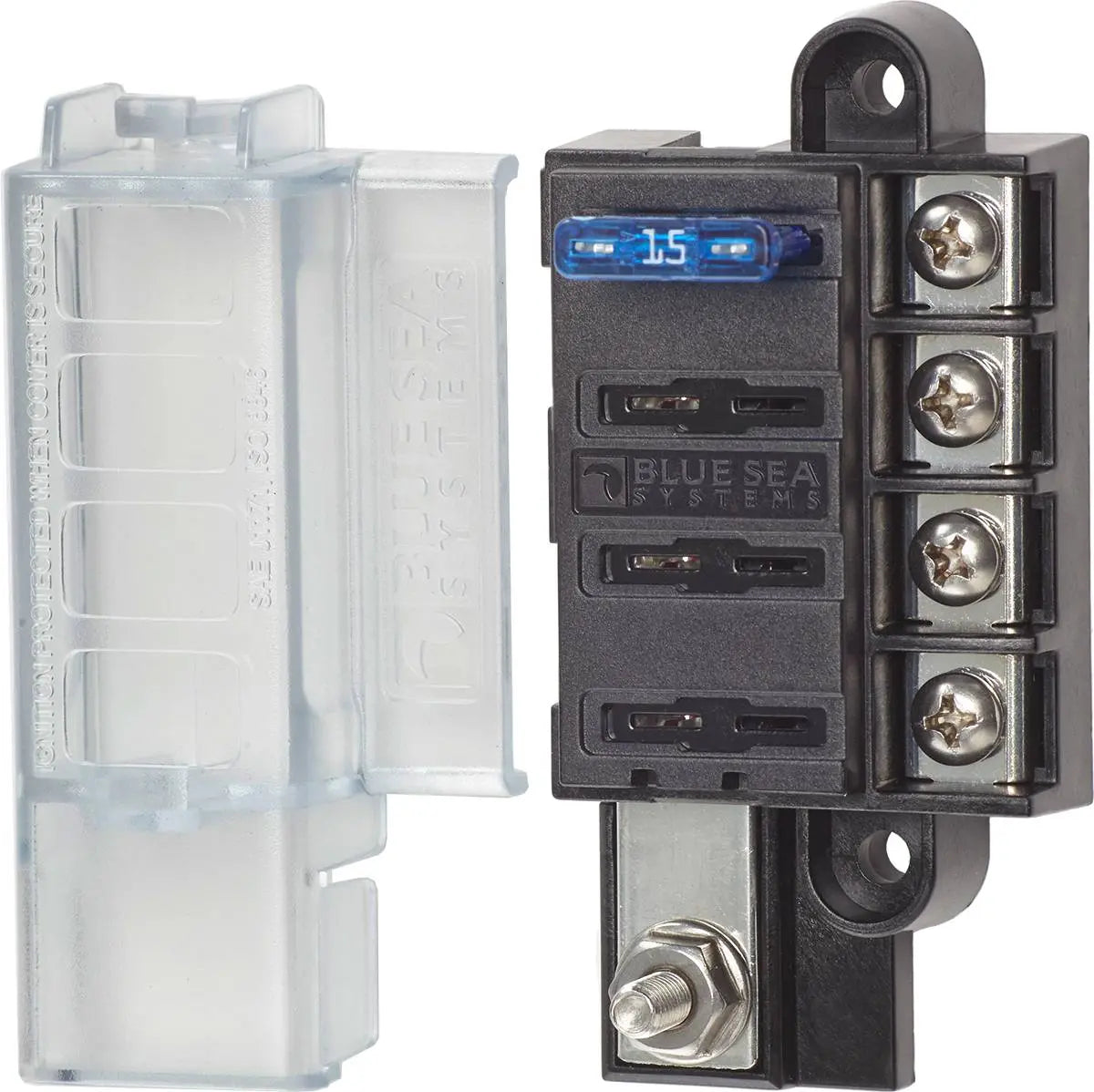

Blue Sea Systems 5045-BSS ST Blade Compact Fuse Block with Cover - 4 Circuits, 100A Max

Blue Sea 5045 4-Circuit Fuse Block ST ATO/ATC with Cover

The Blue Sea Systems 5045-BSS ST Blade Compact Fuse Block provides reliable circuit protection for your marine or automotive applications. Designed with a single side wiring entry, this fuse block minimizes installation space while maintaining easy access to wiring connections. Its ignition-protected design ensures safety when the cover is securely in place, meeting ISO 8846 and SAE J1171 standards for use in gasoline engine compartments, making it a dependable choice for boaters and vehicle enthusiasts alike. The fuse block features tin-plated copper buses and fuse clips for enhanced corrosion resistance and electrical conductivity, ensuring long-term durability in harsh environments.

Features:

• Ignition protected when cover is secure, meets ISO 8846 and SAE J1171 standards for gasoline engine compartments

• Single side design enables wire entry from one side, reducing installation footprint

• Insulating cover complies with ABYC and USCG insulation requirements for marine safety

• Constructed with tin-plated copper buses and fuse clips for corrosion resistance

• Accepts ring or snap fork type terminals for flexible wiring options

• Includes four write-on circuit labels for easy identification

• Maximum amperage of 100A per block and 30A per circuit for reliable protection

• Designed for DC voltage systems up to 32V for versatile applications

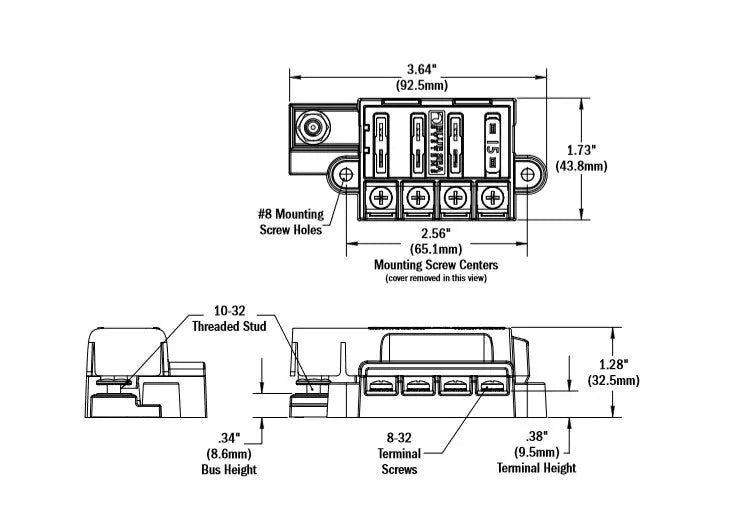

• Mounts using #8 screw (M4) with a terminal stud size of #10-32 for secure installation

• Terminal stud torque: 24 in-lb (2.71 Nm); screw terminal torque: 18 in-lb (2.03 Nm)
