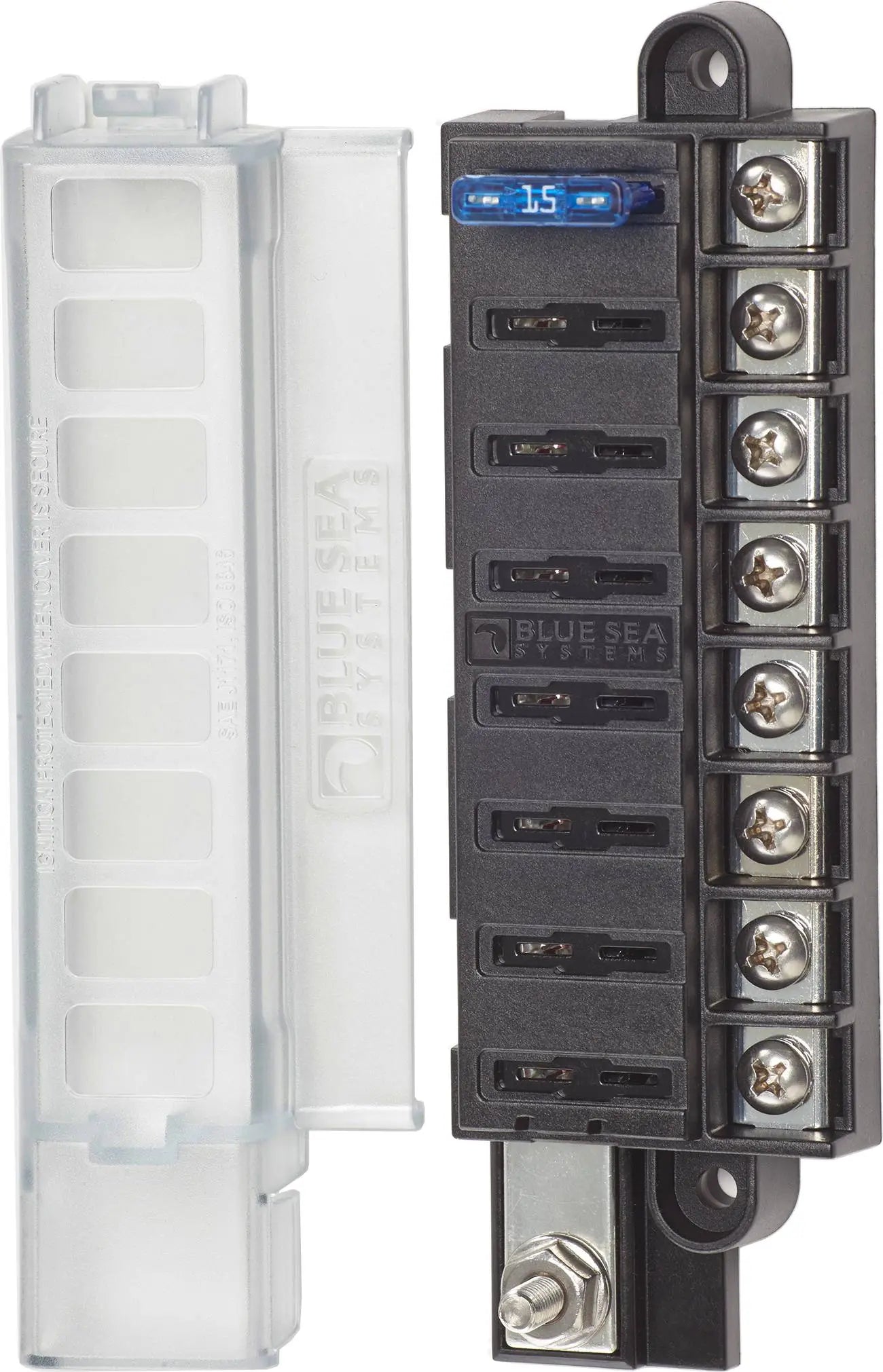

Blue Sea Systems 5046 8-Circuit Fuse Block with Cover – Compact Marine Fuse Panel

Blue Sea 5046 8-Circuit Fuse Block ST ATO/ATC with Cover

The Blue Sea Systems 5046 8-Circuit Fuse Block offers a reliable and space-efficient solution for managing multiple electrical circuits in marine and vehicle applications. Designed with a single side entry, this fuse block minimizes installation footprint while providing easy access for wiring. The ignition-protected design ensures safety in gasoline engine compartments when the cover is securely in place, meeting ISO 8846 and SAE J1171 standards. Constructed with tin-plated copper buses and fuse clips, it offers excellent electrical conductivity and corrosion resistance for long-term durability. The fuse block accepts both ring and snap fork type terminals, providing flexibility for various wiring configurations. Included with the fuse block are eight write-on circuit labels, making circuit identification straightforward and organized. Although fuses are sold separately, this fuse block is engineered to support up to 100 amps per block and 30 amps per circuit, with a maximum voltage of 32V DC. Mounting is simple with #8 screws (M4), and terminal stud torque is set at 24 in-lb for secure connections. The screw terminal type uses #8-32 screws with captive star lock washers, ensuring stability and safety during operation. Overall, the Blue Sea Systems 5046 fuse block delivers a robust and compact solution for electrical distribution in demanding environments, combining safety, flexibility, and ease of installation in a durable package.

Features:

• Ignition protected when cover is secure, meeting ISO 8846 and SAE J1171 standards

• Single side wire entry for reduced installation space

• Insulating cover complies with ABYC and USCG insulation requirements

• Constructed with tin-plated copper buses and fuse clips for corrosion resistance

• Accepts both ring and snap fork type terminals

• Includes 8 write-on circuit labels for easy identification
