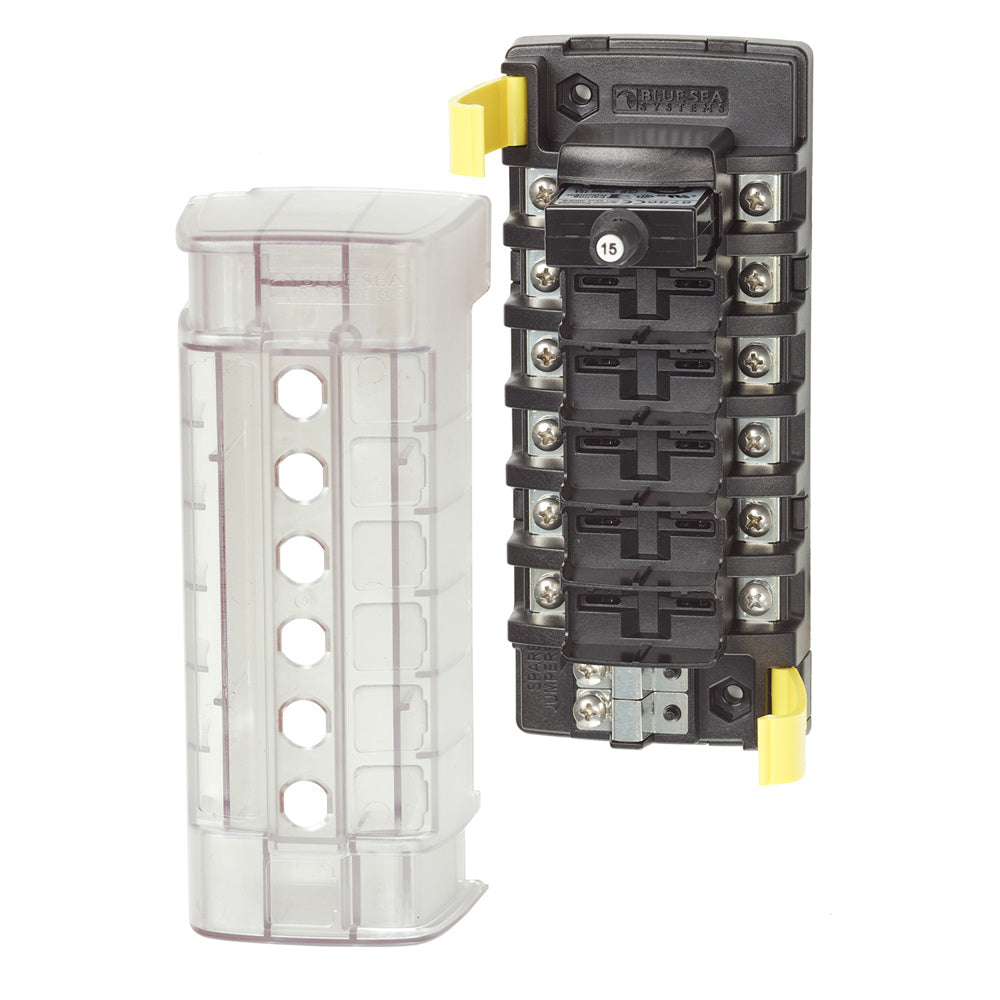

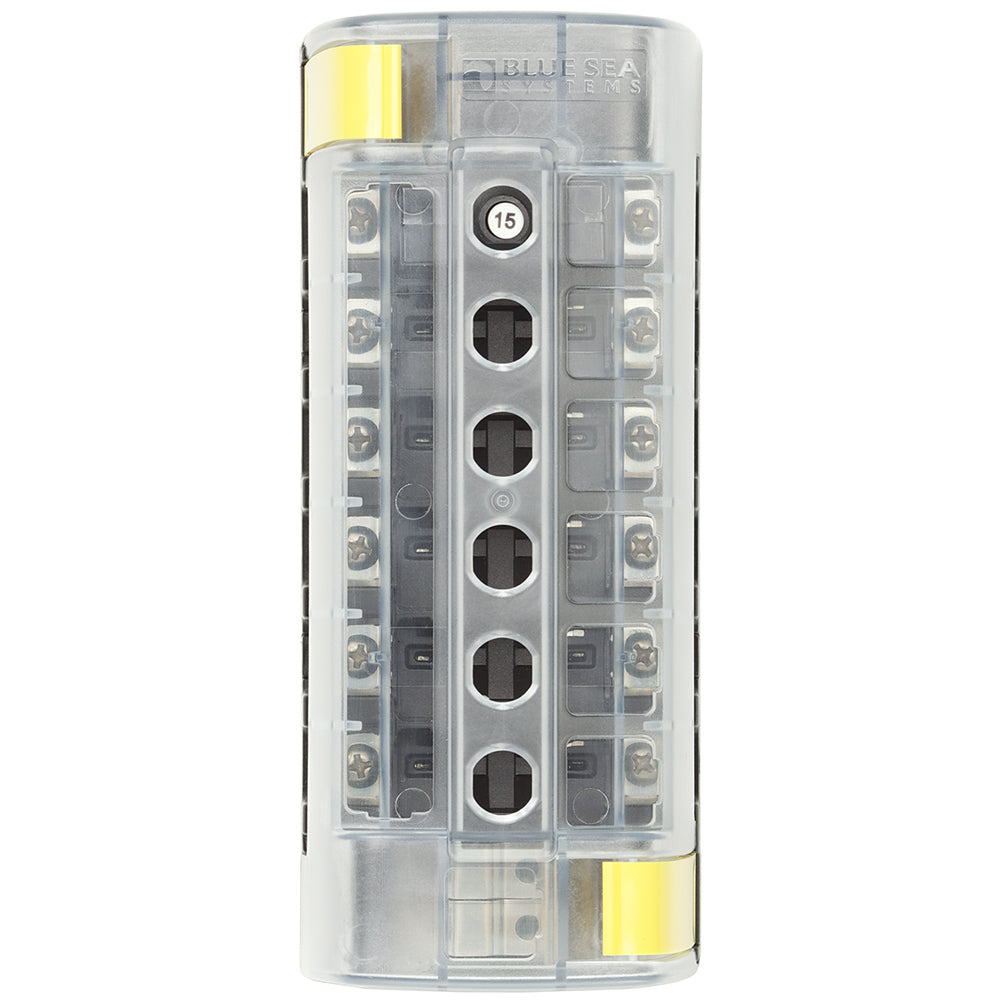

Blue Sea Systems 5050 ST CLB 6-Position Circuit Breaker Block for Marine and Automotive Applications

ST CLB Circuit Breaker Block - 6 Position

Features

• Quick connect clips allow circuit breakers to snap easily into place

• Tin-plated copper busses and screw terminals

• Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements

• Easy to open clip on cover

• Breakouts allow wire access in two directions

• Accepts ring terminals

• Optional push button waterproof boots or dress nuts can be installed over cover

Specifications:
Circuits: 6
Maximum Amperage: 32A (per circuit) 40A (per jumped circuit group)
Maximum Voltage: 32V DC
Mounting: #8 Screw (M4) or #8 Nut
Source: Independent SourceMinimum Operating Temperature: -10 C
Maximum Operating Temperature: 60 C
Mounting Centers: 5.63"(143 mm)
Screw Terminal Type: #8-32 Screws with Captive Star Lock Washer
Height: 6.69"(169.93 mm)
Weight: 0.75lb (0.34 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 5050 ST CLB is a versatile 6-position circuit breaker block designed for reliable electrical distribution in marine, RV, and automotive systems. Constructed with durable tin-plated copper bus bars and secure screw terminals, this breaker block ensures optimal conductivity and long-term performance. Its quick connect clips enable effortless installation of circuit breakers, reducing setup time and simplifying maintenance. The clear insulating cover features square format label recesses, satisfying ABYC and USCG insulation standards, and includes an easy-to-open clip for quick access. Breakouts on the cover allow wire access in two directions, providing flexibility in wiring configurations. This breaker block accepts ring terminals and can be upgraded with optional waterproof boots or dress nuts for enhanced protection against moisture and environmental elements.

Features:

• Quick connect clips allow circuit breakers to snap easily into place

• Tin-plated copper bus bars and screw terminals for reliable conductivity

• Clear insulating cover with square format label recesses meeting ABYC/USCG standards

• Easy to open clip on cover for quick access

• Breakouts enable wire access in two directions

• Accepts ring terminals for versatile wiring options

• Optional waterproof boots or dress nuts can be installed over the cover for added protection
