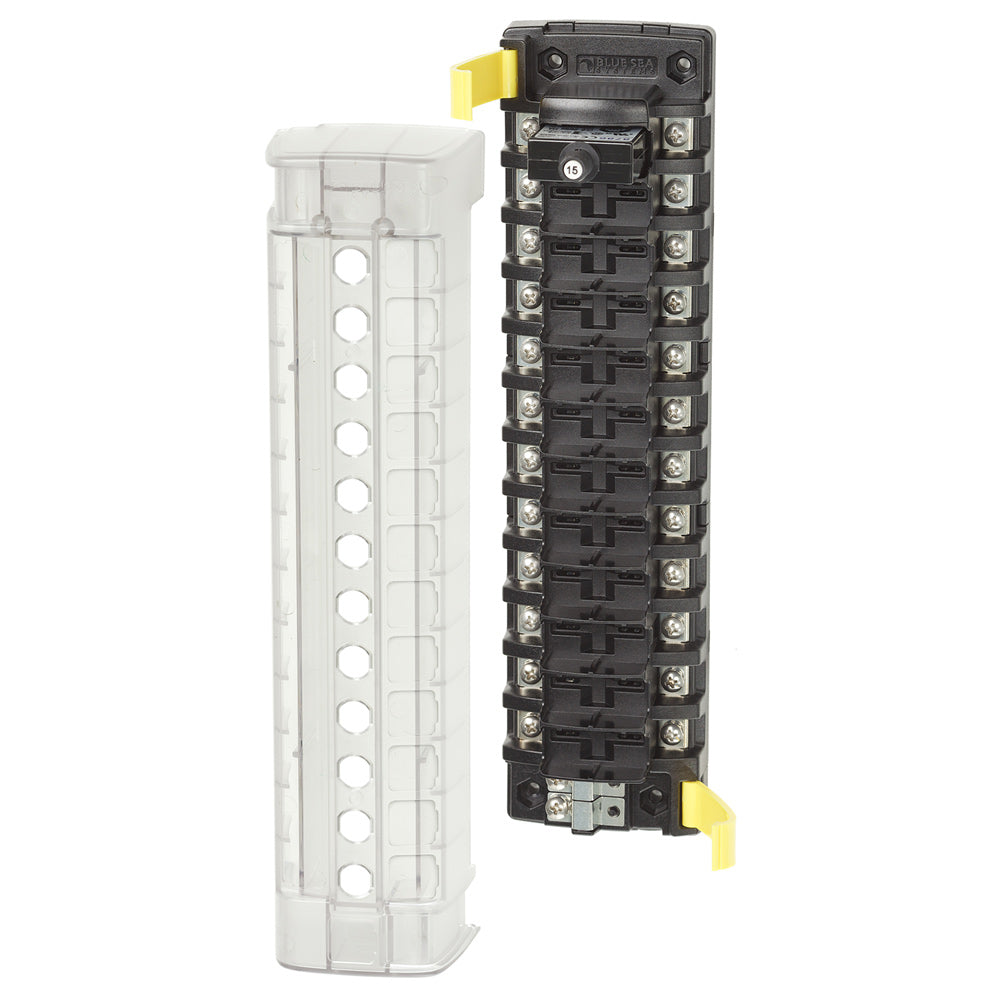

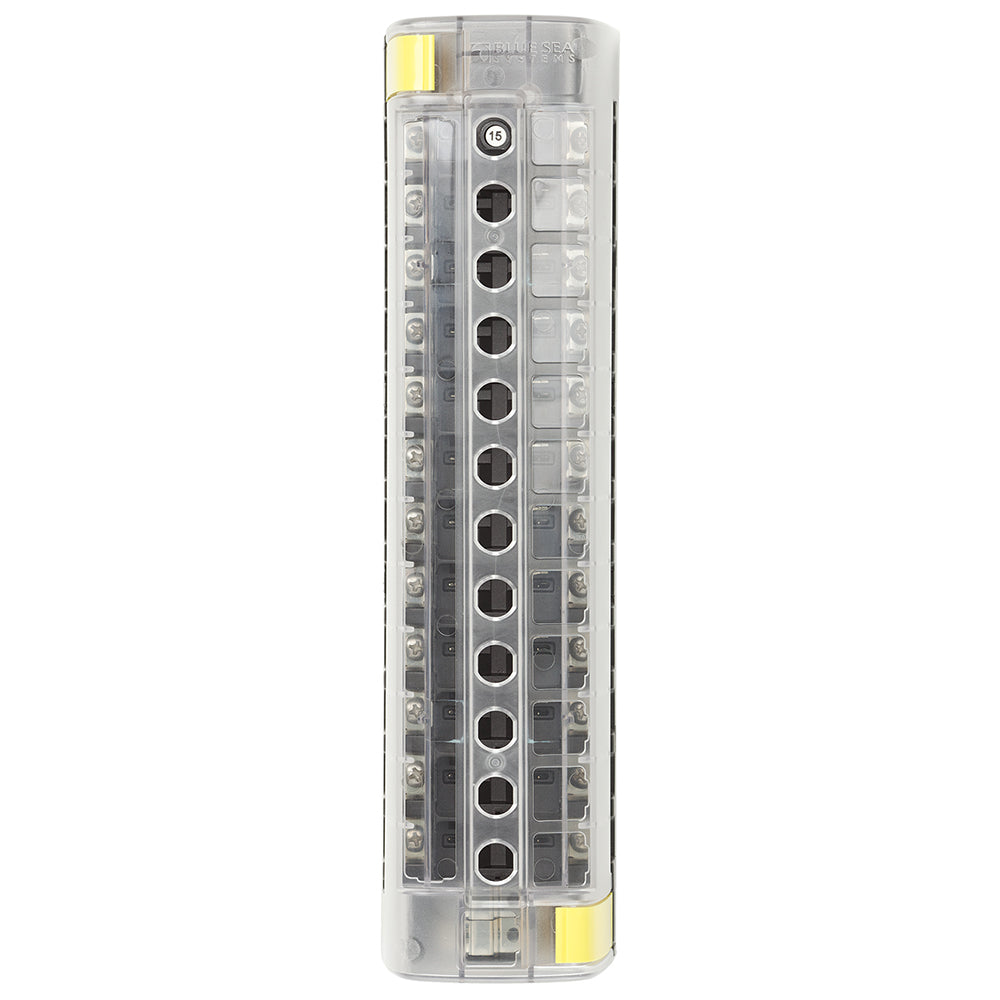

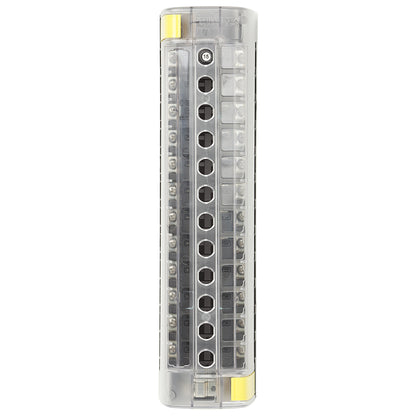

Blue Sea Systems 5051 ST CLB Circuit Breaker Block - 12 Position with Quick Connect Clips

ST CLB Circuit Breaker Block - 12 Position

Features

• Quick connect clips allow circuit breakers to snap easily into place

• Tin-plated copper busses and screw terminals

• Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements

• Easy to open clip on cover

• Breakouts allow wire access in two directions

• Accepts ring terminals

• Optional push button waterproof boots or dress nuts can be installed over cover

Specifications:
Circuits: 12
Maximum Amperage: 32A (per circuit) 40A (per jumped circuit group)
Maximum Voltage: 32V DC
Mounting: #8 Screw (M4) or #8 Nut
Source: Independent SourceMinimum Operating Temperature: -10 C
Maximum Operating Temperature: 60 C
Mounting Centers: 10.13"(257.3 mm)
Screw Terminal Type: #8-32 Screws with Captive Star Lock Washer
Height: 6.69"(169.93 mm)
Weight: 1.50lb (0.68 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 5051 ST CLB circuit breaker block offers a reliable and efficient solution for managing multiple circuits in marine or industrial applications. Designed with 12 positions, this breaker block accommodates circuit breakers up to 32 amps per circuit and supports a maximum of 40 amps in jumped circuit groups, making it suitable for high-current distribution. Its rugged construction features tin-plated copper bus bars and screw terminals, ensuring excellent electrical conductivity and durability. The clear insulating cover with square format label recesses not only provides easy identification but also complies with ABYC and USCG insulation standards, enhancing safety and compliance.
Easy installation is facilitated through quick connect clips that allow circuit breakers to snap securely into place. The breaker block is equipped with breakout wire access points in two directions, simplifying wiring and maintenance. It accepts ring terminals and can be customized with optional waterproof boots or dress nuts that can be installed over the cover, adding extra protection against environmental elements. The mounting process is straightforward with #8 screws or nuts, and the device's compact height of approximately 6.7 inches makes it suitable for tight spaces.
Constructed for reliable performance in demanding environments, the Blue Sea Systems 5051 ST CLB circuit breaker block operates within a temperature range from -10°C to 60°C. Its robust design ensures long-lasting service, making it an ideal choice for boat, RV, or industrial electrical systems. Please note, this product contains chemicals that may cause reproductive harm and should be handled with care according to safety guidelines. Overall, this breaker block combines safety, ease of use, and compliance to meet the needs of professional and DIY electrical installations.

Features:

• Quick connect clips allow circuit breakers to snap easily into place

• Tin-plated copper bus bars and screw terminals ensure reliable electrical connections

• Clear insulating cover with square format label recesses for easy identification and compliance

• Easy to open clip on cover facilitates quick access

• Breakouts enable wire access in two directions for flexible wiring options

• Accepts ring terminals for versatile wiring configurations

• Optional waterproof boots or dress nuts can be installed over the cover for added environmental protection
