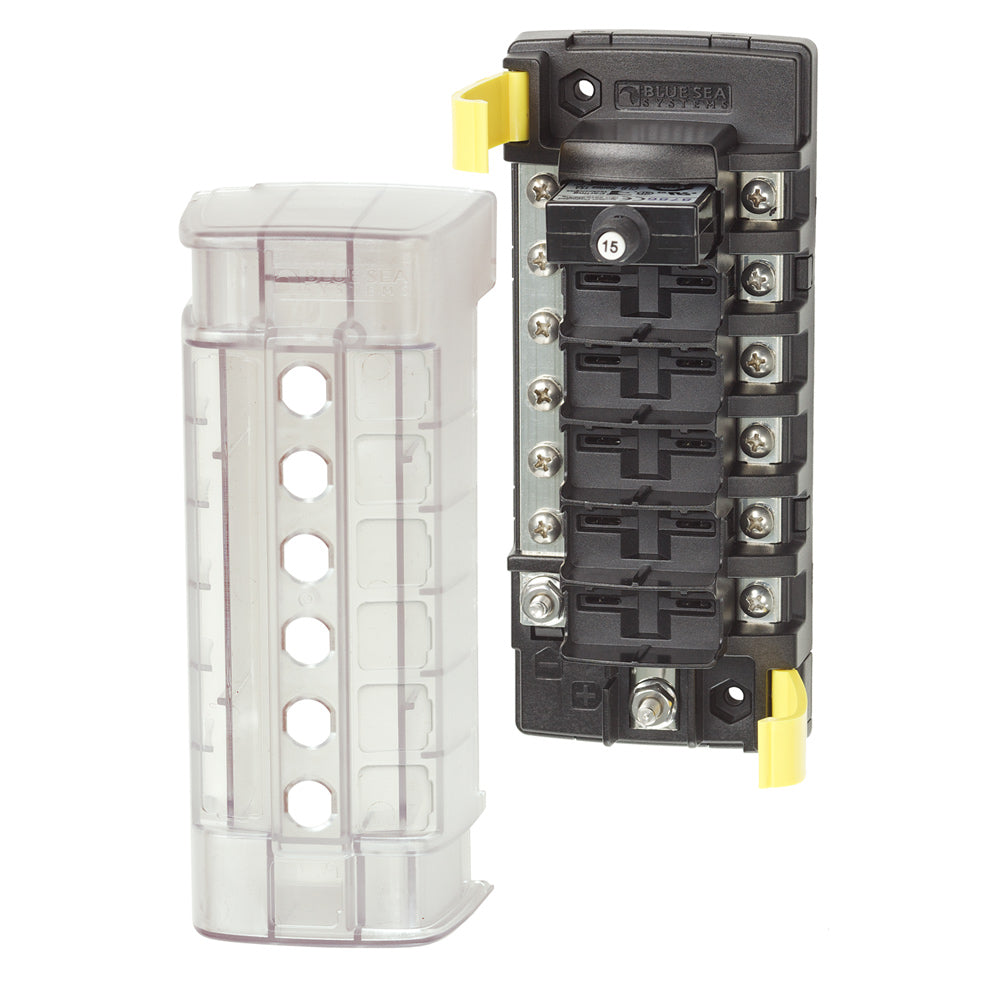

Blue Sea Systems 5052 ST CLB Circuit Breaker Block - 6 Position with Negative Bus

ST CLB Circuit Breaker Block - 6 Position w/Negative Bus

Features

• Quick connect clips allow circuit breakers to snap easily into place

• Tin-plated copper busses and screw terminals

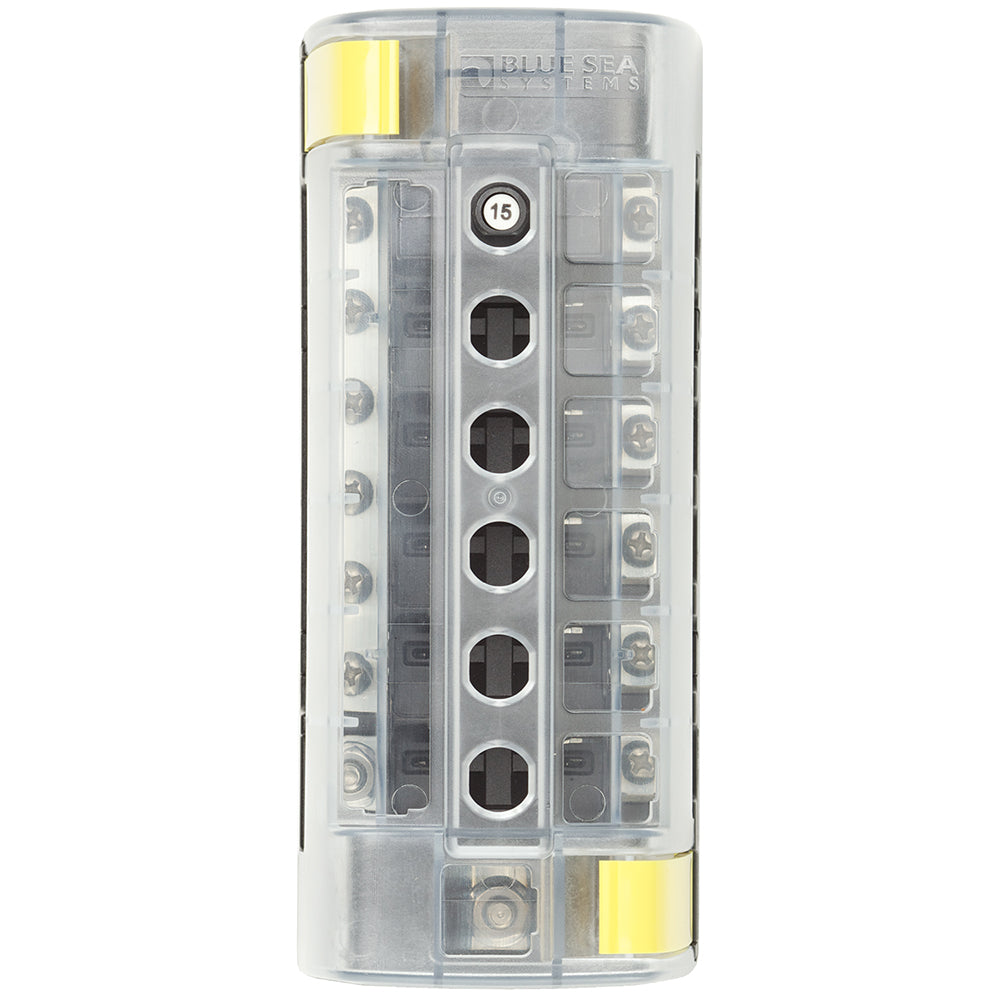

• Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements

• Easy to open clip on cover

• Breakouts allow wire access in two directions

• Accepts ring terminals

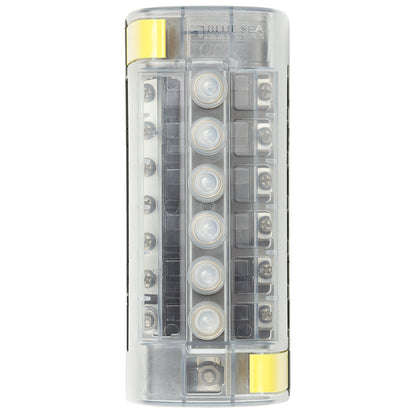

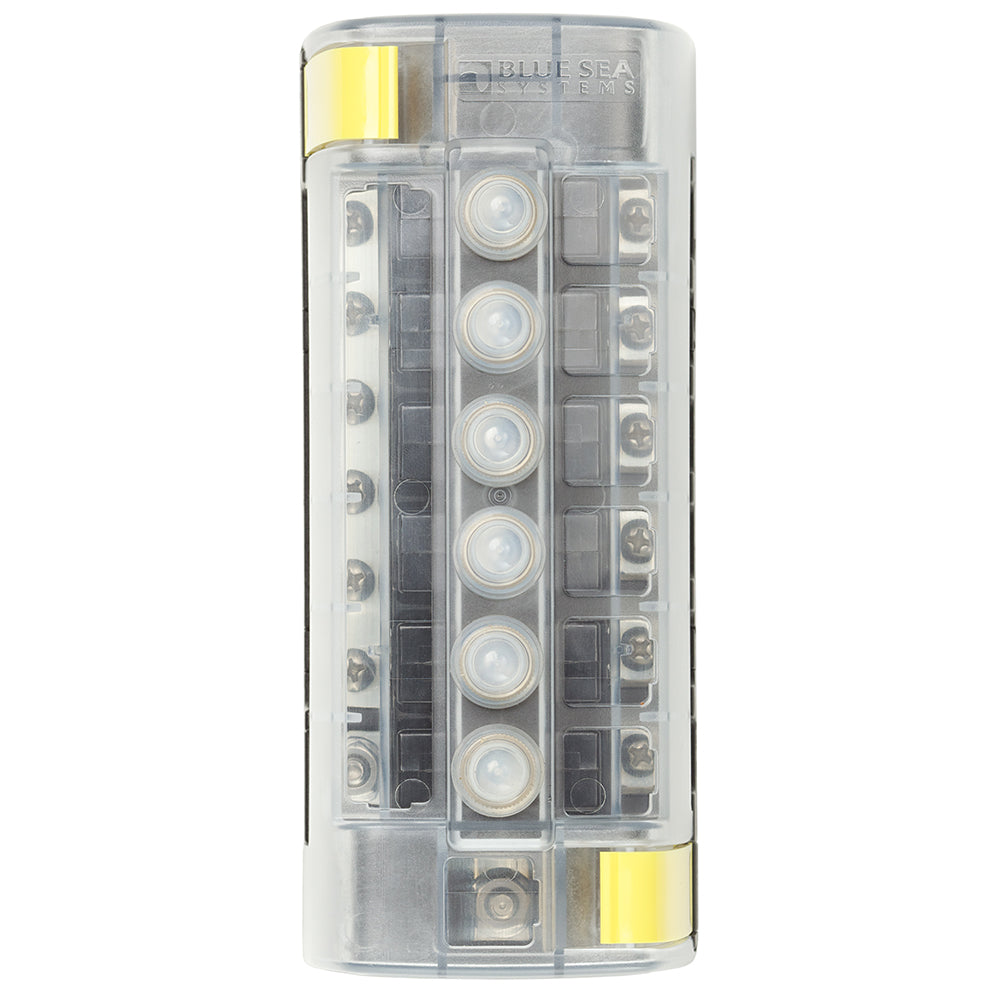

• Optional push button waterproof boots or dress nuts can be installed over cover

Specifications:
Circuits: 6
Maximum Amperage: 100A (per block) 32A (per circuit)
Maximum Voltage: 32V DC
Mounting: #8 Screw (M4) or #8 Nut
Negative Bus: Yes
Source: Common SourceMinimum Operating Temperature: -10 C
Maximum Operating Temperature: 60 C
Mounting Centers: 5.63"(143 mm)
Screw Terminal Type: #8-32 Screws with Captive Star Lock Washer
Height: 6.69"(169.93 mm)
Weight: 0.75lb (0.34 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 5052 ST CLB circuit breaker block offers a reliable solution for managing multiple electrical circuits in marine, RV, and industrial applications. Designed with quick connect clips, this six-position breaker panel allows for quick and secure installation of circuit breakers, simplifying wiring and maintenance. Its construction includes tin-plated copper busbars and screw terminals, ensuring excellent conductivity and corrosion resistance for long-term durability. The clear insulating cover features square format label recesses that meet ABYC and USCG insulation requirements, providing a professional, organized appearance while ensuring safety and compliance. An easy-to-open clip on the cover facilitates quick access to the wiring connections, making troubleshooting or modifications straightforward. Breakouts on the panel allow wire access in two directions, accommodating various wiring configurations, while the acceptance of ring terminals offers versatility for secure wire connections. Optional waterproof boots or dress nuts can be installed over the cover for added environmental protection, making this breaker block suitable for harsh marine or outdoor environments. The circuit breaker block supports a maximum of 6 circuits, each rated up to 32A at 32V DC, with a total capacity of 100A per block. Mounting is compatible with #8 screws or nuts, with mounting centers spaced at 5.63 inches for flexible installation options. The device supports a minimum operating temperature of -10°C and a maximum of 60°C, ensuring reliable operation across a range of conditions. Weighing approximately 0.75 pounds, this breaker block is compact yet robust, measuring roughly 6.69 inches in height. Overall, the Blue Sea Systems 5052 ST CLB circuit breaker block provides a durable, organized, and safe solution for distributing electrical power in demanding environments.

Features:

• Quick connect clips allow circuit breakers to snap easily into place

• Tin-plated copper busbars and screw terminals for enhanced conductivity and corrosion resistance

• Clear insulating cover with square format label recesses meets ABYC/USCG insulation standards

• Easy-to-open clip on cover for quick access and maintenance

• Breakouts enable wire access in two directions for flexible wiring options

• Accepts ring terminals for secure wiring connections

• Optional waterproof boots or dress nuts can be installed over the cover for additional environmental protection
