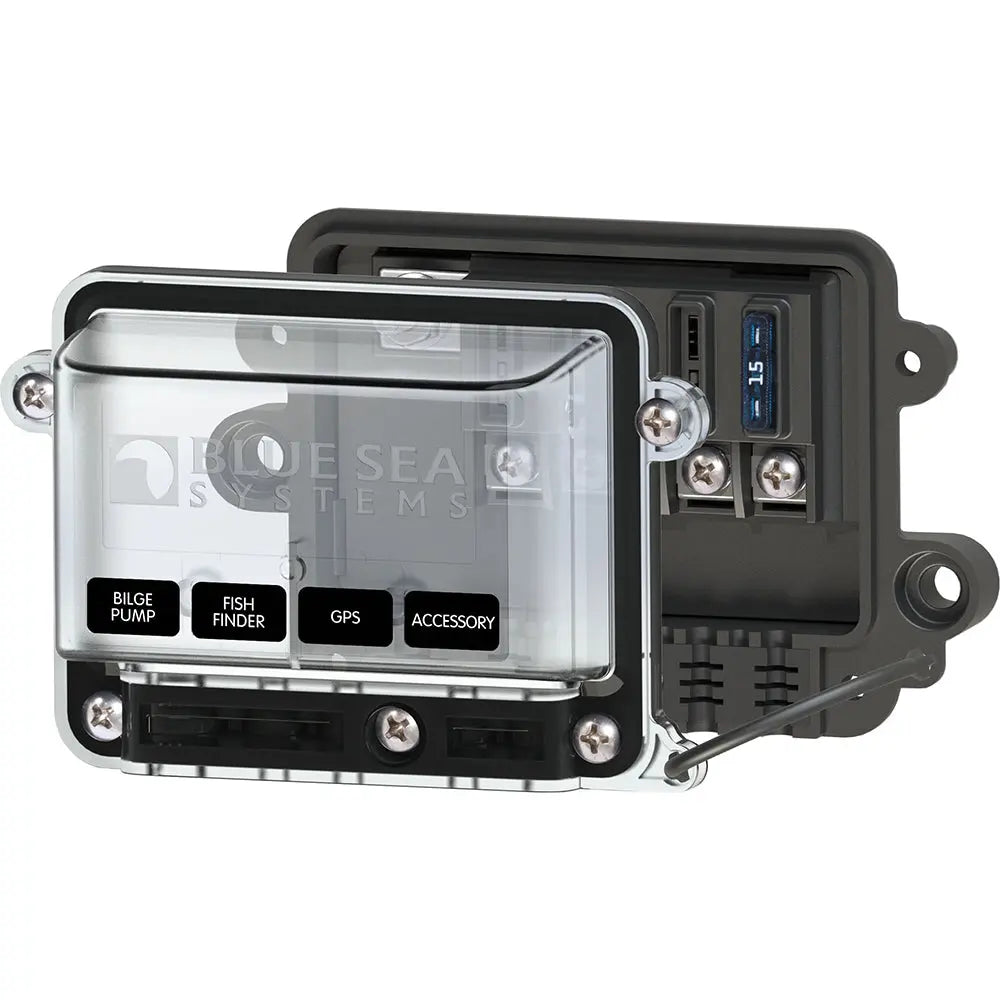

Blue Sea Systems 5056 ST-Blade Water-Resistant Fuse Block with Cover

5056 ST-Blade Water Resistant Fuse Block with Cover

Provides water-resistant circuit protection for ATO/ATC fuses circuit breakers in a compact footprint. The single side nesting design allows for wire entry from one side to maximize space.

Features:

• Water-resistant design with standard ring or fork type terminals allows for simple wiring with standard tools
• Accepts a wide range of wire sizes
• Includes 3 wire plugs to maintain water resistant rating if less than 4 loads are required
• Accepts ATO and ATC fast-acting blade fuses
• Accepts ATO/ATC-Style Low Profile Circuit Breakers
• Nests with other ST-Blade Water-Resistant Fuse Blocks and Water-Resistant 100A Bus Bars to reduce wire
• Insulating cover meets ABYC/USCG insulation requirements
• Tin-plated copper busses and fuse clips
• Includes four write-on circuit labels
• Small format standard and custom labels available
• Spare fuse and fastener storage in cover

Specifications:

• Amperage: 80A per block/25A per circuit
• Maximum Voltage: 32V DC
• Bus Material: Tin-Plated Copper C11000
• Mounting Holes: Clearance for 1/4" (6mm) screws
• Screw Terminal Type: #8-32 Screws with captive star lock washer
• Wire Size: (1) 8 AWG to 4 AWG - Input/(5) 16 AWG to 10 AWG - Load

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 5056 ST-Blade Water-Resistant Fuse Block with Cover offers reliable circuit protection in harsh environments. Designed to accommodate ATO and ATC fast-acting blade fuses, this fuse block features a compact footprint with a single side nesting design that simplifies wiring by allowing entry from one side. The water-resistant construction ensures durability against moisture, making it suitable for marine, RV, and off-road applications. Its insulating cover meets ABYC and USCG standards, providing an additional layer of protection for your electrical system. The fuse block includes three wire plugs to maintain water resistance when fewer than four loads are connected, and it accepts a wide range of wire sizes from 8 AWG to 4 AWG for input and 16 AWG to 10 AWG for loads. Constructed with tin-plated copper bus bars and fuse clips, it guarantees excellent conductivity and corrosion resistance. The fuse block is compatible with low-profile circuit breakers and nests seamlessly with other water-resistant components, reducing wire clutter and simplifying installation. It features mounting holes that fit 1/4-inch screws and screw terminals with #8-32 screws and captive star lock washers for secure connections. The product also includes four write-on circuit labels, with options for small-format custom labels, and provides spare fuse and fastener storage within the cover for convenience. With an 80-ampere capacity per block and a maximum voltage of 32V DC, the device is ideal for various DC electrical systems, supporting multiple circuits with a maximum of 25A each. Its robust design and thoughtful features make it a trusted choice for demanding electrical setups that require water resistance, ease of wiring, and reliable circuit protection.

Features:

• Water-resistant design with standard ring or fork terminals for easy wiring

• Accepts a wide range of wire sizes for flexibility in installation

• Includes three wire plugs to maintain water resistance with fewer loads

• Compatible with ATO and ATC fast-acting blade fuses

• Supports ATO/ATC-Style Low Profile Circuit Breakers

• Nests with other Blue Sea water-resistant fuse blocks and bus bars to reduce wiring complexity

• Insulating cover meets ABYC/USCG insulation standards

• Constructed with tin-plated copper bus bars and fuse clips for durability

• Includes four write-on circuit labels with options for custom labeling

• Spare fuse and fastener storage integrated into the cover
