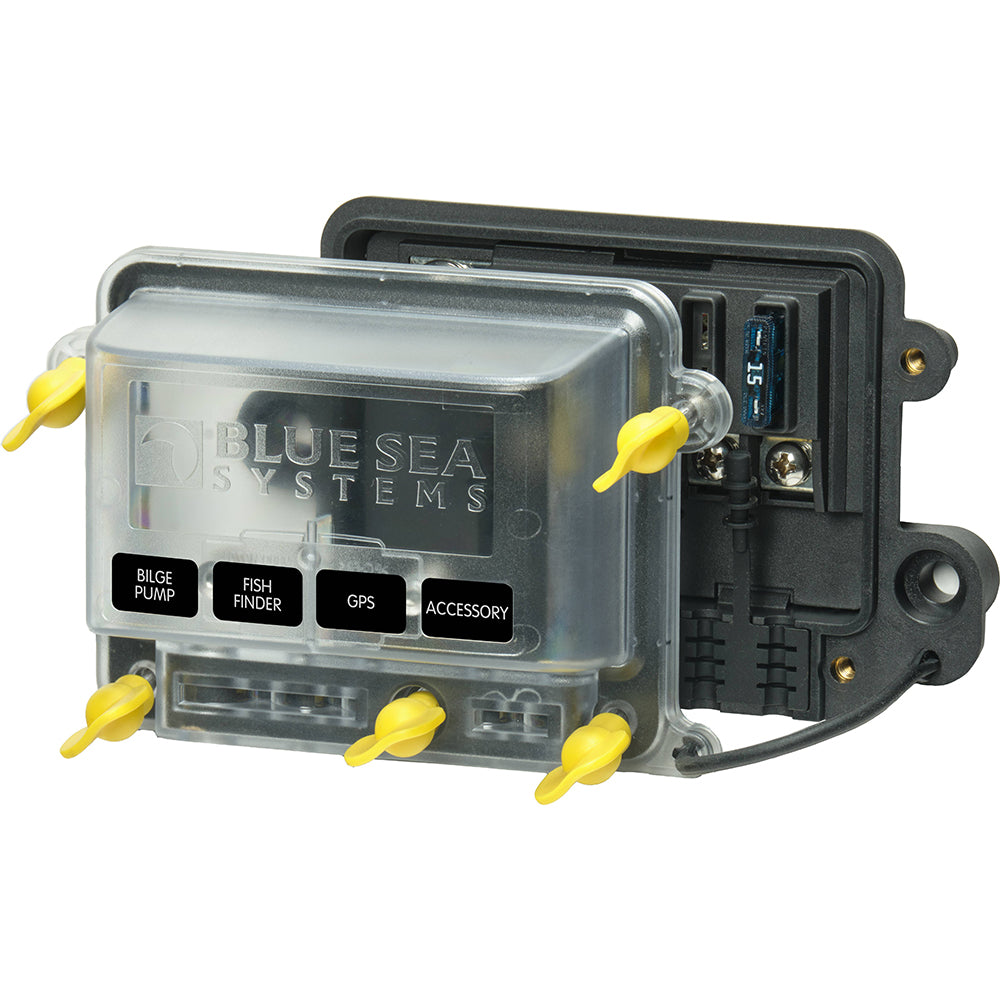

Blue Sea Systems 5056100 Water-Resistant ST-Blade Fuse Block with Cover

5056100 - Water Resistant ST-Blade Fuse Block with Cover

This Blue Sea fuse block provides water-resistant circuit protection for ATO/ATC fuses and circuit breakers in a compact footprint. Now with wing screws for toolless access.

Features:

• Water-resistant design with a standard ring or spade-type terminals
• Allows for simple wiring with standard tools
• Accepts a wide range of wire sizes
• Includes 3 wire plugs to maintain a water-resistant rating if less than 4 loads are required
• Accepts ATO and ATC fast acting blade fuses
• Accepts ATO/ATC-Style Low Profile Circuit Breakers
• Nests with other ST-Blade water-resistant fuse blocks and water-resistant 100A busbars to reduce wire
• 5056100 meets ABYC/USCG insulation requirements
• Tin-plated copper busses and fuse clips
• Includes four write-on circuit labels
• Spare fuse and fastener storage in cover
• Wing screws designed for tool-free installation of cover to meet ABYC compliance

Technical Specifications:

• Cover - yes
  • Maximum Voltage - 32V DC
  • Bus Material - Tin-plated Copper
  • Mounting Holes - Accepts 1/4" (6mm) screws
  • Terminal Screws - 4 x # 8-32 with captive star lock washer
  • Wire Size - Input - (1) 8 AWG to 4 AWG
  • Wire Size - Load - (4) 16 AWG to 10 AWG

In the Box:

• 5056100 Busbar
• Instruction Manual

*Sold as an Individual

The Blue Sea Systems 5056100 fuse block offers reliable water-resistant circuit protection designed for harsh marine environments. Featuring a compact design, it accommodates ATO and ATC fast-acting blade fuses as well as ATO/ATC-style low-profile circuit breakers, making it versatile for various electrical setups. The fuse block includes a sturdy cover with wing screws for tool-free installation, ensuring quick access and maintenance while meeting ABYC and USCG insulation standards.
Constructed with tin-plated copper busbars and fuse clips, this fuse block provides excellent electrical conductivity and corrosion resistance. Its water-resistant design includes standard ring or spade-type terminals and the ability to nest with other water-resistant components like 100A busbars, reducing wiring clutter. The unit accepts a wide range of wire sizes, from 8 AWG to 4 AWG for input and 16 AWG to 10 AWG for loads, simplifying wiring configurations across different applications. Additionally, the fuse block comes with three wire plugs to maintain its water-resistant integrity when fewer loads are used, and features four write-on circuit labels for easy identification.
Designed for durability and ease of use, the fuse block includes a space for spare fuses and fasteners within the cover, ensuring essential components are readily accessible. The inclusion of wing screws allows for tool-free cover removal, streamlining installation and maintenance processes. Compatible with other ST-Blade water-resistant fuse blocks and busbars, the 5056100 helps create a clean, organized electrical system in marine or outdoor environments. Its technical specifications include a maximum voltage of 32V DC, mounting holes for 1/4
