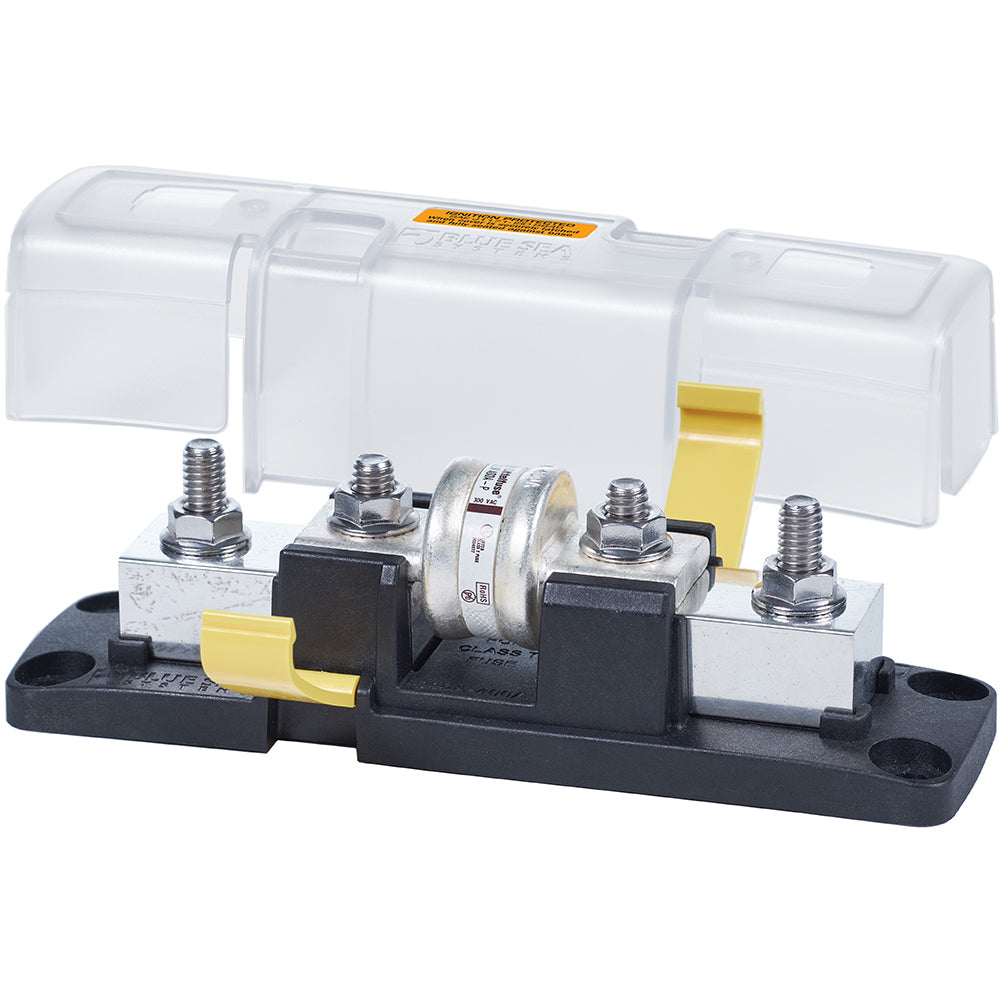

Blue Sea Systems 5502100 Class T Fuse Block with Insulating Cover – 225 to 400 Amp

Class T Fuse Block with Insulating Cover - 225 to 400A

Allows the use of Class T fuses for fast acting circuit protection of inverters and other electronics

• Four stud design provides ample access around connecting stud to install large cable lugs without obstruction from the fuse
• Insulating cover satisfies ABYC/USCG insulation requirements
• Cover breakouts allow wire access in any direction
• Stud design ensures secure fuse mounting even with high heat
• Stainless steel studs provide resistance to corrosion and high torque
• One-piece stainless flange nuts ensure safe and secure connections
• UL 94-V0 base resists high heat

Technical Specifications:

• Cable Size: Up to 4/0 AWG
• Ignition Protected: Yes
• Maximum Amperage: 320A
• Maximum Voltage: 160V DC
• Fuse Mounting Blocks: Tin-Plated Copper
• Terminal Stud Size: 5/16"-18 (M8)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 5502100 Class T Fuse Block is engineered for reliable circuit protection in high-current applications, supporting fuses rated from 225 to 400 amps. Designed with a four-stud configuration, this fuse block offers ample space around each connection point, facilitating the installation of large cable lugs without obstruction. The included insulating cover satisfies ABYC and USCG insulation standards, providing added safety and protection against accidental contact. Cover breakouts allow wiring access in any direction, making installation flexible and straightforward. The stud design ensures a secure fuse mount even under high-heat conditions, while stainless steel studs deliver corrosion resistance and high torque capacity. Additionally, one-piece stainless flange nuts promote safe and secure connections, enhancing overall reliability. The UL 94-V0 base material resists high heat, ensuring durability in demanding environments. This fuse block is rated for up to 320 amps and a maximum voltage of 160V DC, making it suitable for inverter and electronic circuit protection. It accommodates cable sizes up to 4/0 AWG and features tin-plated copper fuse mounting blocks for optimal conductivity. The terminal studs are M8 (5/16"-18), providing a sturdy and stable connection point for heavy-duty wiring. This fuse block is ignition protected, ensuring safe operation in various applications. Its robust construction and compliance with industry safety standards make it an ideal choice for marine, RV, and industrial electrical systems, offering both performance and peace of mind. Please note, this product contains chemicals known to California to cause reproductive harm, consistent with Proposition 65 regulations. For more information, visit P65Warnings.ca.gov.

Features:

• Four stud design for accessible large cable lugs installation

• Insulating cover meets ABYC and USCG standards

• Cover breakouts provide wiring access in any direction

• Stud design ensures secure fuse mounting under high heat

• Stainless steel studs resist corrosion and high torque

• One-piece stainless flange nuts for safe connections

• UL 94-V0 base material resists high heat
