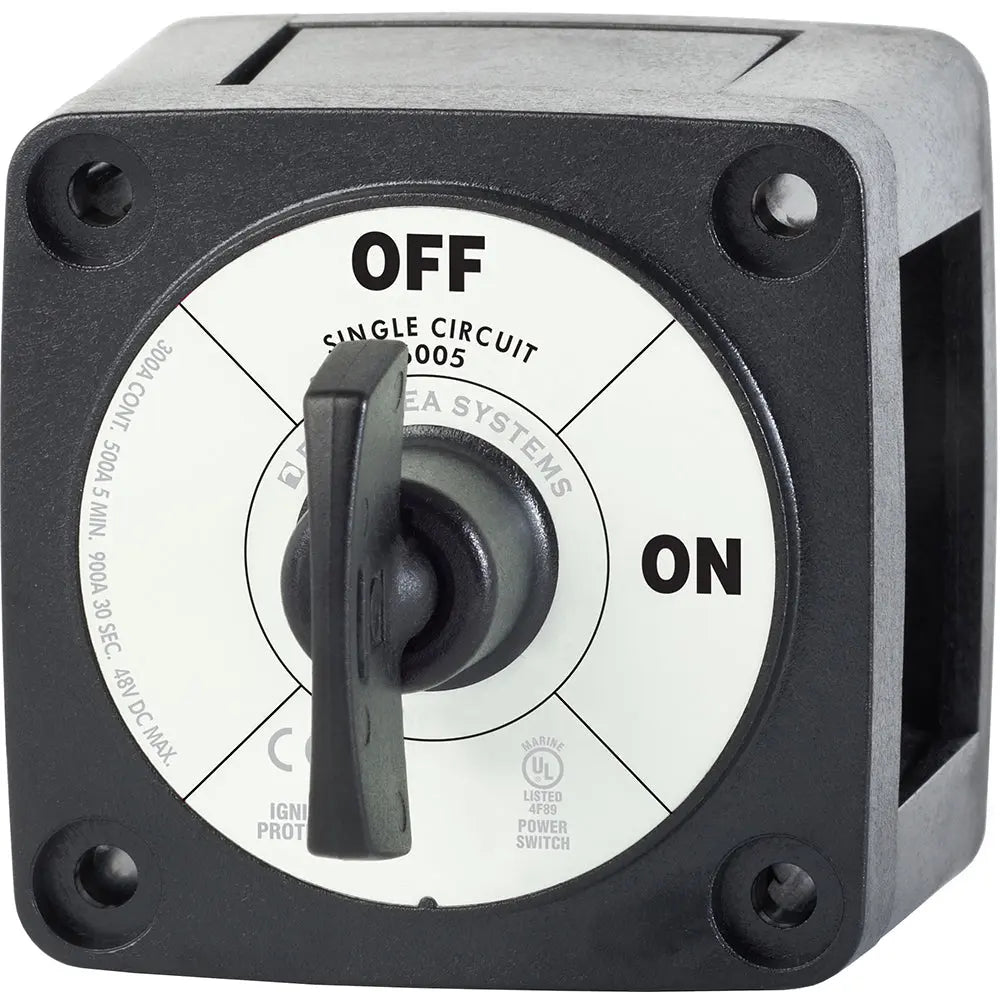

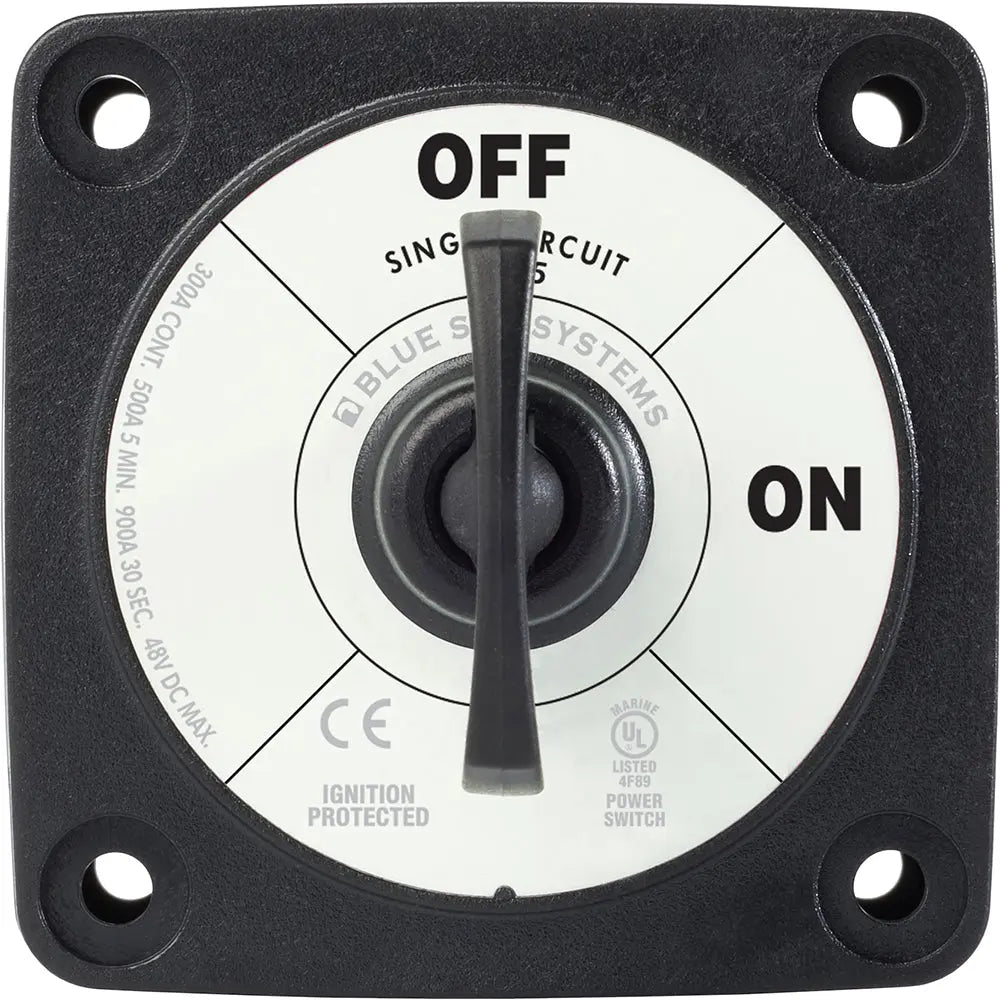

Blue Sea Systems 6005200 Mini On-Off Battery Switch with Key - Black

m-Series Mini On-Off Battery Switch with Key - Black

Switches a single battery to a single load group Ignition protected-safe for installation aboard gasoline powered boats.

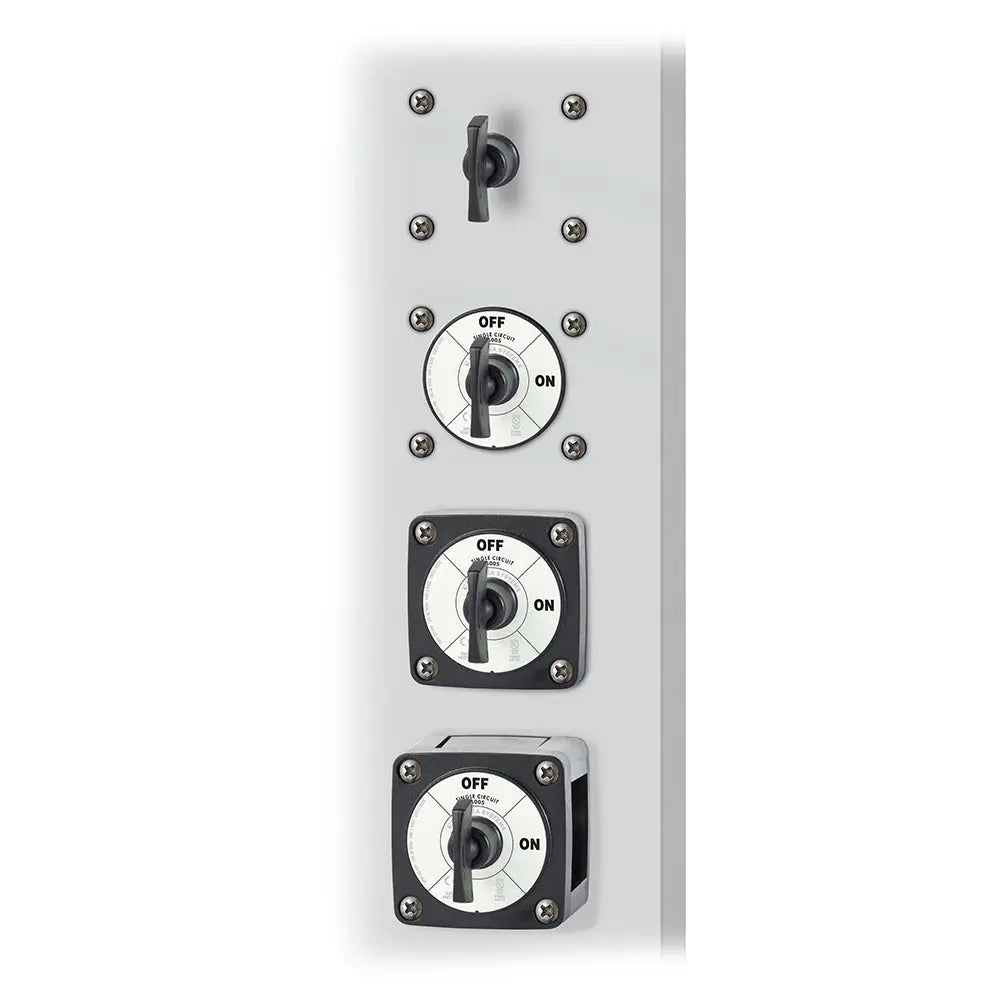

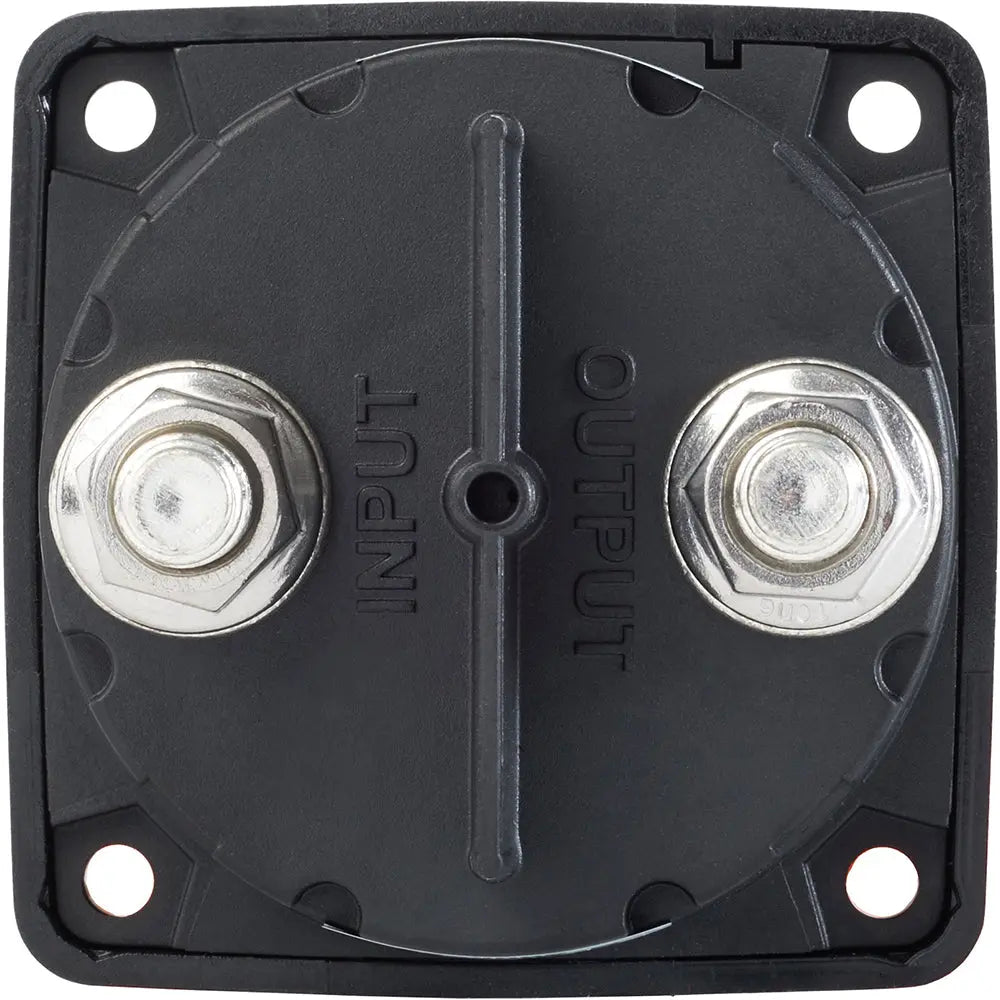

Case design allows surface, front panel, or rear panel mounting Isolating cover with snap-on sections protects rear contacts.

Switch Type: Single Circuit ON-OFF
Color: Black
Switch Positions: 2
Battery Combine: No
Alternator Field Disconnect: No
Maximum Voltage: 48V DC
Continuous Rating : 300A
Intermittent Rating : 500A (5 min)
Cranking Rating 10 sec: 1500A
Cranking Rating 1 min: 775A
Battery Inputs: 1
Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
Cable Size to Meet Ratings: 4/0 AWG (120mm)
Mounting Holes: Accept #10 Screw
Terminal Stud Size: 3/8"-16 (M10)
Terminal Stud Torque: 120 in-lb (13.56 Nm)
Weight: 0.62lb (0.28/ kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 6005200 Mini On-Off Battery Switch is designed for reliable single battery control in marine applications. Featuring a compact and durable case that allows surface, front panel, or rear panel mounting, this switch ensures flexible installation options for your boat. Its isolating cover with snap-on sections provides added protection for rear contacts, enhancing safety during operation. Built with ignition protection, the switch is safe for installation aboard gasoline-powered vessels, making it suitable for various marine environments. With a continuous rating of 300 amps and an intermittent rating of up to 500 amps for 5 minutes, it can handle high current loads required by marine systems. The switch's cranking ratings—1500 amps for 10 seconds and 775 amps for one minute—ensure reliable performance during engine start-up. The switch features a simple two-position design with a key lock for secure operation and prevents accidental switching, providing both safety and convenience. It accommodates a single battery input and is compatible with 4/0 AWG cables, with a cable clearance of approximately 1.12 inches for easy installation. The terminal stud size is 3/8"-16 (M10), and the torque specification is 120 in-lb, ensuring secure connections. Its lightweight design, weighing only about 0.62 pounds, makes it suitable for space-constrained applications. The switch is constructed with quality materials to withstand harsh marine conditions and is rated for up to 48V DC. For detailed installation and operation instructions, refer to the owner’s manual available online. Note that this product may expose users to certain chemicals, including di(2-ethylhexyl)phthalate (DEHP), which is known to cause health risks in some regions. For more information, visit the California Proposition 65 warning page.

Features:

• Switch Type: Single Circuit ON-OFF with key lock for secure operation

• Mounting Options: Surface, front panel, or rear panel installation

• Protection: Isolating cover with snap-on sections for rear contact safety

• High Current Ratings: Continuous 300A, intermittent 500A for 5 minutes

• Engine Starting Capacity: Cranking 1500A for 10 seconds and 775A for 1 minute

• Compatibility: Suitable for 48V DC systems with 4/0 AWG cables

• Terminal Stud Size: 3/8"-16 (M10) with 120 in-lb torque

• Weight: Approximately 0.62 pounds for easy handling and installation
