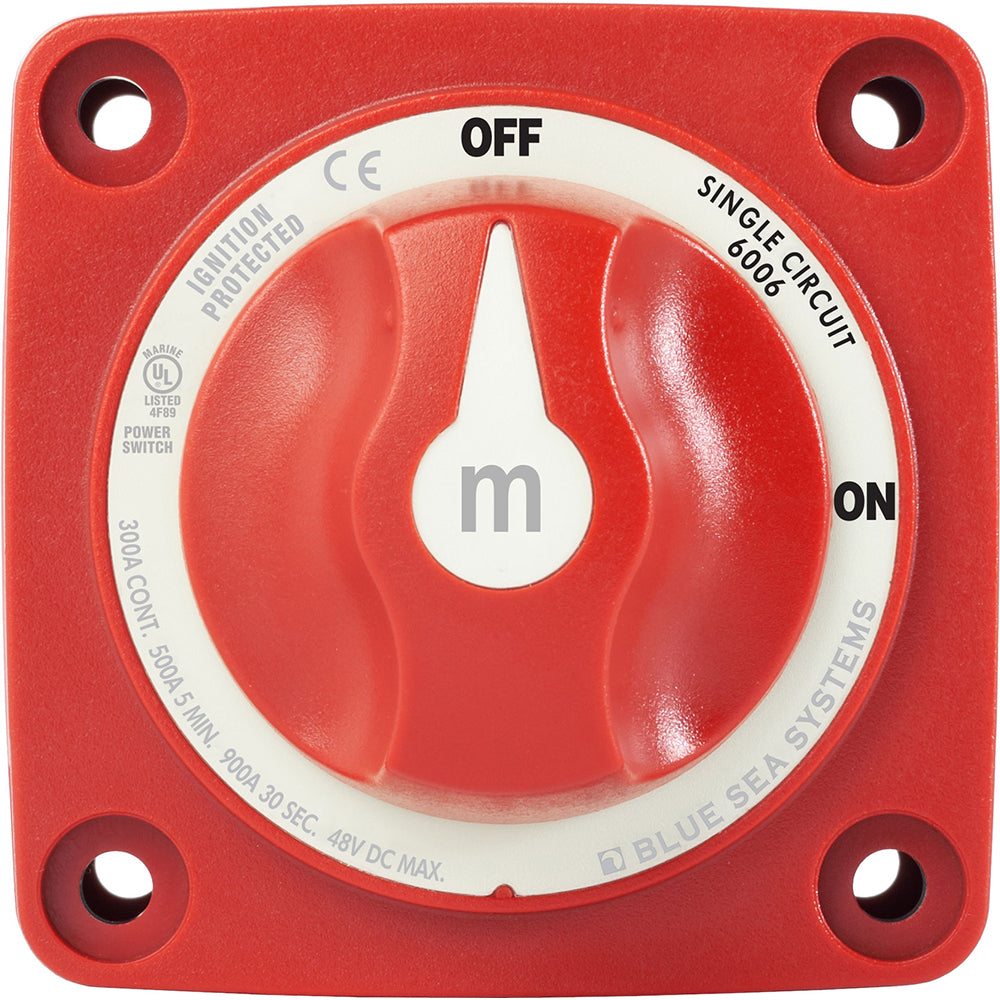

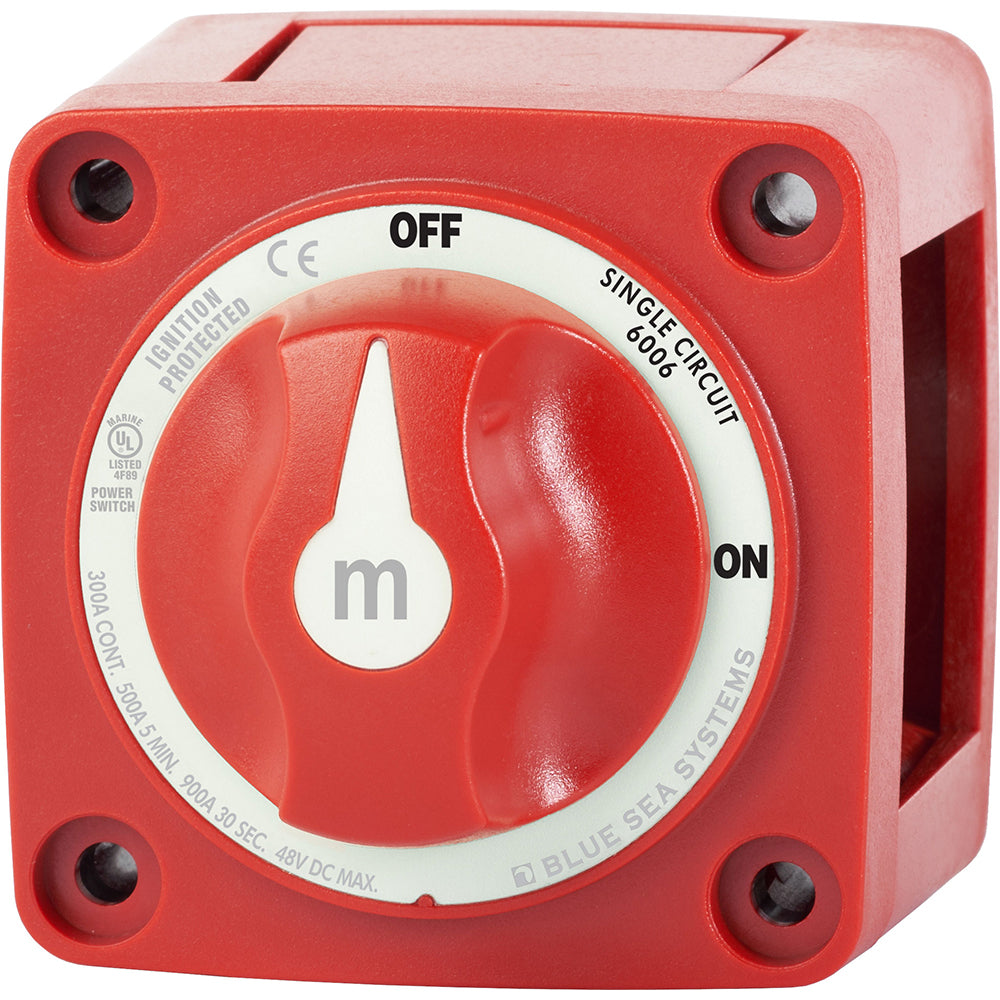

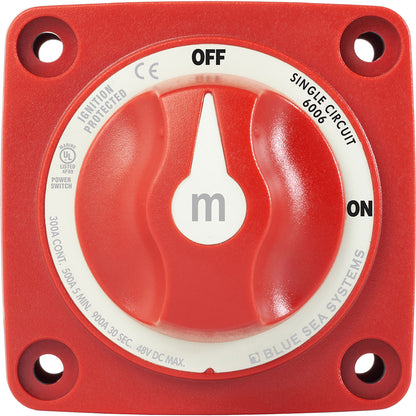

Blue Sea Systems 6006 m-Series Mini Battery Switch with Single Circuit ON/OFF Control

• Switches a single battery to a single load group

• Multiple switches can be used to manage several isolated circuits including cross conntecting for emergency paralleling

• Ignition protected - Safe for installation aboard gasoline powered boats

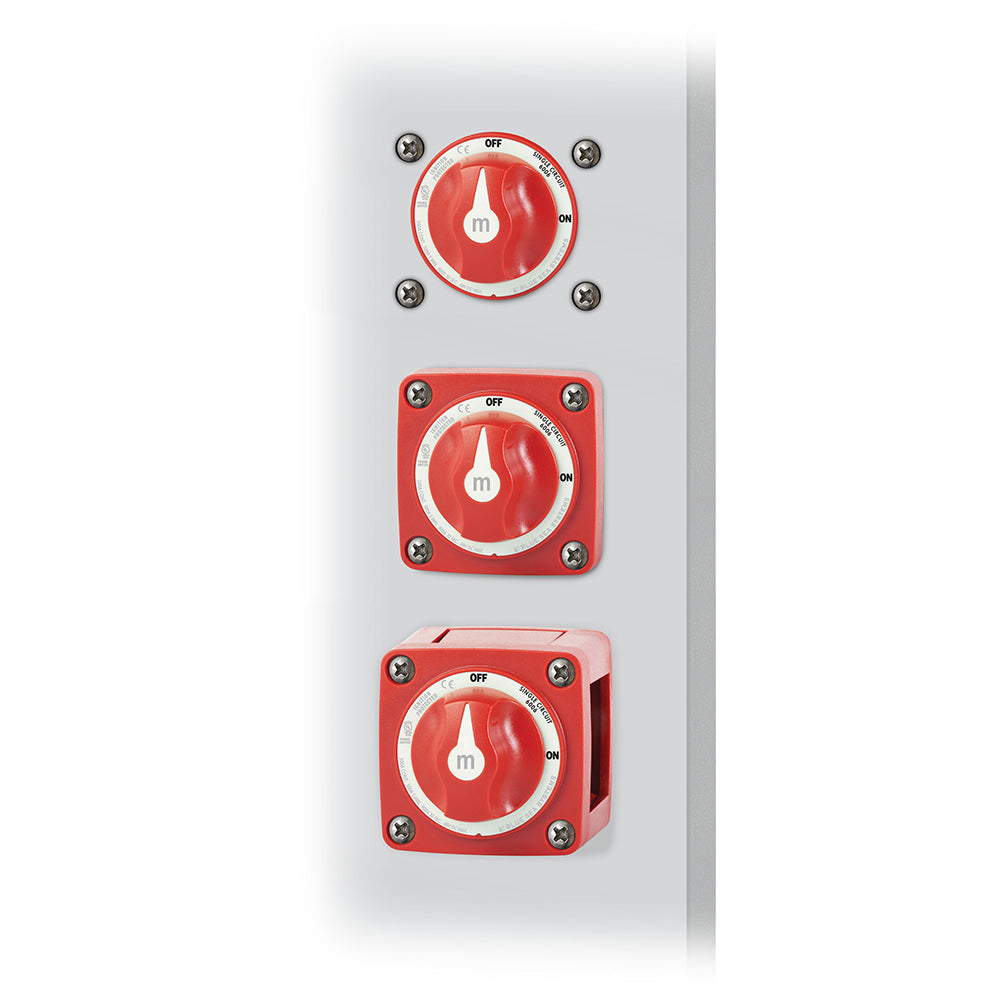

• Case design allows surface, front panel, or rear panel mounting

• Isolating cover with snap-on sections protects rear contacts

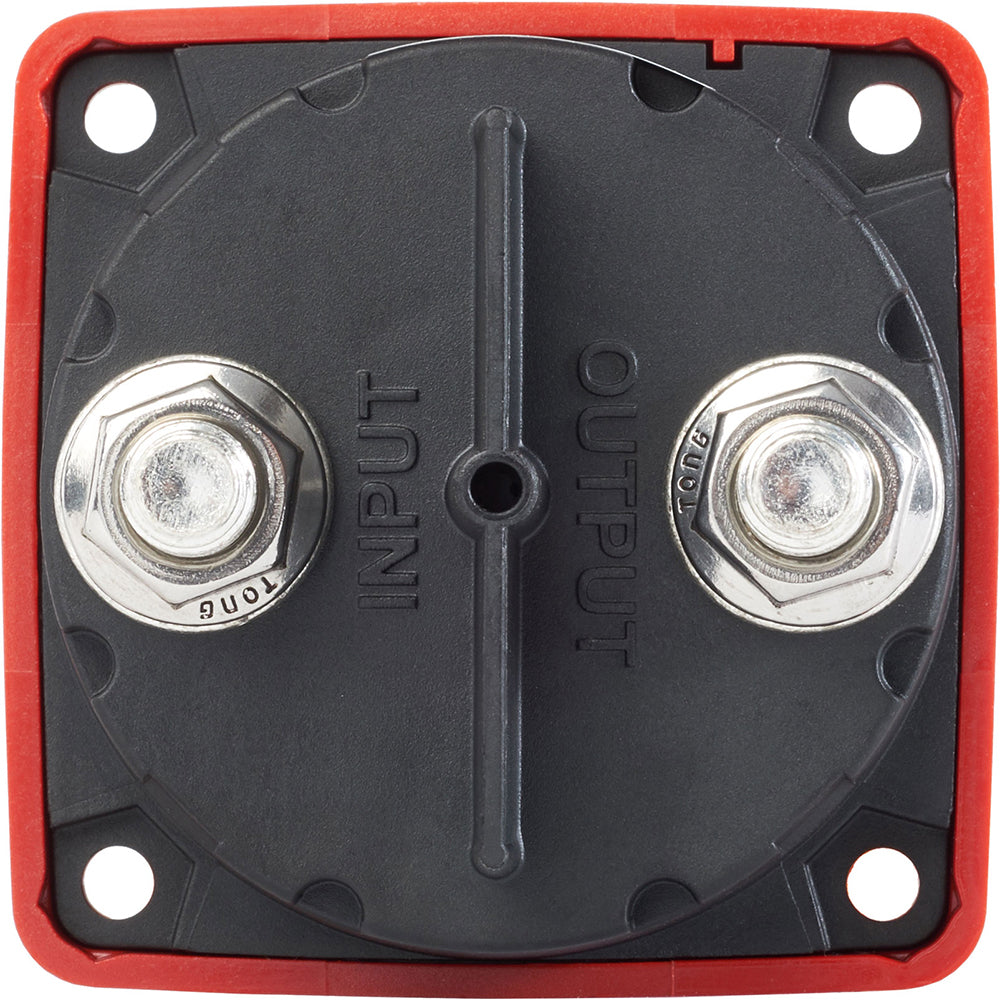

• 3/8-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8 and M10 ring terminals

• 7/8 (22.22mm) stud length to accept multiple cable terminals

• Ideal for marine or RV applications

• All non-corrosive marine grade metals

• Molded in durable reinforced polycarbonate

• Tactile textures indicate knob position by feel only

• Label with international ON/OFF legends

• Removable key or knob remains positively retained

• ICON label set included for circuit identification

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 6006 m-Series (Mini) Battery Switch provides a reliable and versatile solution for managing a single battery connection to your load. Designed for marine and RV applications, this switch offers a simple ON/OFF operation, ensuring safe and efficient power control. Its single circuit functionality allows you to isolate or connect a battery to a load with ease, and multiple switches can be used together to control several circuits, including emergency paralleling connections. The switch's ignition protection makes it safe for installation in gasoline-powered boats, adhering to strict safety standards.

Constructed from durable, non-corrosive marine-grade metals and molded in reinforced polycarbonate, the 6006 switch is built to withstand harsh environments. Its case design supports surface, front panel, or rear panel mounting, providing flexible installation options. An isolating cover with snap-on sections protects rear contacts from accidental contact or environmental damage, enhancing safety and longevity. The 3/8-16 tin-plated copper studs ensure maximum conductivity and resistance to corrosion, accepting 3/8 and M10 ring terminals for secure electrical connections. The 7/8 inch stud length accommodates multiple cable terminals, simplifying wiring arrangements.

The switch features tactile textures on the knob to indicate position by feel alone, along with clearly labeled international ON/OFF legends for easy identification. The removable key or knob remains positively retained during operation, preventing accidental disconnection. An icon label set is included for circuit identification, helping users organize and identify multiple circuits efficiently. This switch’s robust design and versatile mounting options make it ideal for demanding marine or RV electrical systems, offering reliable power control and safety for your application.

Features:

• Single circuit ON/OFF control for battery management

• Multiple switches enable managing several isolated circuits

• Ignition protected design suitable for gasoline-powered boats

• Flexible mounting: surface, front panel, or rear panel

• Isolating cover with snap-on sections for rear contact protection

• 3/8-16 tin-plated copper studs for high conductivity and corrosion resistance

• Accepts 3/8 and M10 ring terminals for secure wiring

• Stud length of 7/8 inch to accommodate multiple cable terminals

• Constructed from durable, non-corrosive marine-grade metals

• Molded in reinforced polycarbonate for durability

• Knob with tactile textures for feel-only position indication

• International ON/OFF labeling for clarity

• Removable key or knob that remains positively retained

• Includes icon label set for circuit identification
