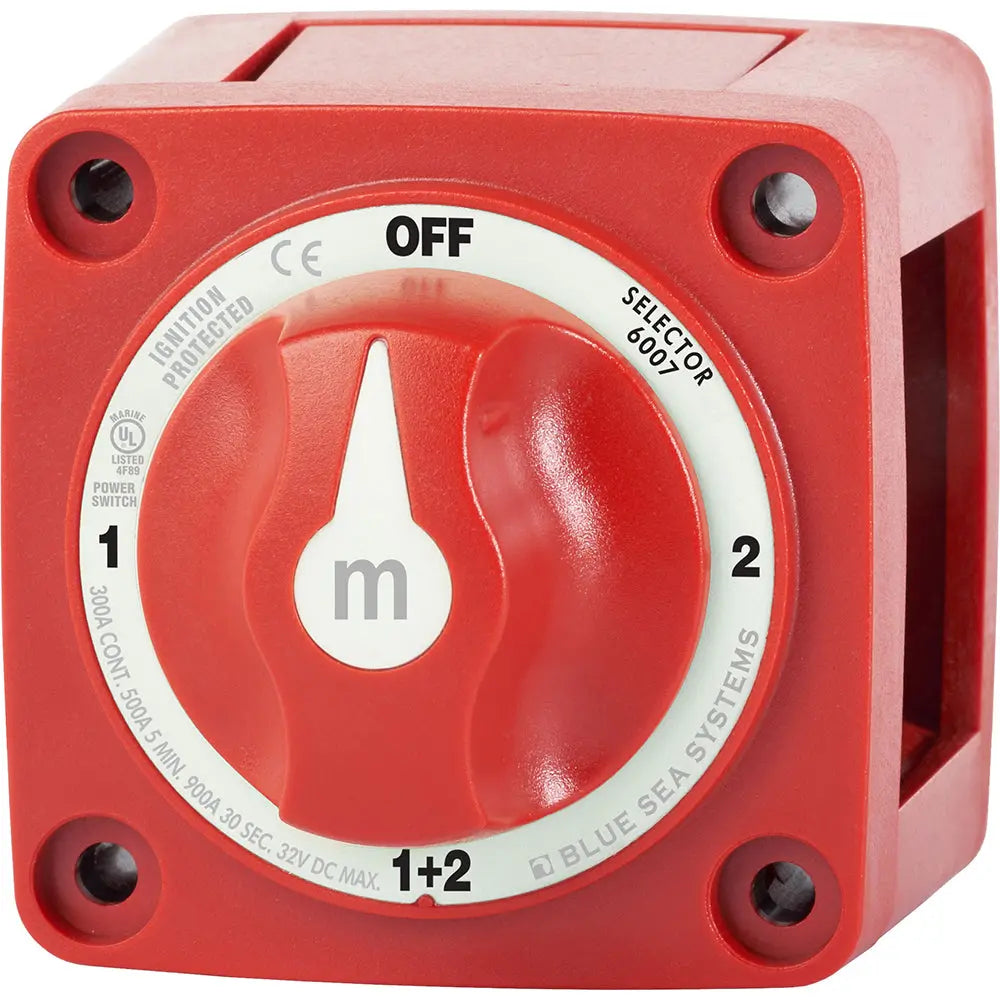

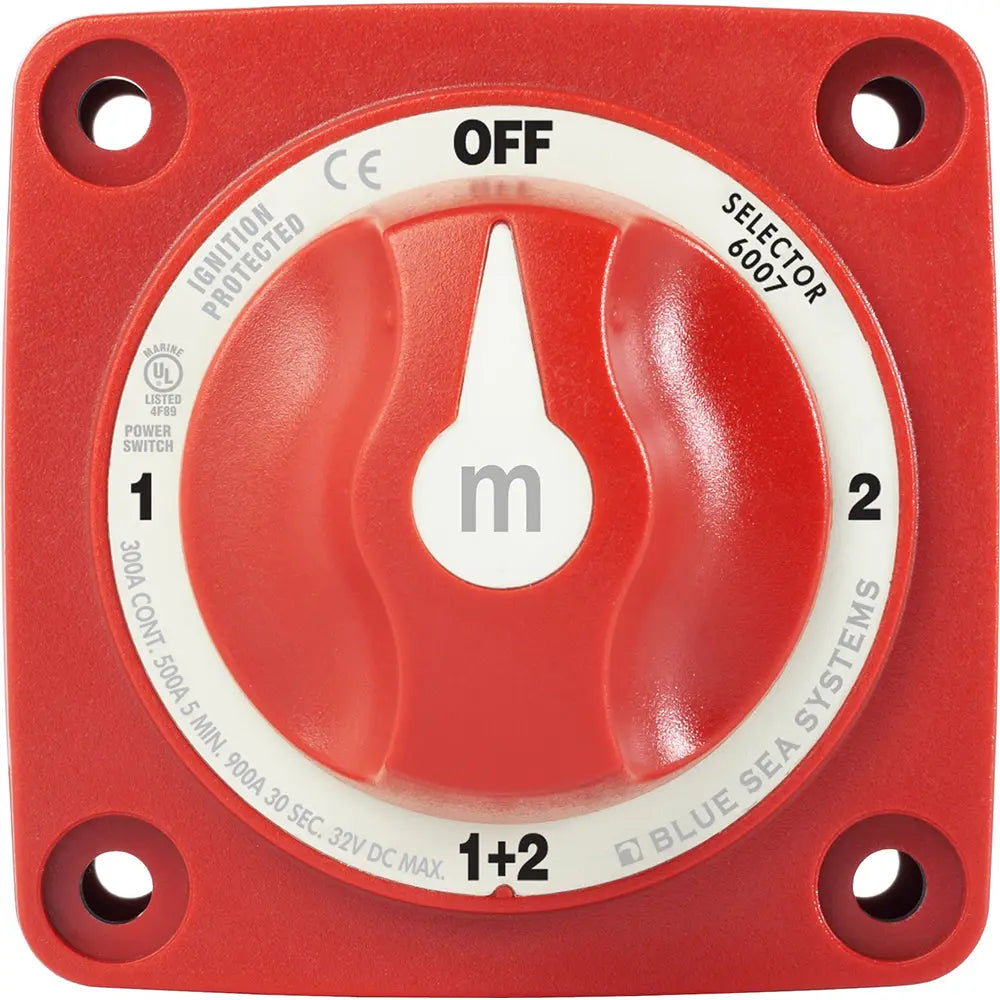

Blue Sea Systems 6007 m-Series Mini Battery Switch Selector – Four-Position Marine and RV Power Control

6007
m-Series (Mini) Battery Switch Selector

Make before break contact design allows switching between battery banks without power interruption

Selector

• Switches battery bank 1 or battery bank 2 or both to a single load using one switch

Features:

• Ignition protected - Safe for installation aboard gasoline powered boats

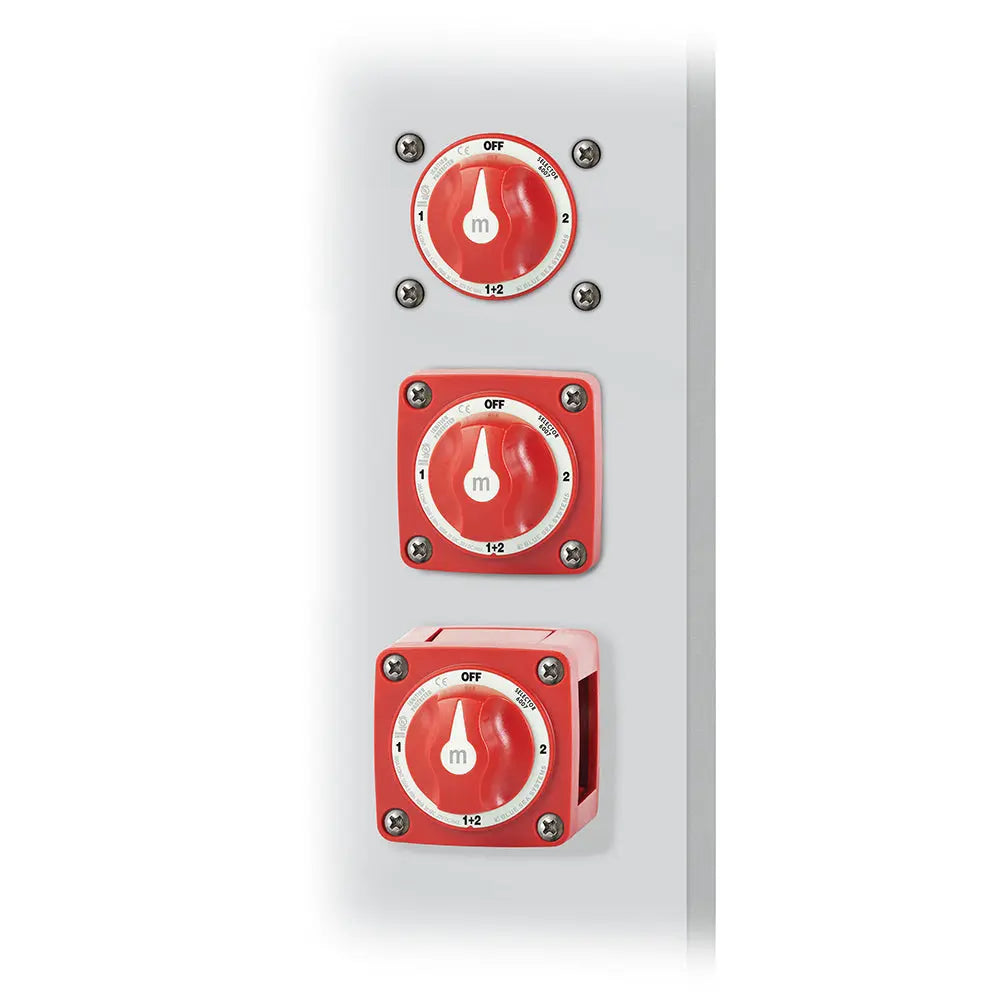

• Case design allows surface, front panel, or rear panel mounting

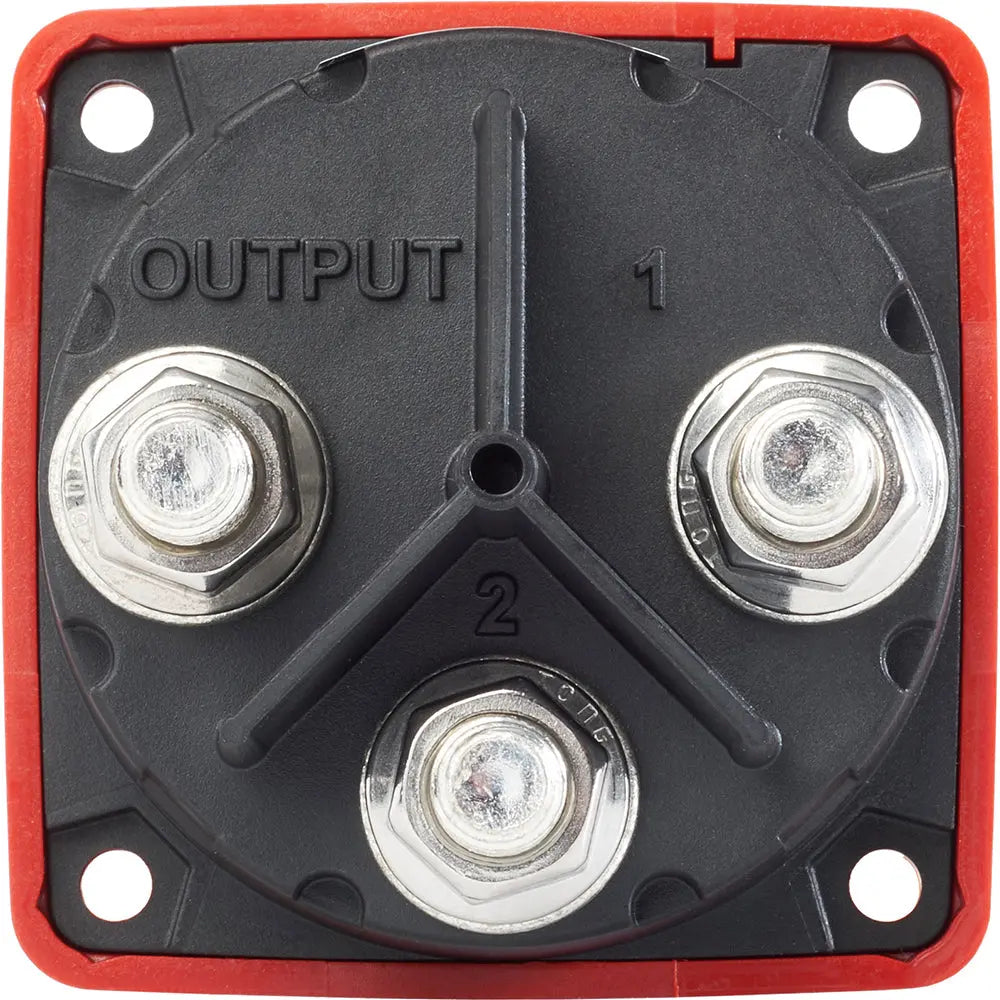

• Isolating cover with snap-on sections protects rear contacts

• 3/8-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8 and M10 ring terminals

• 7/8 (22.22mm) stud length to accept multiple cable terminals

• Ideal for marine or RV applications

• All non-corrosive marine grade metals

• Molded in durable reinforced polycarbonate

• Tactile textures indicate knob position by feel only

• Label with international ON/OFF legends

• Removable key or knob remains positively retained

• ICON label set included for circuit identification

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 6007 m-Series Mini Battery Switch Selector provides reliable power management for marine and RV applications by allowing seamless switching between two battery banks or combining them to a single load. Designed with a make-before-break contact system, this switch ensures that power transfer occurs without interruption, protecting your electrical system and ensuring continuous operation. Its compact size makes it ideal for tight spaces on boats and RVs, offering versatile installation options including surface, front panel, or rear panel mounting.
Constructed with corrosion-resistant marine-grade metals and durable reinforced polycarbonate, the switch withstands harsh environments and prolonged exposure to moisture. The 3/8-inch (M10 compatible) tin-plated copper studs facilitate maximum conductivity and corrosion resistance, while the 7/8-inch (22.22mm) stud length accommodates multiple cable terminals for flexible wiring options. The isolating cover with snap-on sections safeguards rear contacts during operation, enhancing safety and durability.
The tactile knob design allows users to feel the position for quick and easy operation, while international ON/OFF labels provide clear circuit status indication. The lockable removable key or knob remains securely in place, preventing accidental switching. Additionally, the included ICON label set aids in circuit identification, simplifying maintenance and troubleshooting. The switch is ignition protected, ensuring safe installation aboard gasoline-powered boats without risk of ignition from electrical faults.
Designed to meet rigorous safety standards, this battery switch is suitable for demanding marine and RV applications, offering dependable performance in a compact package. Its all-non-corrosive construction and versatile mounting options make it an essential component for managing battery power efficiently and safely in mobile power systems.

Features:

• Make-before-break contact design for uninterrupted power switching

• Switches between battery bank 1, battery bank 2, or both to a single load

• Ignition protected for safe installation on gasoline-powered boats

• Flexible mounting options: surface, front panel, or rear panel

• Isolating cover with snap-on sections for contact protection

• 3/8-inch (M10) tin-plated copper studs for high conductivity and corrosion resistance

• Stud length of 7/8-inch (22.22mm) to accept multiple cable terminals

• Constructed with all non-corrosive marine-grade metals

• Molded in durable reinforced polycarbonate for long-lasting use

• Tactile knob for feel-only position indication

• International ON/OFF labels for circuit clarity

• Removable key or knob with positive retention

• ICON label set included for circuit identification
