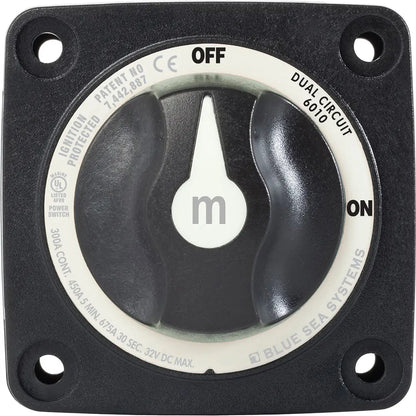

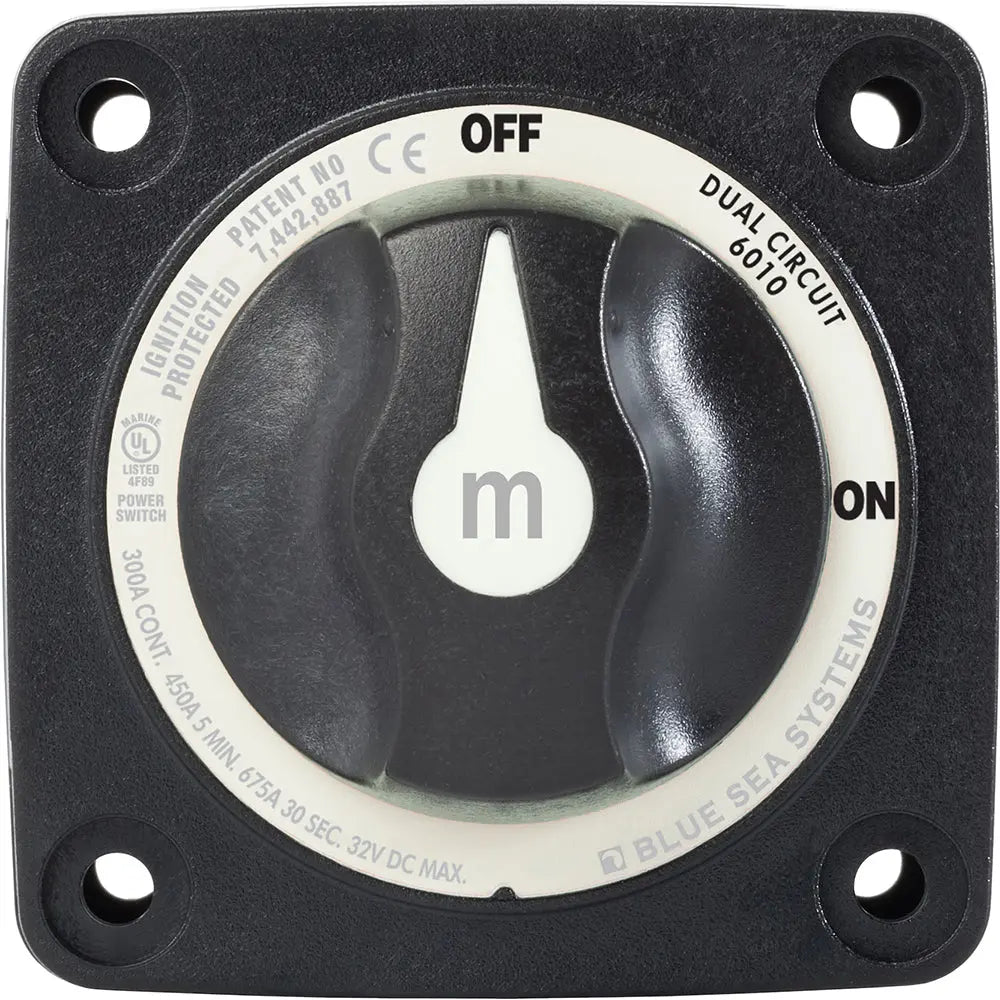

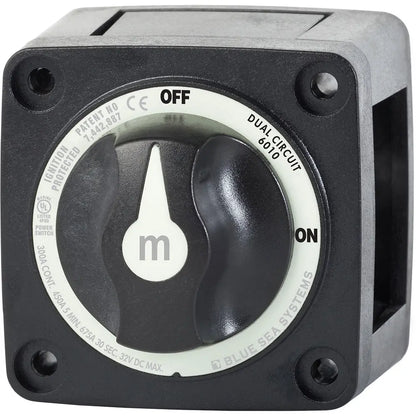

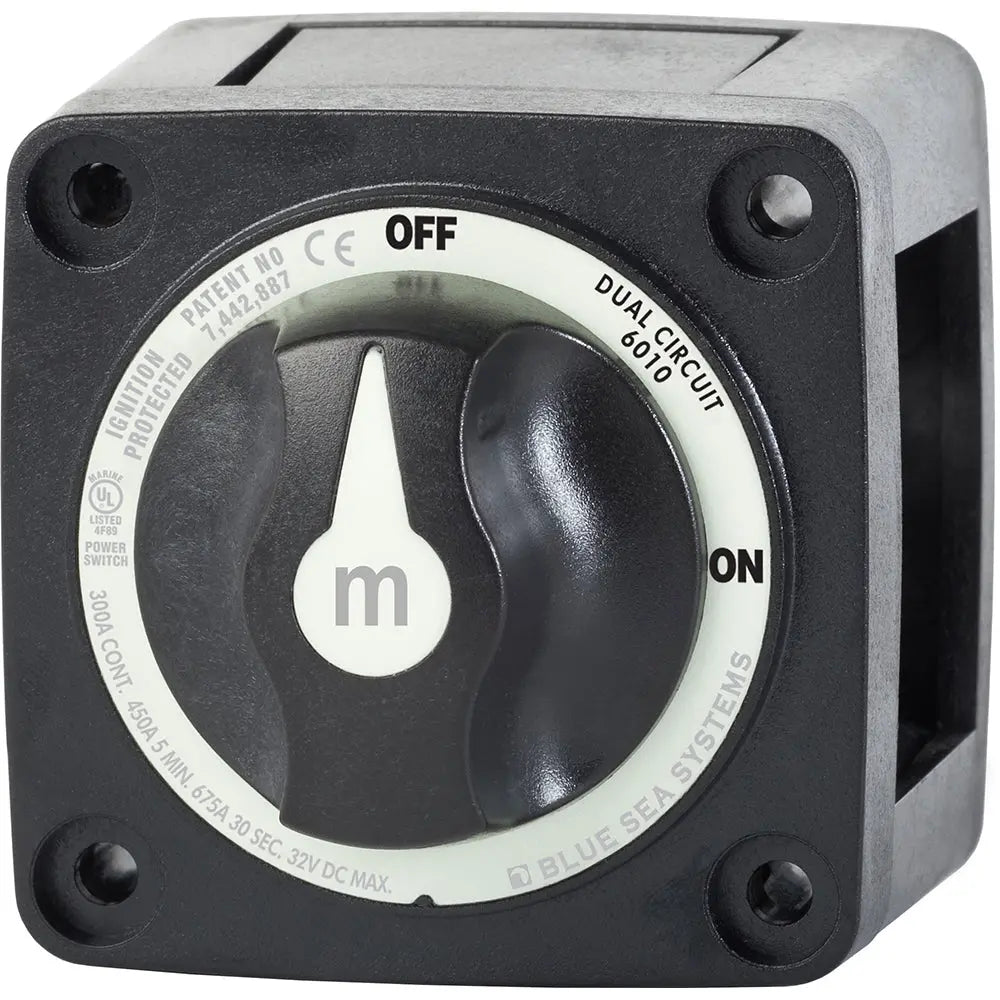

Blue Sea Systems 6010200 m-Series Mini Dual Circuit Battery Switch - Black

m-Series Mini Dual Circuit Battery Switch - Black

Simultaneously switches two isolated battery banks.

Switch Type: Dual Circuit
Color: Black
Switch Positions: 2
Battery Combine: No
Alternator Field Disconnect: No
Maximum Voltage: 32V DC
Continuous Rating : 300A
Intermittent Rating : 450A (5 min)
Cranking Rating 10 sec: 1000A
Cranking Rating 1 min: 650A
Battery Inputs: 2
Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
Cable Size to Meet Ratings: 4/0 AWG (120mm)
Mounting Holes: Accept #10 Screw

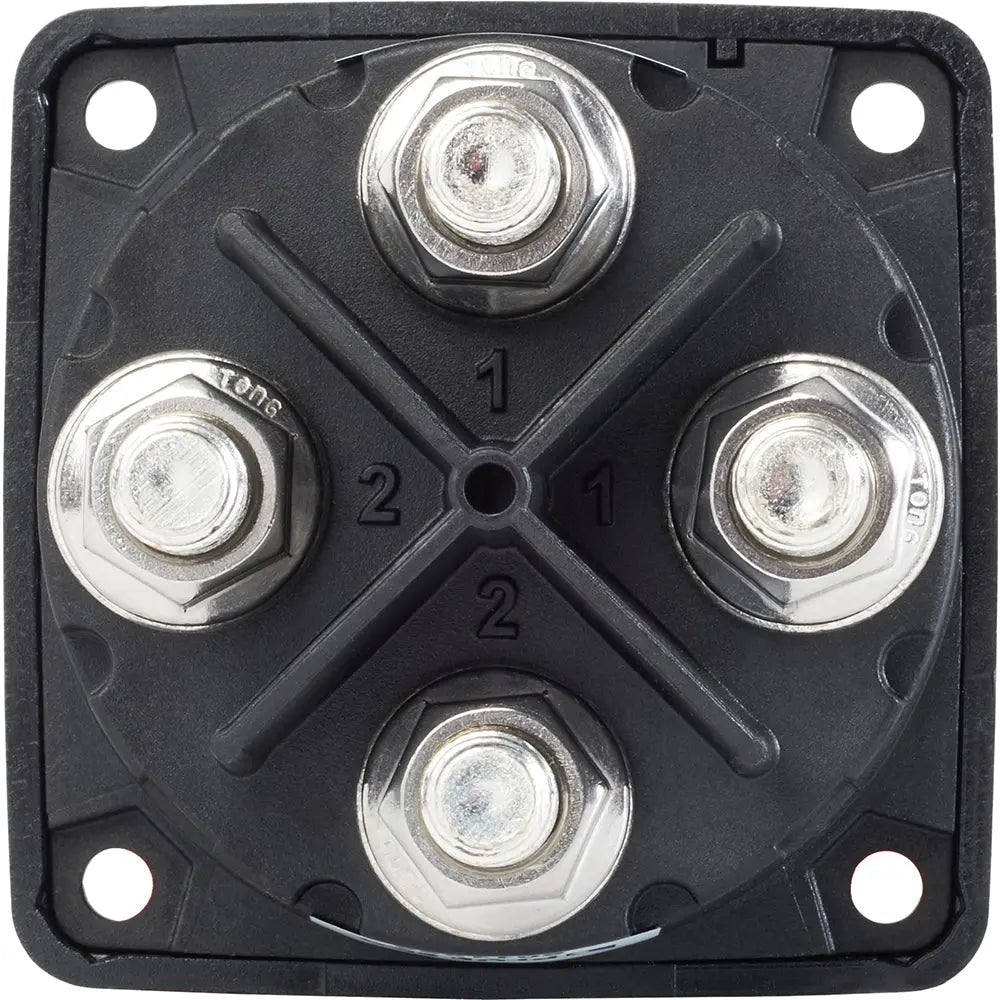

Terminal Stud Size: 3/8"-16 (M10)
Terminal Stud Torque: 120 in-lb (13.56 Nm)
Weight: 0.80lb (0.36 kg)

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 6010200 m-Series Mini Dual Circuit Battery Switch provides reliable power management for dual battery systems in a compact design. This black switch allows users to independently control two isolated battery banks, making it ideal for marine, RV, and other vehicle applications where space efficiency and safety are priorities. The switch features two positions, enabling quick switching between batteries without combining or disconnecting circuits. It supports a maximum voltage of 32V DC and has a continuous rating of 300 amps, with an intermittent rating of 450 amps for up to five minutes, ensuring it can handle high-power demands. The cranking ratings are rated at 1,000 amps for 10 seconds and 650 amps for one minute, providing ample capacity for starting engines and other high-current tasks.

Constructed for durability, this switch is designed to accept #10 mounting screws and features a terminal stud size of 3/8"-16 (M10), with torque specifications of 120 in-lb (13.56 Nm). Cable clearance is suitable for 4/0 AWG cables, with an opening of approximately 1.12 inches (28.45 mm). Weighing just 0.80 pounds (0.36 kg), the switch offers a compact yet sturdy solution for controlling multiple battery banks without taking up excessive space. It is important to note that this product does not facilitate battery combining or alternator field disconnect functions.

As with all electrical components, proper installation is crucial for safety and performance. For detailed installation instructions and safety information, consult the owner’s manual available at this link. Additionally, please be aware that this product may contain chemicals such as di(2-ethylhexyl)phthalate (dehp), which are recognized to pose health risks in certain regions; further details can be found at P65Warnings.ca.gov.

Features:

• Simultaneously switches two isolated battery banks for efficient power management

• Supports up to 32V DC with a continuous rating of 300 amps and intermittent rating of 450 amps for 5 minutes

• Cranking ratings of 1,000 amps for 10 seconds and 650 amps for 1 minute for reliable engine starts

• Designed for durable installation with #10 mounting holes and 3/8"-16 terminal studs

• Cable clearance accommodates 4/0 AWG cables for high-current connections
