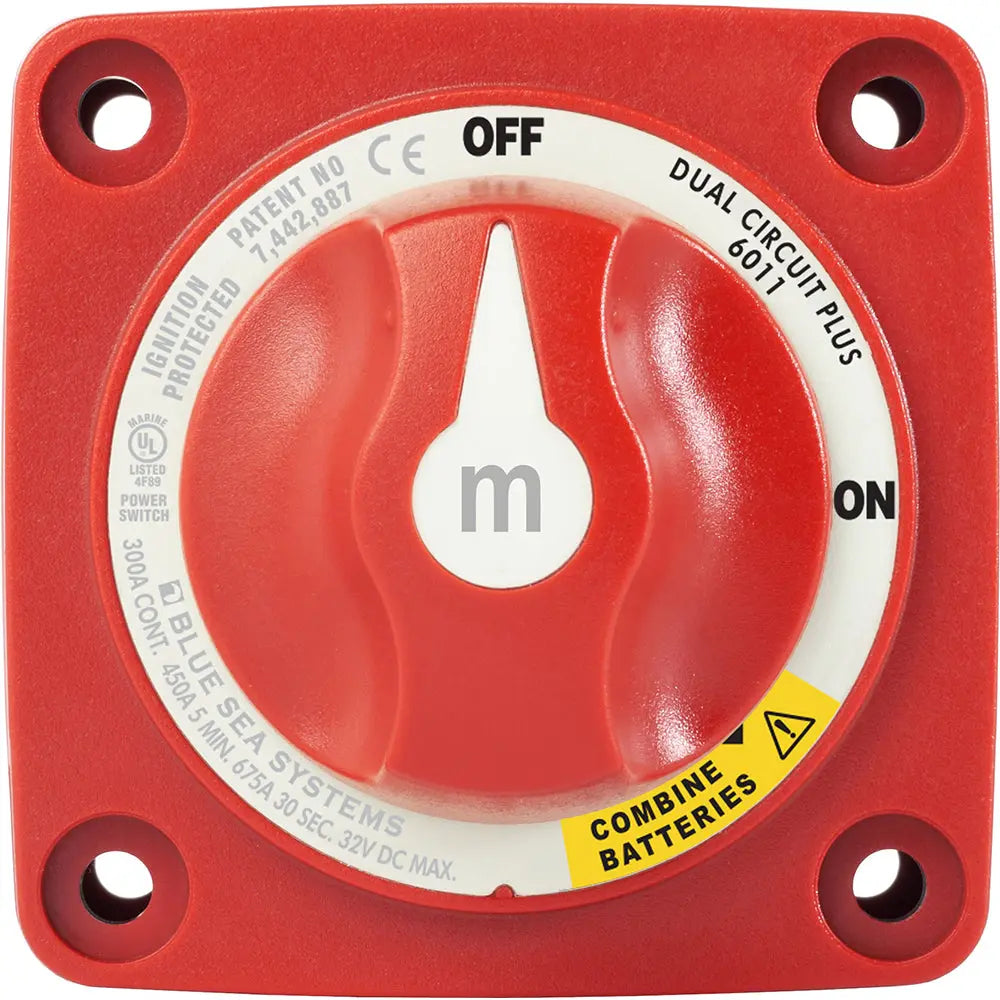

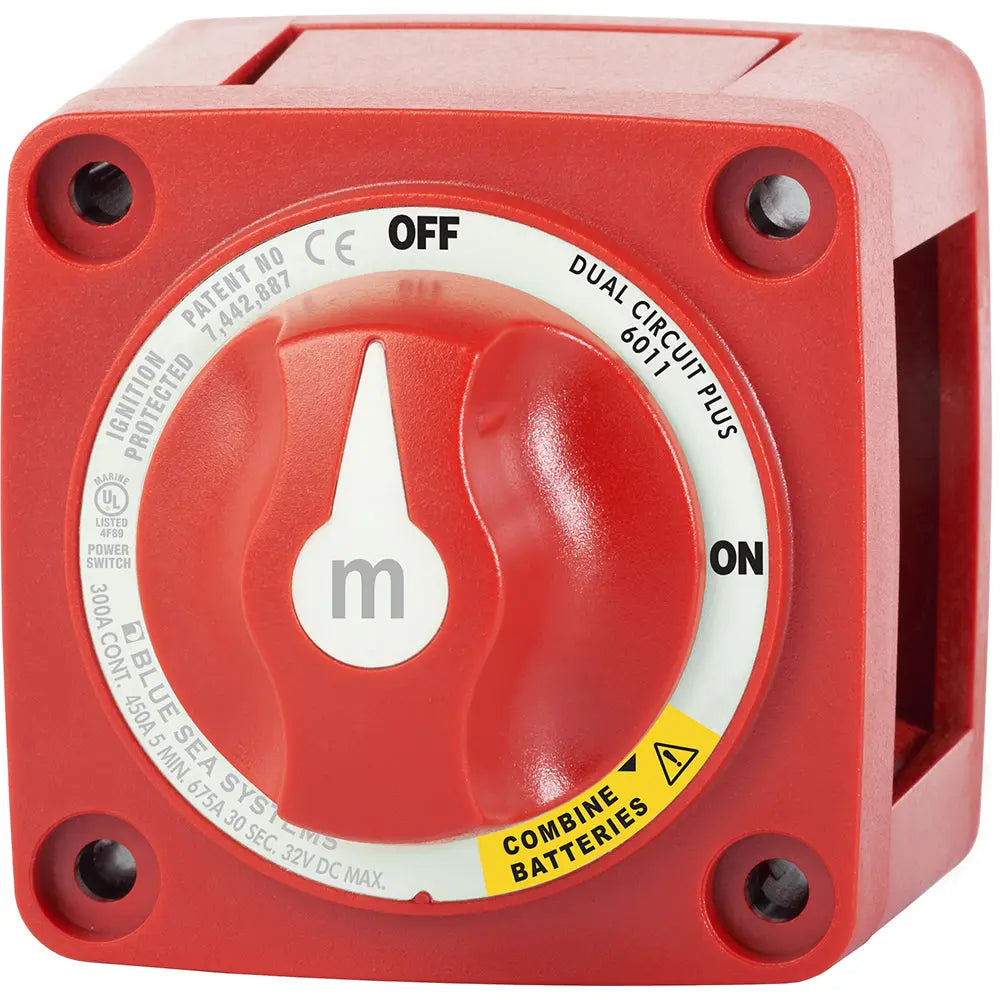

Blue Sea Systems 6011 m-Series Mini Battery Switch with Dual Circuit Plus

• Switches two battery banks simultaneously with one simple ON/OFF switch while maintaining battery bank isolation, minimizing the risk of a dead Start battery

• The Combine Batteries function offers the ability to combine the two battery banks in the event of a low Start battery

• Ignition protected - Safe for installation aboard gasoline powered boats

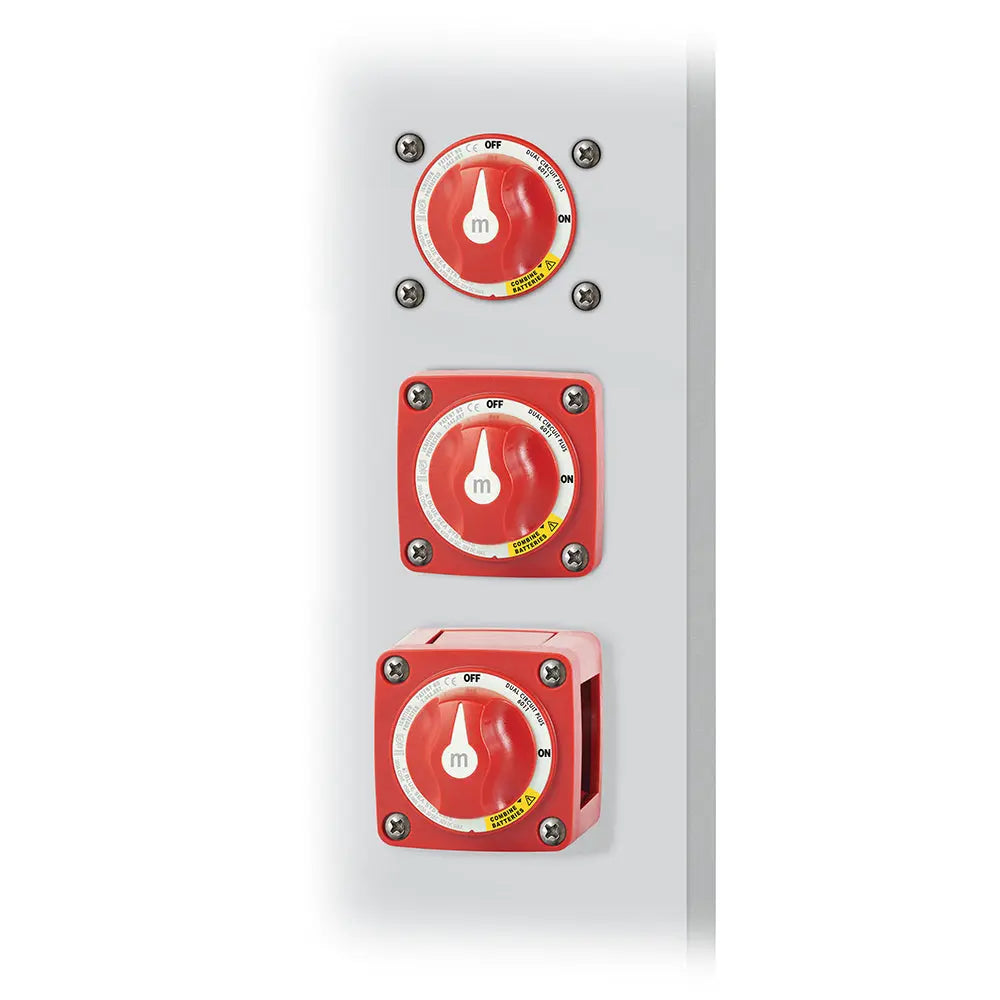

• Case design allows surface, front panel, or rear panel mounting

• Isolating cover with snap-on sections protects rear contacts

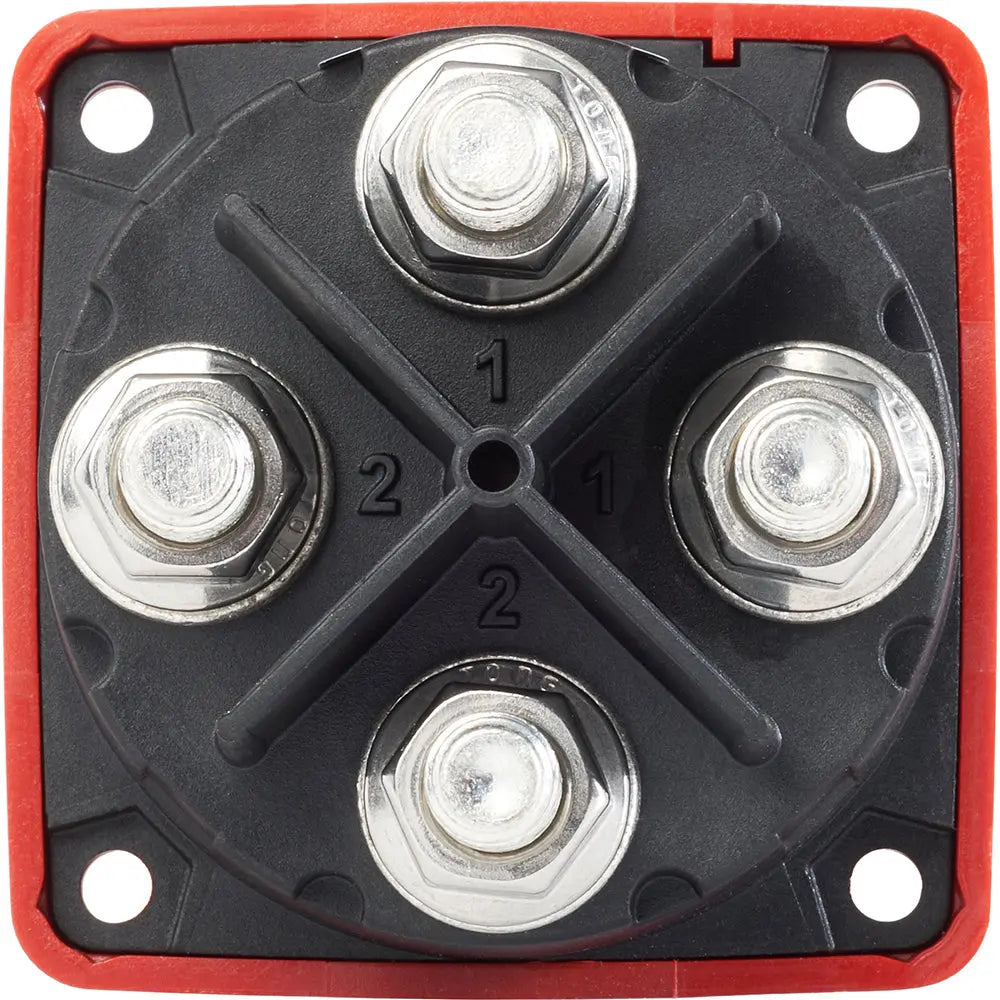

• 3/8-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8 and M10 ring terminals

• 7/8 (22.22mm) stud length to accept multiple cable terminals

• Ideal for marine or RV applications

• All non-corrosive marine grade metals

• Molded in durable reinforced polycarbonate

• Tactile textures indicate knob position by feel only

• Label with international ON/OFF legends

• Removable key or knob remains positively retained

• ICON label set included for circuit identification

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 6011 m-Series Mini Battery Switch offers a compact and reliable solution for managing multiple battery banks on marine and RV applications. Designed with a durable molded reinforced polycarbonate case, this switch provides a safe and efficient way to control power distribution while maintaining battery isolation. Its ignition-protected construction ensures safe installation aboard gasoline-powered boats, making it an ideal choice for marine environments. The switch features a surface, front panel, or rear panel mounting capability, offering versatile installation options to suit various vessel layouts. The isolating cover with snap-on sections protects the rear contacts from corrosion and accidental contact, enhancing safety and longevity.
The switch is equipped with 3/8-16 tin-plated copper studs for maximum conductivity and corrosion resistance, compatible with 3/8 and M10 ring terminals. The 7/8 inch (22.22 mm) stud length allows for multiple cable connections, simplifying wiring and setup. Its tactile textured knob allows users to identify the ON/OFF position by feel, and the clearly labeled international legends facilitate operation for users worldwide. The removable key or knob remains positively retained, preventing accidental disconnection. Additionally, the included ICON label set assists with circuit identification, ensuring safe and straightforward operation.
This switch features the innovative Dual Circuit Plus system, enabling the simultaneous operation of two battery banks with a single switch while maintaining isolation. The Combine Batteries function provides an emergency option to connect the batteries in low-start conditions, improving starting reliability. All components are made from non-corrosive, marine-grade metals, ensuring durability in harsh environments. The combination of safety features, versatile mounting options, and advanced circuitry makes the Blue Sea Systems 6011 m-Series Mini Battery Switch an essential component for reliable power management in marine and RV applications.

Features:

• Ignition protected for safe installation aboard gasoline-powered boats

• Versatile mounting options: surface, front panel, or rear panel

• Protective isolating cover with snap-on sections

• 3/8-16 tin-plated copper studs for optimal conductivity and corrosion resistance

• Accepts 3/8 and M10 ring terminals

• 7/8 inch (22.22 mm) stud length for multiple cable connections

• Marine-grade non-corrosive metals for durability

• Molded reinforced polycarbonate housing for added strength

• Tactile textured knob for feel-only position indication

• International ON/OFF label legends for global usability

• Removable key or knob remains positively retained

• Includes ICON label set for circuit identification

• Dual Circuit Plus system for simultaneous battery control with isolation

• Combine Batteries function for emergency battery connection
