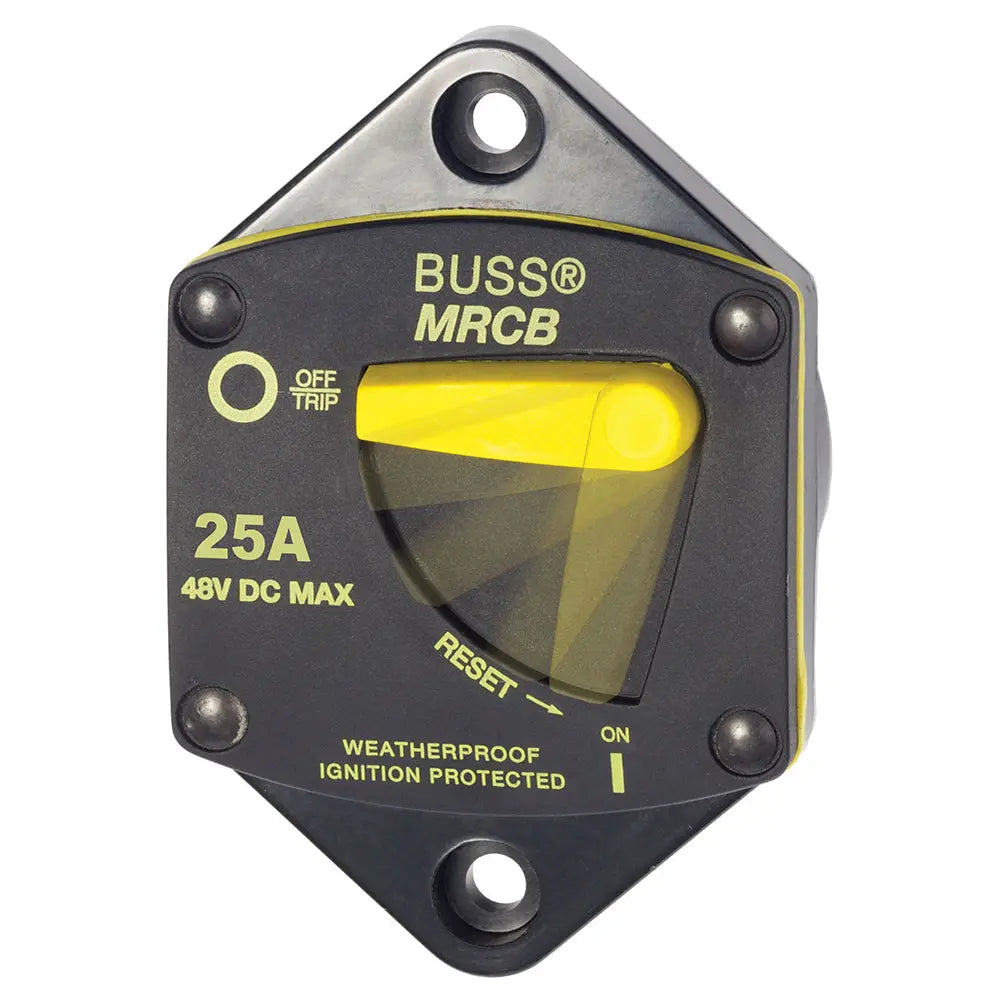

Blue Sea Systems 7035 187 Series 25 Amp Thermal Circuit Breaker for Panel Mounting

• Combines switching and circuit protection into a single device

• All components meet SAE J1171 external ignition protection requirements

• Clear, single lever operation

• Trip Free design cannot be held ON during fault current condition

• Waterproof

• Recessed mounting holes for clean appearance

• Self-trimming case eliminates the need for mounting panels or trim bezels

• Round case permits easy installation with standard sized hole saw

• Large clearance around terminal studs accept heavy gauge wire lugs

• Robust 5/16 terminals provide high torque connections

• Large lever with vertical/horizontal orientation provides indication of trip status

• Ignition protected - safe for installation aboard gasoline powered boats

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Blue Sea Systems 7035 187 Series thermal circuit breaker is designed for reliable protection and switching in demanding electrical systems. With a 25-amp capacity, this panel-mounted breaker combines circuit protection with convenient switching in a single, compact device. Its all-components meet SAE J1171 external ignition protection standards, making it safe for installation aboard gasoline-powered boats and other vehicles. The waterproof design and recessed mounting holes ensure a clean installation and long-term durability in harsh environments. The self-trimming case eliminates the need for additional mounting panels or bezels, while the round case allows easy installation using a standard-sized hole saw. Large clearance around terminal studs accommodates heavy-gauge wire lugs, and the robust 5/16-inch terminals provide secure, high-torque connections. The large lever with vertical or horizontal orientation offers clear indication of trip status, and the trip-free design prevents the breaker from being held ON during a fault condition. This thermal bi-metal blade circuit breaker is rated for a maximum of 48 volts DC and features a thermoset polyester case for durability. Suitable for a wide temperature range from -25°C to +82°C, it ensures consistent performance across various operating conditions. The breaker’s trip ratings are 5,000 amps at 12 volts DC, 3,000 amps at 24 volts DC, and 1,500 amps at 42 volts DC, providing versatile protection for different system voltages. This circuit breaker is an essential component for any electrical system requiring reliable, waterproof, and ignition-protected circuit protection with easy operation and installation features.

Features:

• Combines switching and circuit protection into a single device

• All components meet SAE J1171 external ignition protection requirements

• Clear, single lever operation

• Trip free design prevents holding the breaker ON during fault conditions

• Waterproof construction for durability in harsh environments

• Recessed mounting holes for a clean appearance

• Self-trimming case eliminates the need for mounting panels or bezels

• Round case permits easy installation with standard-sized hole saw

• Large clearance around terminal studs for heavy gauge wire lugs

• Robust 5/16-inch terminals enable high torque connections

• Large lever with vertical/horizontal orientation indicates trip status

• Ignition protected—safe for installation aboard gasoline-powered boats
