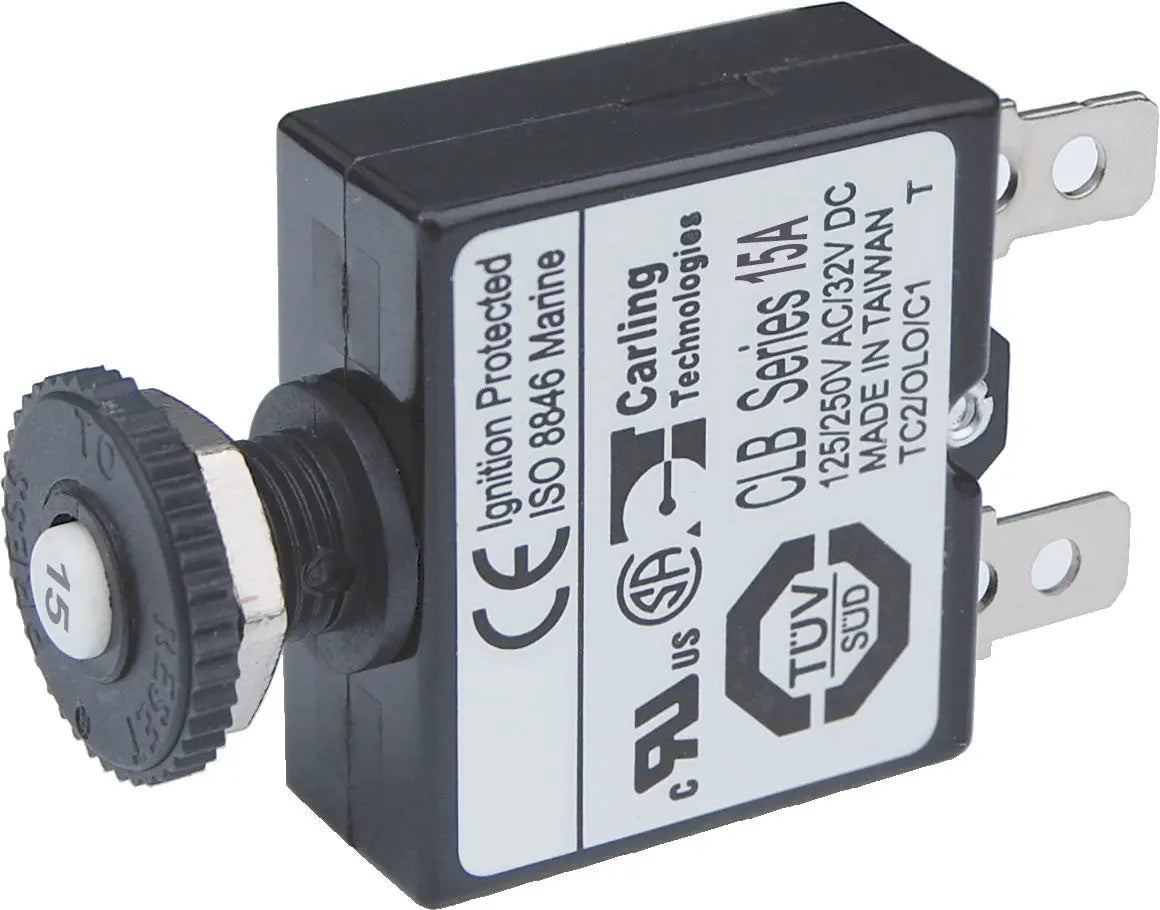

Blue Sea Systems 7056-BSS 15A Push Button Quick Connect Circuit Breaker

Blue Sea 15A Push Button Quick Connect Circuit Breaker

The Blue Sea Systems 7056-BSS is a reliable 15-amp push button resettable circuit breaker designed for marine and other demanding applications. Featuring a thermal trip mechanism, this circuit breaker provides manual reset operation with a push-to-reset button, ensuring easy control and quick recovery after trips. Its compact design allows for high-density circuit protection configurations, making it ideal for panel-mounted installations where space efficiency is essential. The quick connect terminal style facilitates straightforward wiring, compatible with 1/4 inch male quick connect terminals, streamlining installation and maintenance procedures. This breaker is rated for a maximum voltage of 32V DC and capable of interrupting up to 3000 amps at 14.7V or 2500 amps at 28V, ensuring robust protection against overloads and short circuits. The "trip-free" design prevents the breaker from being held "ON" during fault conditions, enhancing safety and system integrity. Certified as ignition protected, it is safe for installation aboard gasoline-powered boats and other marine environments. An optional waterproof boot provides additional protection in wet conditions, safeguarding the breaker from moisture and environmental exposure while also resisting discoloration and cracking. The breaker operates reliably within a temperature range of -10°C to 60°C, ensuring durability in various conditions. The model is compatible with Blue Sea WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels, making it versatile for multiple marine power management systems. Its overall design emphasizes safety, ease of use, and space-efficient circuit protection, making it an essential component for marine electrical systems and other applications requiring dependable circuit interruption and reset functionality.

Features:

• Branch circuit breaker suitable for 24-hour circuit protection

• Quick connect terminal style for easy wiring

• Compact design enables high-density configurations

• Push-to-reset operation for straightforward control

• "Trip free" design prevents holding the breaker "ON" during faults

• Ignition protected, safe for marine gasoline-powered vessels

• Optional waterproof boot for wet environment protection

• Rated for 15 amps and up to 32V DC

• Interrupt capacity of 3000A at 14.7V and 2500A at 28V

• Operates reliably between -10°C and 60°C
